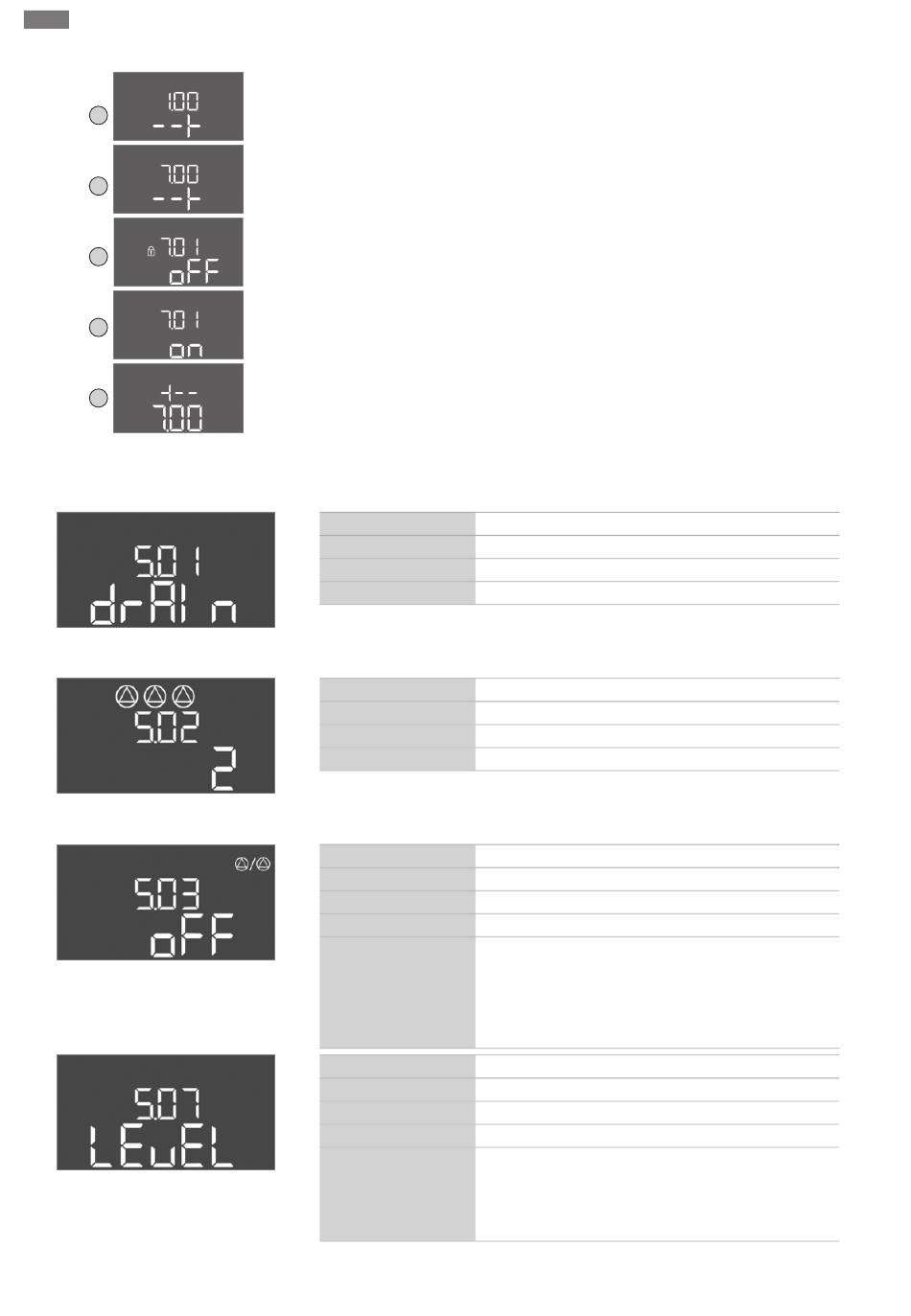

Fig. 31: Parameter input enabled
Fig. 32: Menu 5.01
Fig. 33: Menu 5.02
Fig. 34: Menu 5.03
Fig. 35: Menu 5.07
80
All manuals and user guides at all-guides.com
Commissioning
1. Press the operating button for 3 s.
⇒ Menu item 1.00 appears
2. Turn the operating button until menu 7 appears.
3. Press the operating button.
⇒ Menu 7.01 appears.
4. Press the operating button.
5. Change value to "on": Turn the operating button.
6. Save value: Press the operating button.
⇒ The menu is enabled and can be changed.
7. Turn the operating button until the end of menu 7 appears.
8. Press the operating button.
⇒ Back to the main menu level.
▶ Start initial configuration:
– Menu 5: Basic settings
– Menu 1: Switch-on/off values
– Menu 2: Field bus connection (if applicable)
- Menu 3: Enable pumps
Menu 5: Basic settings
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Explanation
Menu no.
Description
Value range
Factory setting
Explanation
5.01
Operating mode
fill (fill), drain (drain)
drain
5.02
Number of connected pumps
1 ... 3
2
5.03
Standby pump
on, off
off
One pump can be used as the standby pump. This pump is
not activated in normal operation. The standby pump is
only activated in the event of pump failure due to a fault.
The standby pump is subject to standstill monitoring. The
standby pump is therefore activated during pump cycling
and pump kick.
5.07
Signal transmitter for level measurement
Float, Level, Bell, Opt01
Level
Definition of the signal transmitters for level measurement:
- Float = float switch
- Level = level sensor
- Bell = dynamic pressure bell
- Opt01 = NW16 level monitor
WILO SE 2018-12
