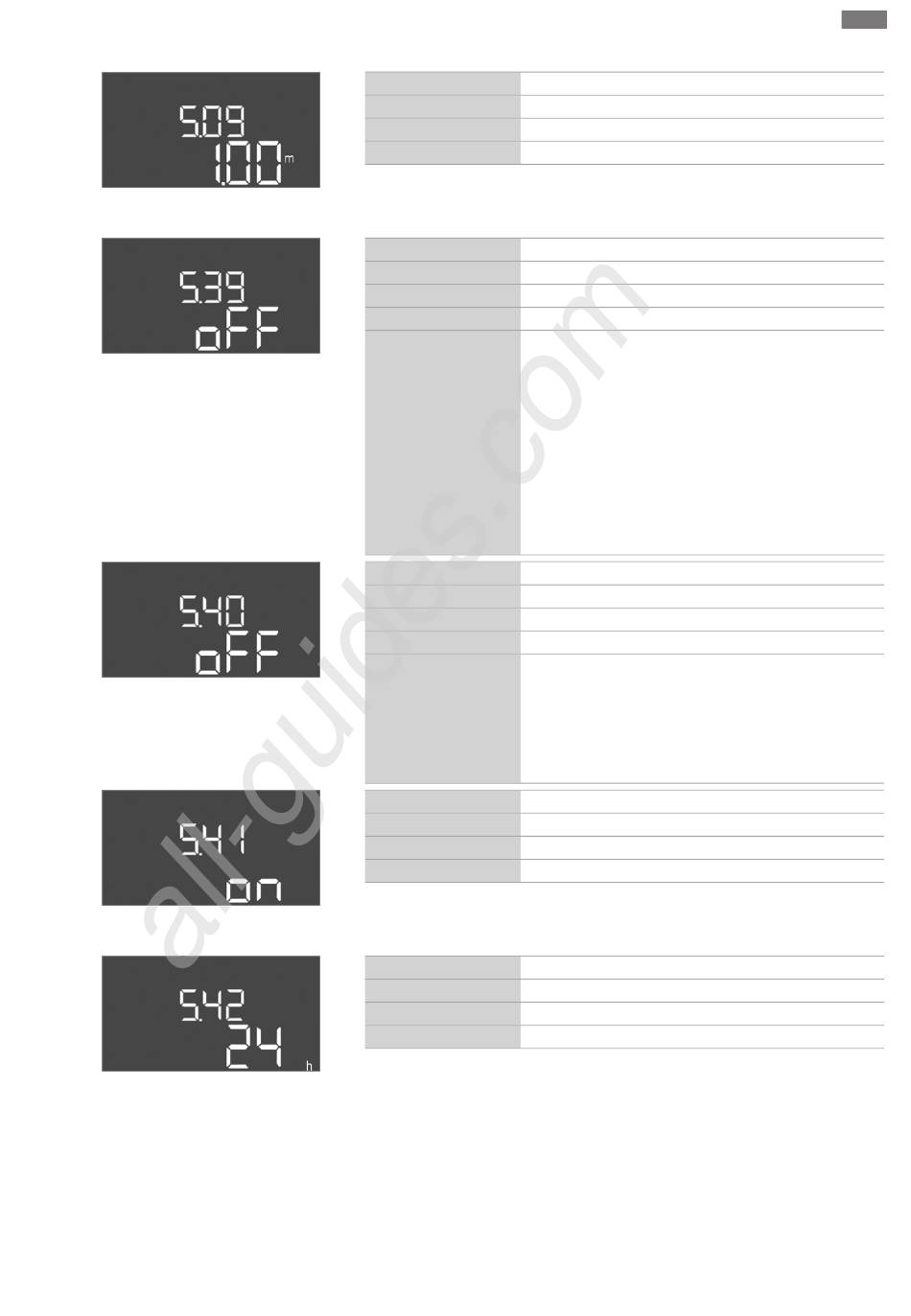

Fig. 36: Menu 5.09
Fig. 37: Menu 5.39
Fig. 38: Menu 5.40
Fig. 39: Menu 5.41
Fig. 40: Menu 5.42
Installation and operating instructions Wilo-Control EC-L
All manuals and user guides at all-guides.com
Commissioning
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Explanation
Menu no.
Description
Value range
Factory setting
Explanation
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
5.09
Sensor measuring range
0.25 ... 12.5 m
1.0 m
5.39
Alarm signal with active "Extern OFF" input
off, on
off
The pumps can be switched off using a separate signal
transmitter via the "Extern OFF" input. This function over-
rides all other switching points and all pumps are switched
off.
In the "fill" operating mode it can be determined how the
alarm signal occurs in the event of an active input:
– "off": The "Extern OFF" symbol appears on the LCD dis-
play
– "on": The "Extern OFF" symbol and the error code "E068"
appears on the LCD display.
In the "drain" operating mode, the factory setting cannot
be changed!
5.40
Function "pump kick" On/Off
off, on
off
To prevent longer standstill times for the connected
pumps, a periodical test run can be performed (pump kick
function). If the pump kick function is activated, the fol-
lowing menu items can be set:
– Menu 5.41: Pump kick permitted in Extern OFF
– Menu 5.42: Pump kick interval
– Menu 5.43: Pump kick-running time
5.41
"Pump kick" permitted in Extern OFF
off, on
on
5.42
"Pump kick interval"
1 ... 336 h
24 h
