Wilo Control EC-L Einbau- Und Betriebsanleitung Seite 83

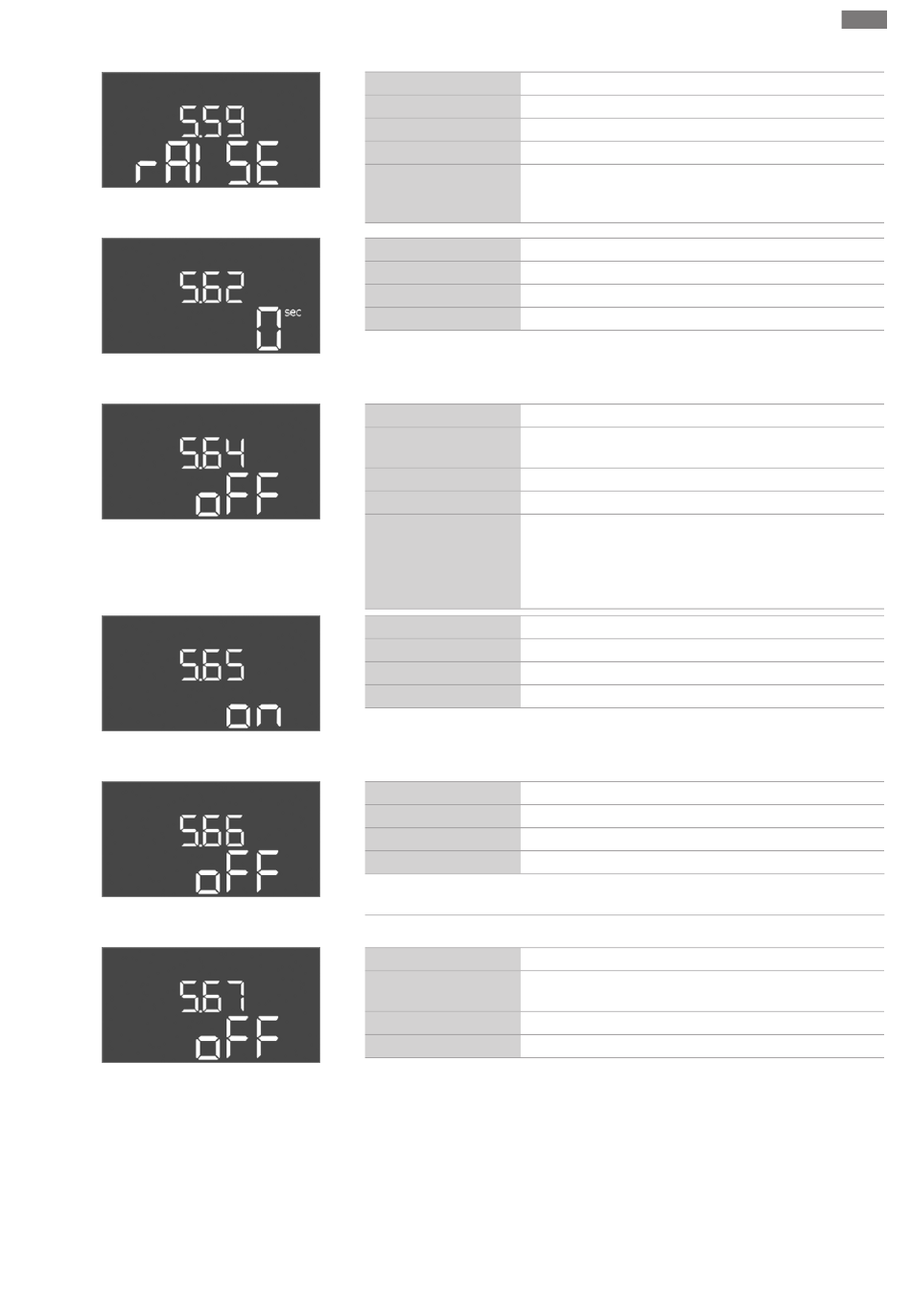

Fig. 47: Menu 5.59
Fig. 48: Menu 5.62
Fig. 49: Menu 5.64
Fig. 50: Menu 5.65
Fig. 51: Menu 5.66
Fig. 52: Menu 5.67
Installation and operating instructions Wilo-Control EC-L
All manuals and user guides at all-guides.com
Commissioning
Menu no.
Description
Value range
Factory setting
Explanation
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Explanation
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
NOTICE! Alarm in the event of interrupted power supply: To switch off the internal
buzzer if there is a built-in rechargeable battery, remove the battery!
Menu no.
Description
Value range
Factory setting
5.59
Collective fault signal (SSM) function
fall, raise
raise
"fall": The relay is deactivated. Optionally, this function can
be used for controlling the mains voltage supply.
"raise": The relay is activated.
5.62
Dry-running protection delay
0 ... 180 s
0 s
5.64
Ex-mode operation On/Off (only available in the "drain"
operating mode!)
on, off
off
If pumps and signal transmitters are connected in explosive
atmospheres, additional requirements must be adhered to.
DANGER! Risk of explosion due to incorrect configuration
of the system! Observe the section on explosive atmo-
spheres in the appendix!
5.65
Automatic resetting of error "Dry run"
on, off
on
5.66
Integrated buzzer On/Off
on, off
off
5.67
Output (24 V DC, max. 4 VA) for an external signalling unit
On/Off
off, error
off
