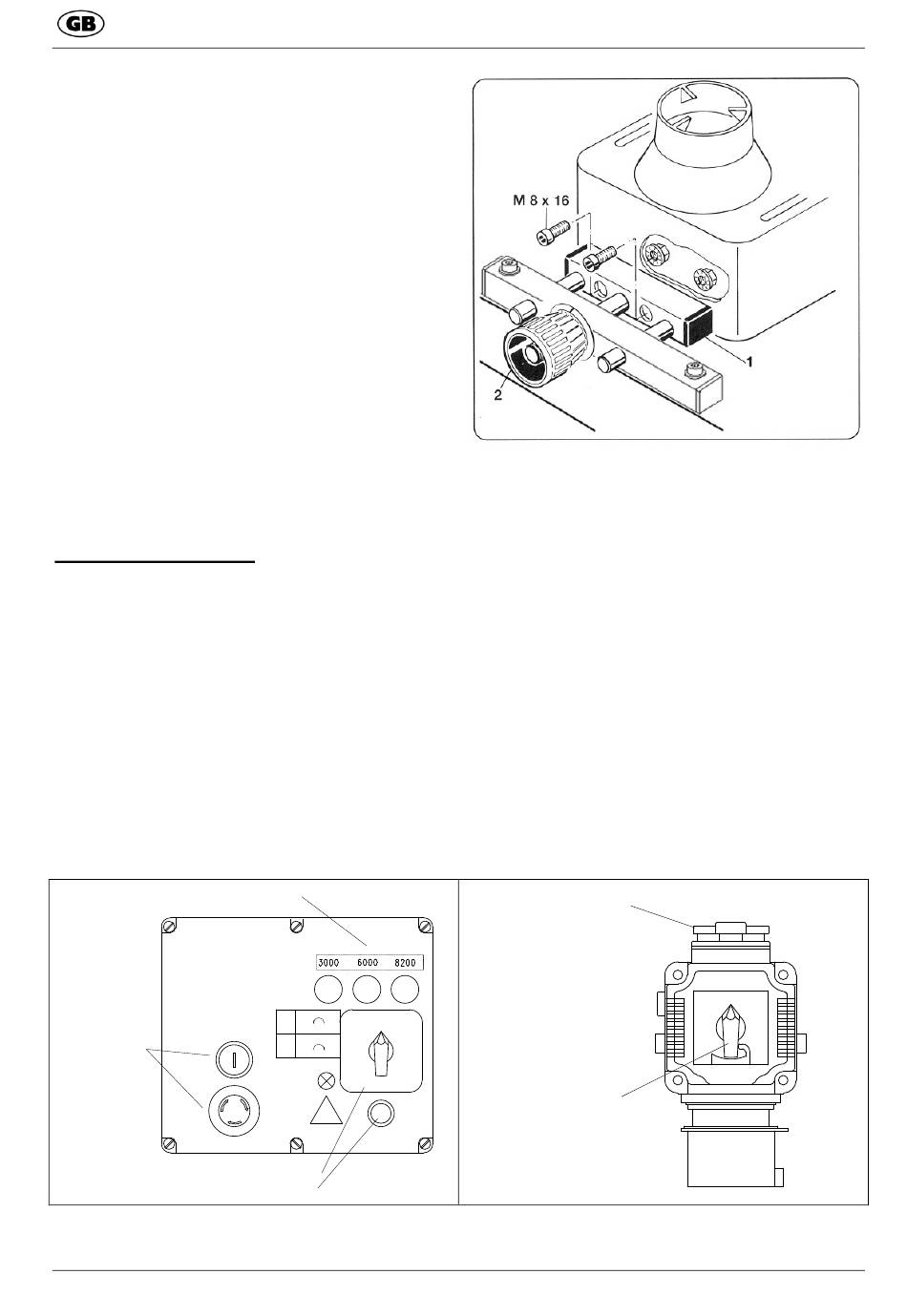

Fig. "E"
Mounting the curved moulding fence to the bench
top
Fasten the curved moulding fence to the bench top
using two cheese-head screws and washers each.

Electrical connection

Fig. "F"
• Connect the machine to the power supply with the CEE plug. The cable must be protected by a 16 Amps
fuse.
• Move the main switch on the CEE plug to "I" position.
The automatic feeder can be connected to the additional socket.
The rpm pilot lamps show the speed selected.
With the help of the reversible switch, the direction of spindle rotation can be switched over from left to
right-hand operation. In case of right-hand operation, the yellow pilot lamp lights up.
• On pressing the green button on the operating switch, the spindle starts running.
For turning off, press the red mushroom button. The moulding spindle is braked within ten seconds.
When switching off the spindle on the main switch, the braking function is inactivated!
• Move the main switch to "O" position to cut the motor from the power supply.
Fig. "F"
Drehzahlanzeigelampen
Betriebsschalter
grüner Sicherheitsknopf
1902104852
1
1
2
2
!
Achtung
Rechtslauf
Wendeschalter
Fig. "E"
Zusatzsteckdose
Hauptschalter
Documentation
0
I
