Erecting and adjusting

Height compensation

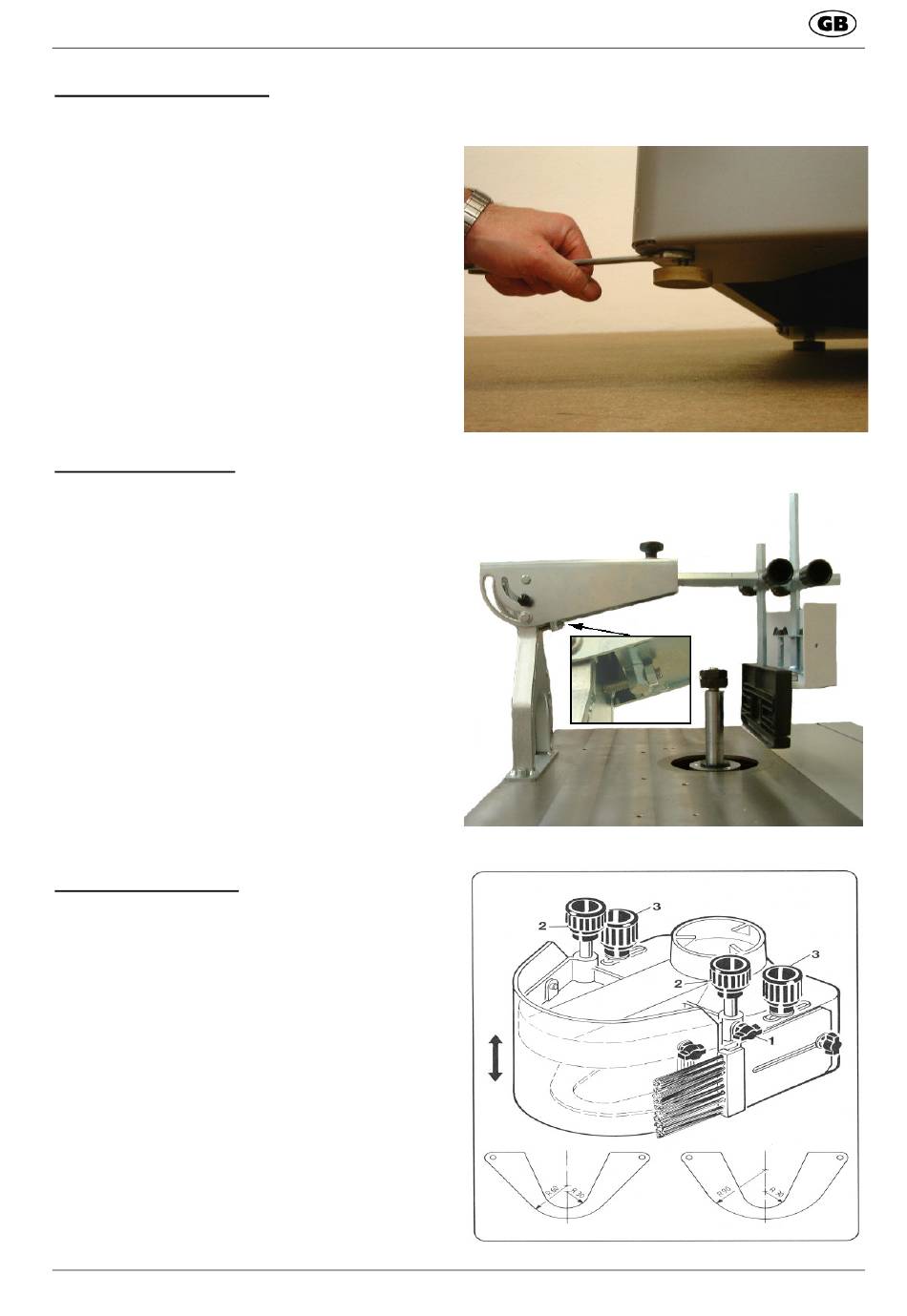

Fig. "A"
The machine stands on four adjustable rubber feet.
Compensate an unlevel ground.
Release the lower hexagon nuts with a wrench and
screw the rubber feet in or out, as required.
Retighten the hexagon nuts and counter them.

Safety pressure device

Fig. "C"
Fasten the safety pressure device on the bench top
using two cheese-head screws and washers (1).
Set the safety pressure device at a right angle with
regard to the bench top using the set screw (2).

Curved moulding fence

Fig. "D"
Curved fence plates
The R 90 curved fence plate is mounted.
The R 60 curved fence plate must be exchanged for
the R 90 plate, if required. Release wing nut (1) at left
and right-hand side, unscrew the handles (2).
