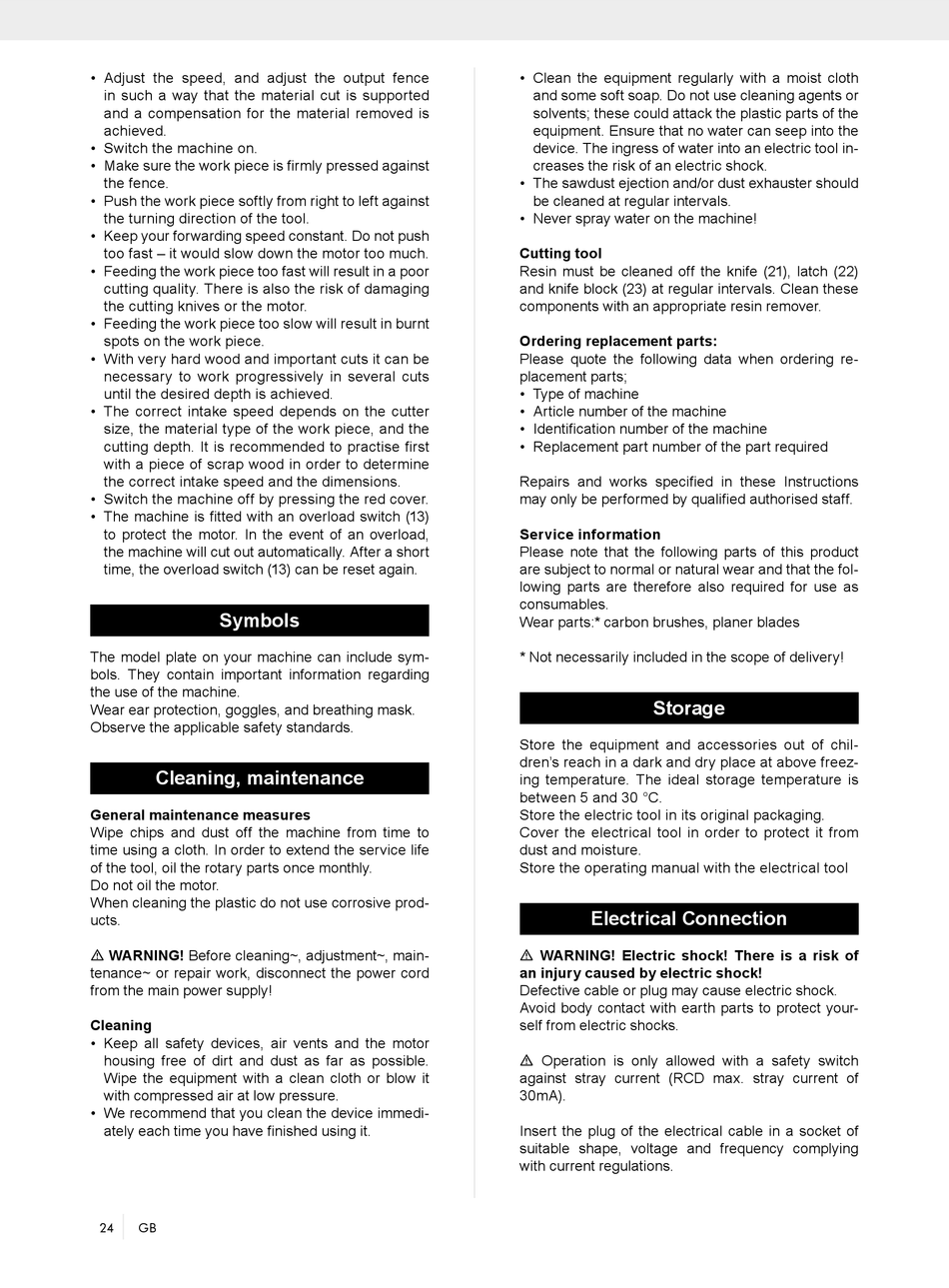

• Adjust the speed, and adjust the output fence
in such a way that the material cut is supported
and a compensation for the material removed is
achieved.
• Switch the machine on.
• Make sure the work piece is firmly pressed against
the fence.
• Push the work piece softly from right to left against
the turning direction of the tool.
• Keep your forwarding speed constant. Do not push
too fast – it would slow down the motor too much.
• Feeding the work piece too fast will result in a poor
cutting quality. There is also the risk of damaging
the cutting knives or the motor.
• Feeding the work piece too slow will result in burnt
spots on the work piece.
• With very hard wood and important cuts it can be
necessary to work progressively in several cuts
until the desired depth is achieved.
• The correct intake speed depends on the cutter
size, the material type of the work piece, and the
cutting depth. It is recommended to practise first
with a piece of scrap wood in order to determine
the correct intake speed and the dimensions.
• Switch the machine off by pressing the red cover.
• The machine is fitted with an overload switch (13)
to protect the motor. In the event of an overload,
the machine will cut out automatically. After a short
time, the overload switch (13) can be reset again.
Symbols
The model plate on your machine can include sym-
bols. They contain important information regarding
the use of the machine.
Wear ear protection, goggles, and breathing mask.
Observe the applicable safety standards.
Cleaning, maintenance
General maintenance measures
Wipe chips and dust off the machine from time to
time using a cloth. In order to extend the service life
of the tool, oil the rotary parts once monthly.
Do not oil the motor.
When cleaning the plastic do not use corrosive prod-
ucts.
m WARNING! Before cleaning~, adjustment~, main-
tenance~ or repair work, disconnect the power cord
from the main power supply!
Cleaning
• Keep all safety devices, air vents and the motor
housing free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it
with compressed air at low pressure.
• We recommend that you clean the device immedi-
ately each time you have finished using it.
24 GB
• Clean the equipment regularly with a moist cloth
and some soft soap. Do not use cleaning agents or
solvents; these could attack the plastic parts of the
equipment. Ensure that no water can seep into the
device. The ingress of water into an electric tool in-
creases the risk of an electric shock.
• The sawdust ejection and/or dust exhauster should
be cleaned at regular intervals.
• Never spray water on the machine!
Cutting tool
Resin must be cleaned off the knife (21), latch (22)
and knife block (23) at regular intervals. Clean these
components with an appropriate resin remover.
Ordering replacement parts:
Please quote the following data when ordering re-
placement parts;
• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
Repairs and works specified in these Instructions
may only be performed by qualified authorised staff.
Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the fol-
lowing parts are therefore also required for use as
consumables.
Wear parts:* carbon brushes, planer blades
* Not necessarily included in the scope of delivery!
Storage
Store the equipment and accessories out of chil-
dren's reach in a dark and dry place at above freez-
ing temperature. The ideal storage temperature is
between 5 and 30 °C.
Store the electric tool in its original packaging.
Cover the electrical tool in order to protect it from
dust and moisture.
Store the operating manual with the electrical tool

Electrical Connection

m WARNING! Electric shock! There is a risk of
an injury caused by electric shock!
Defective cable or plug may cause electric shock.
Avoid body contact with earth parts to protect your-
self from electric shocks.
m Operation is only allowed with a safety switch
against stray current (RCD max. stray current of
30mA).
Insert the plug of the electrical cable in a socket of
suitable shape, voltage and frequency complying
with current regulations.
