2. How to use
EN
Value Description
Operation without load shedding
0
relay, factory setting
Operation with normal
1
load shedding relay
Operation with sensitive
2
load shedding relay

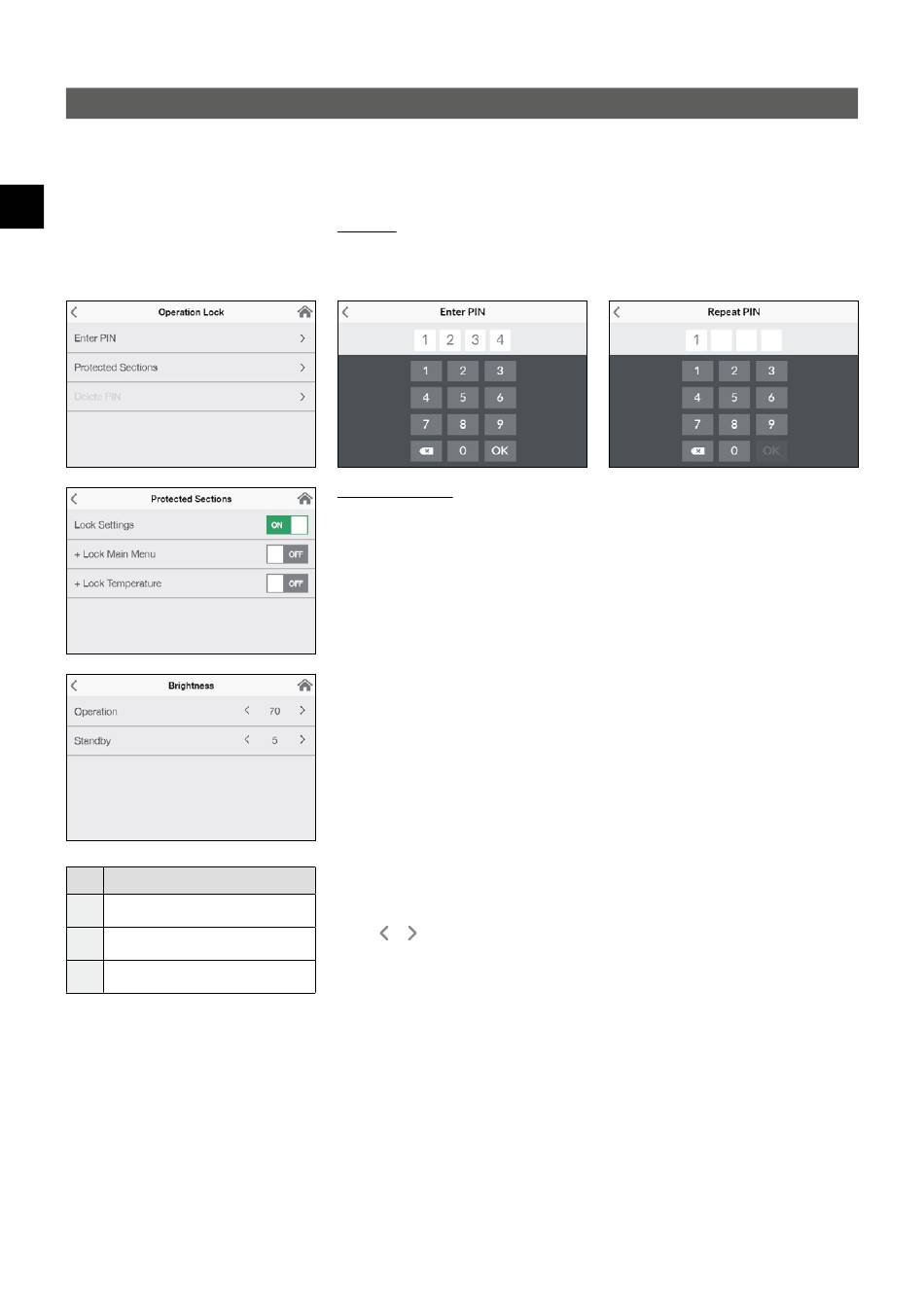

Operation Lock: Secure your settings with a four­digit PIN.
Note: The operation lock can only be deactivated with the correct PIN under
"Protected Sections" or under "Delete PIN". If you should forget your PIN, please
contact after-sales Services.
Enter PIN: Numbers from 0 to 9 can be selected via the keypad. If you have selected
four digits, confirm by tapping on "OK". The PIN must then be entered again and con­
firmed for security reasons.
If both entries match, you access the section "Protected Sections".
Protected Sections: Select the areas for a PIN lock.
• Lock Settings: Automatically active as soon as a password has been generated.
Users can only access the settings menu with a PIN. Deactivating it deletes the cur­
rent PIN.
• + Lock Main Menu: Users can only access the main menu with a PIN
• + Lock Temperature: The outlet temperature is set to the current value and can only
be changed with a PIN. User profiles, applications and Eco mode can also only be
changed with a PIN.
Brightness: Reduce the display brightness e.g. to safe energy. The brightness can be
set separately for operation screen and standby mode.
• Operation 5­100%
• Standby 0­100% (0% = display OFF)
The setting of the standby mode will be activated after 1.5 minutes.
Sound: Activate / deactivate operating sounds.
Note: Alarm signals and instruction sounds can not be disabled.
Load Shedding (Expert Mode): If further three­phase appliances are connected, a
load shedding relay designed for electronic instantaneous water heaters (CLAGE no.
82250) can be connected to phase conductor L2. This relay ensures the operation of
the water heater by switching off other consumers until the end of heating operation.
Tap on or and hold for two seconds to set a value of 0, 1 or 2.
Operating mode 1 must be selected first, thus to check the correct operation of the
load shedding relay at low appliance output (35 degree celsius setpoint and low water
flow rate). Mode 2 must be selected if the load shedding relay flickers.
Thermal treatment: With this function, you can support a thermal treatment of your
appliance and the following pipeline, including the tap. A thermal disinfection accord­
ing to the accepted rules of technology is not replaced.
• Tap OK to start the treatment cycle and the outlet temperature is set to 70 °C. The
function is disabled if the appliance is connected to a shower.
• Draw hot water for at least three minutes to heat the pipes to the tap completely.
• A change of the temperature or 30 sec without water flow terminates the treat­
ment cycle.
• The number as well as the accumulated duration and the water amount of all ther­
mal treatments will be saved and can be viewed under "Info".
Notes:
