6. Direct connection

Note: Fasten the screw nuts with caution, to avoid damage to the valves or the piping
system.

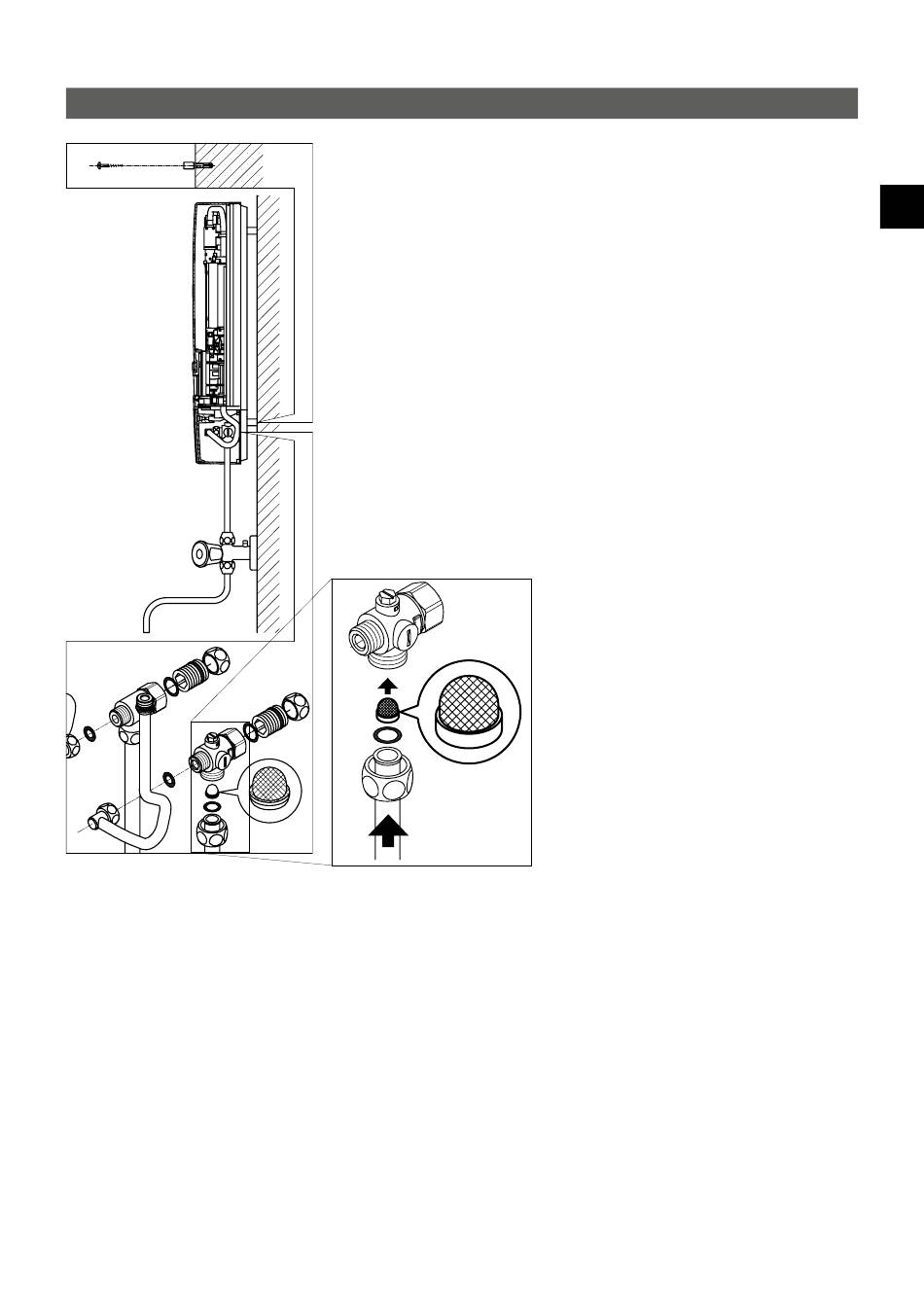

For direct connection, the two ½ inch screw­in nipples and the ½ inch seals must be
screwed into the ½ inch union nuts of the hot­water and cold­water connectors. The
EN
two ½ inch caps of the side outlets of the hot­water and cold­water connectors must
be removed and screwed onto the open end of the screw­in nipples. The hot­water and
cold­water connectors must then be screwed into the / inch union nut of the appli­
3
8
ance inlet and outlet pipe, together with the / inch seals.
3
8
For direct connection, it may be advisable to mount the appliance at a distance as illus­
trated alongside, using the spacer sleeves supplied. The two fixing holes near the lower
pipe connections are also to be professionally fixed with 6 mm dowels and screws.
The flared end of the pipes must be screwed into the ½ inch side outlets of the hot­
water and cold­water connectors with ½ inch union nuts and ½ inch seals. The holes
required for the pipes must then be opened of the housing with the aid of a blunt
implement.
In case of direct connection please note: Put the strainer into the cold water connec-
tion!
