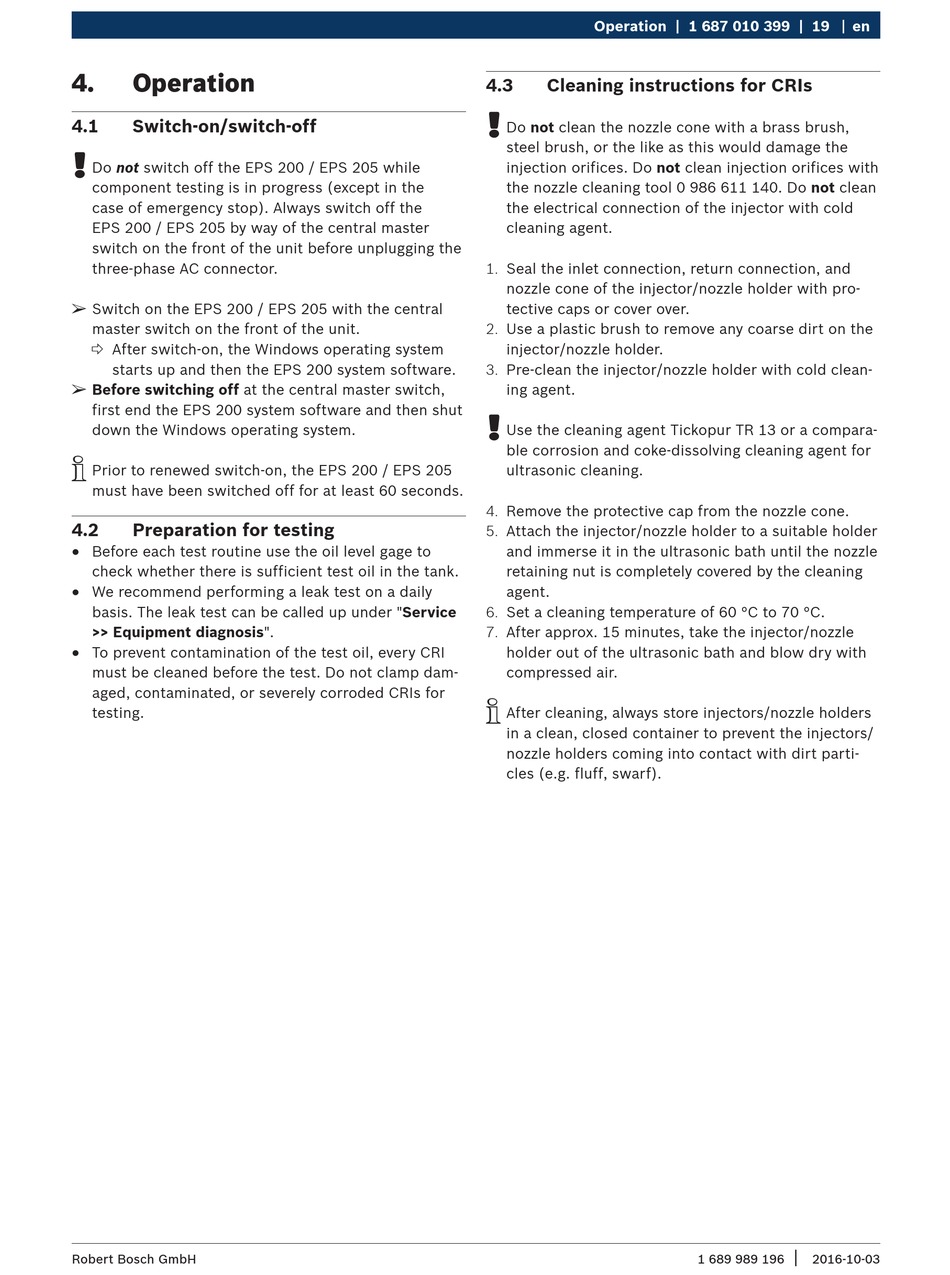

4.

Operation

4.1

Switch-on/switch-off

!
Do not switch off the EPS 200 / EPS 205 while
component testing is in progress (except in the
case of emergency stop). Always switch off the
EPS 200 / EPS 205 by way of the central master
switch on the front of the unit before unplugging the
three-phase AC connector.
¶
Switch on the EPS 200 / EPS 205 with the central
master switch on the front of the unit.
 After switch-on, the Windows operating system
starts up and then the EPS 200 system software.
¶
Before switching off at the central master switch,
first end the EPS 200 system software and then shut
down the Windows operating system.
i
Prior to renewed switch-on, the EPS 200 / EPS 205
must have been switched off for at least 60 seconds.
4.2

Preparation for testing

R
Before each test routine use the oil level gage to
check whether there is sufficient test oil in the tank.
R
We recommend performing a leak test on a daily
basis. The leak test can be called up under "Service
>> Equipment diagnosis".
R
To prevent contamination of the test oil, every CRI
must be cleaned before the test. Do not clamp dam-
aged, contaminated, or severely corroded CRIs for
testing.
Robert Bosch GmbH
Operation | 1 687 010 399 | 19
4.3

Cleaning instructions for CRIs

!
Do not clean the nozzle cone with a brass brush,
steel brush, or the like as this would damage the
injection orifices. Do not clean injection orifices with
the nozzle cleaning tool 0 986 611 140. Do not clean
the electrical connection of the injector with cold
cleaning agent.
1. Seal the inlet connection, return connection, and
nozzle cone of the injector/nozzle holder with pro-
tective caps or cover over.
2. Use a plastic brush to remove any coarse dirt on the
injector/nozzle holder.
3. Pre-clean the injector/nozzle holder with cold clean-
ing agent.
!
Use the cleaning agent Tickopur TR 13 or a compara-
ble corrosion and coke-dissolving cleaning agent for
ultrasonic cleaning.
4. Remove the protective cap from the nozzle cone.
5. Attach the injector/nozzle holder to a suitable holder
and immerse it in the ultrasonic bath until the nozzle
retaining nut is completely covered by the cleaning
agent.
6. Set a cleaning temperature of 60 °C to 70 °C.
7. After approx. 15 minutes, take the injector/nozzle
holder out of the ultrasonic bath and blow dry with
compressed air.
i
After cleaning, always store injectors/nozzle holders
in a clean, closed container to prevent the injectors/
nozzle holders coming into contact with dirt parti-
cles (e.g. fluff, swarf).
