OSCILLOSCOPE KIT _______________________________________________________________________

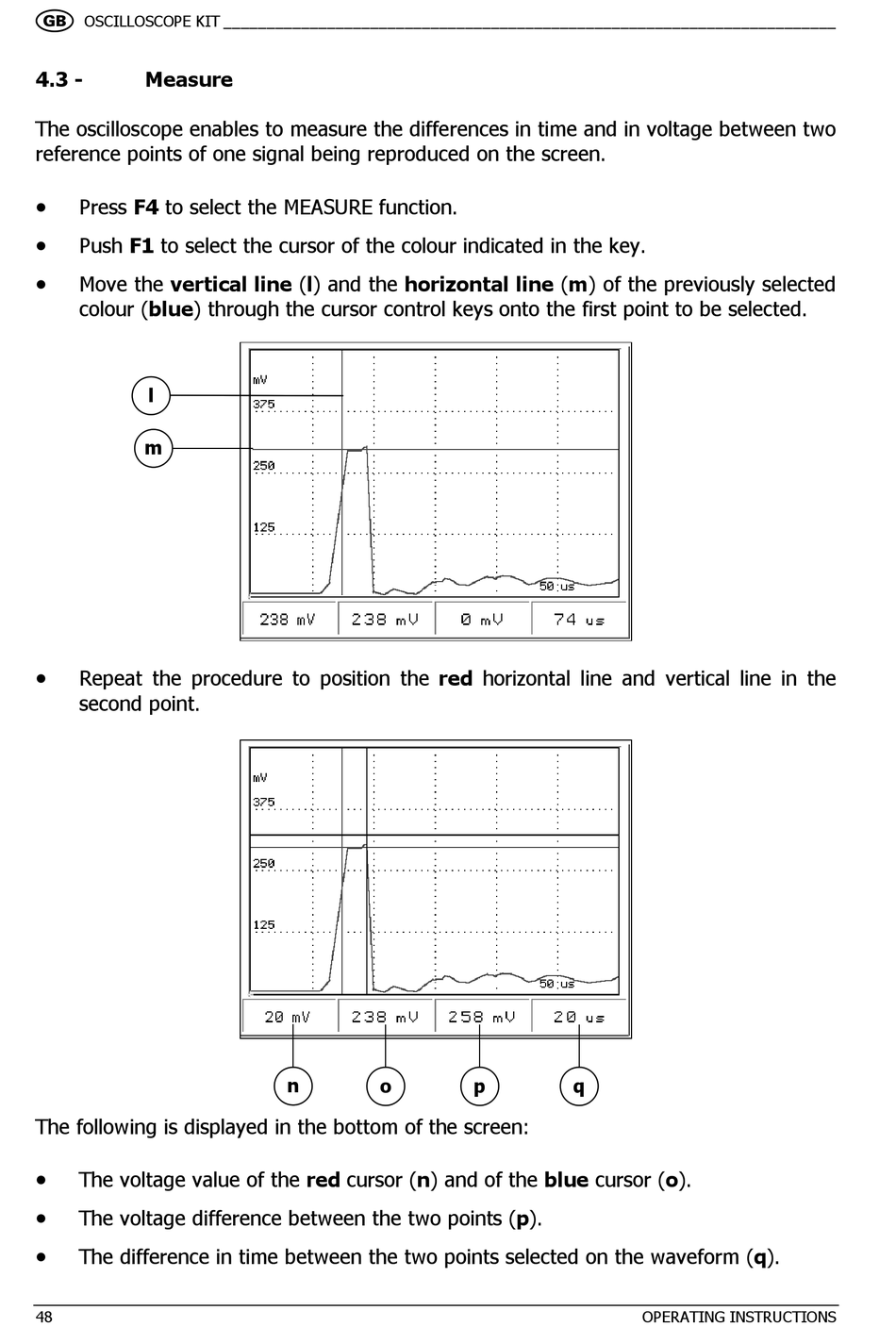

4.3 -

Measure

The oscilloscope enables to measure the differences in time and in voltage between two
reference points of one signal being reproduced on the screen.
•
Press F4 to select the MEASURE function.
•
Push F1 to select the cursor of the colour indicated in the key.
•
Move the vertical line (l) and the horizontal line (m) of the previously selected
colour (blue) through the cursor control keys onto the first point to be selected.
l
m
•
Repeat the procedure to position the red horizontal line and vertical line in the
second point.
The following is displayed in the bottom of the screen:
•
The voltage value of the red cursor (n) and of the blue cursor (o).
•
The voltage difference between the two points (p).
•
The difference in time between the two points selected on the waveform (q).
48
n
o p q
