h. Trigger: This function allows to stabilize the display of the wave form in question,
synchronizing it on rise front.
i. Stop: This function allows stopping the acquisition and printing more quickly..
j. Exit: to quit.
•

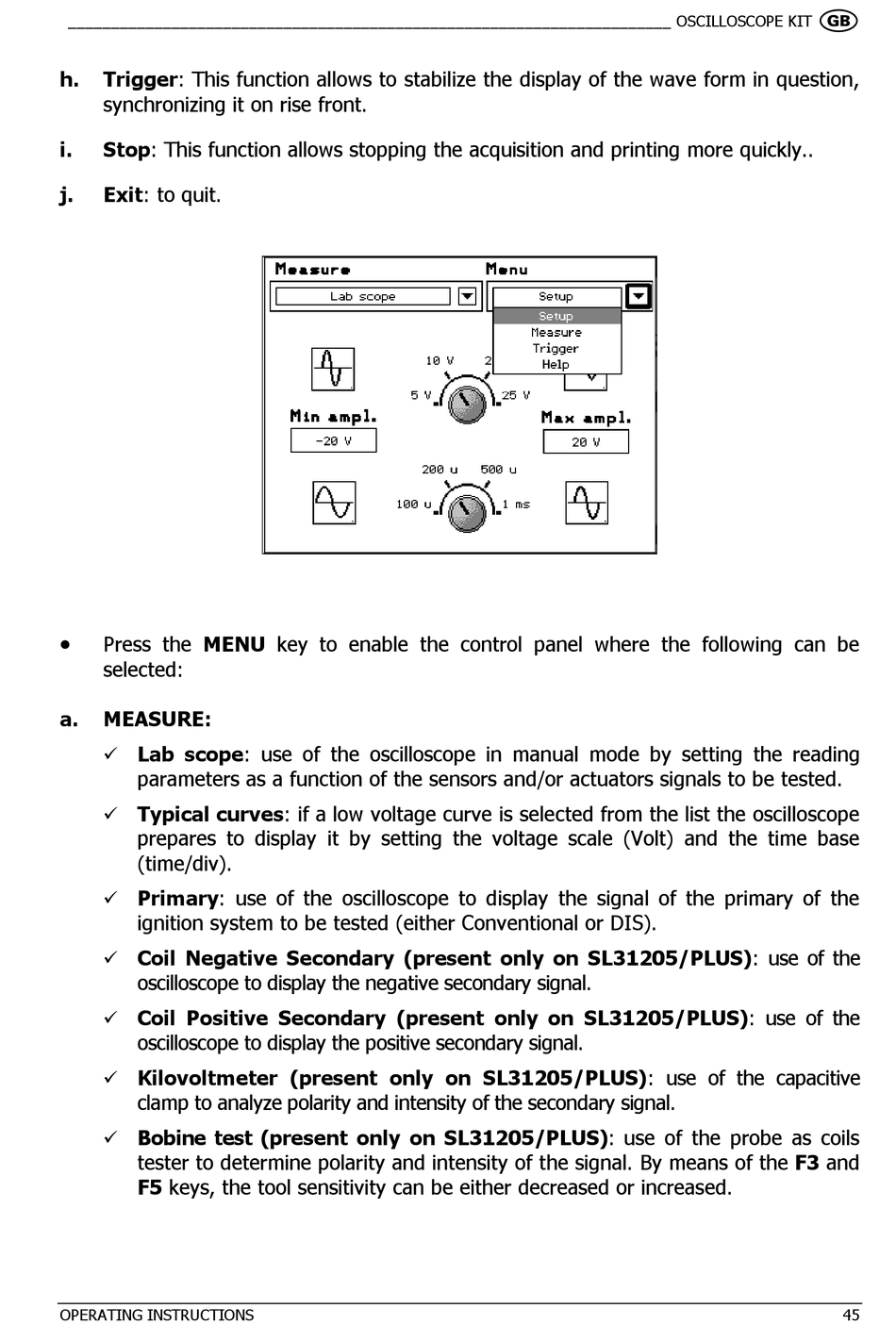

Press the MENU key to enable the control panel where the following can be
selected:
a. MEASURE:
Lab scope: use of the oscilloscope in manual mode by setting the reading
parameters as a function of the sensors and/or actuators signals to be tested.
Typical curves: if a low voltage curve is selected from the list the oscilloscope
prepares to display it by setting the voltage scale (Volt) and the time base
(time/div).
Primary: use of the oscilloscope to display the signal of the primary of the
ignition system to be tested (either Conventional or DIS).
Coil Negative Secondary (present only on SL31205/PLUS): use of the
oscilloscope to display the negative secondary signal.
Coil Positive Secondary (present only on SL31205/PLUS): use of the
oscilloscope to display the positive secondary signal.
Kilovoltmeter (present only on SL31205/PLUS): use of the capacitive
clamp to analyze polarity and intensity of the secondary signal.
Bobine test (present only on SL31205/PLUS): use of the probe as coils
tester to determine polarity and intensity of the signal. By means of the F3 and
F5 keys, the tool sensitivity can be either decreased or increased.
