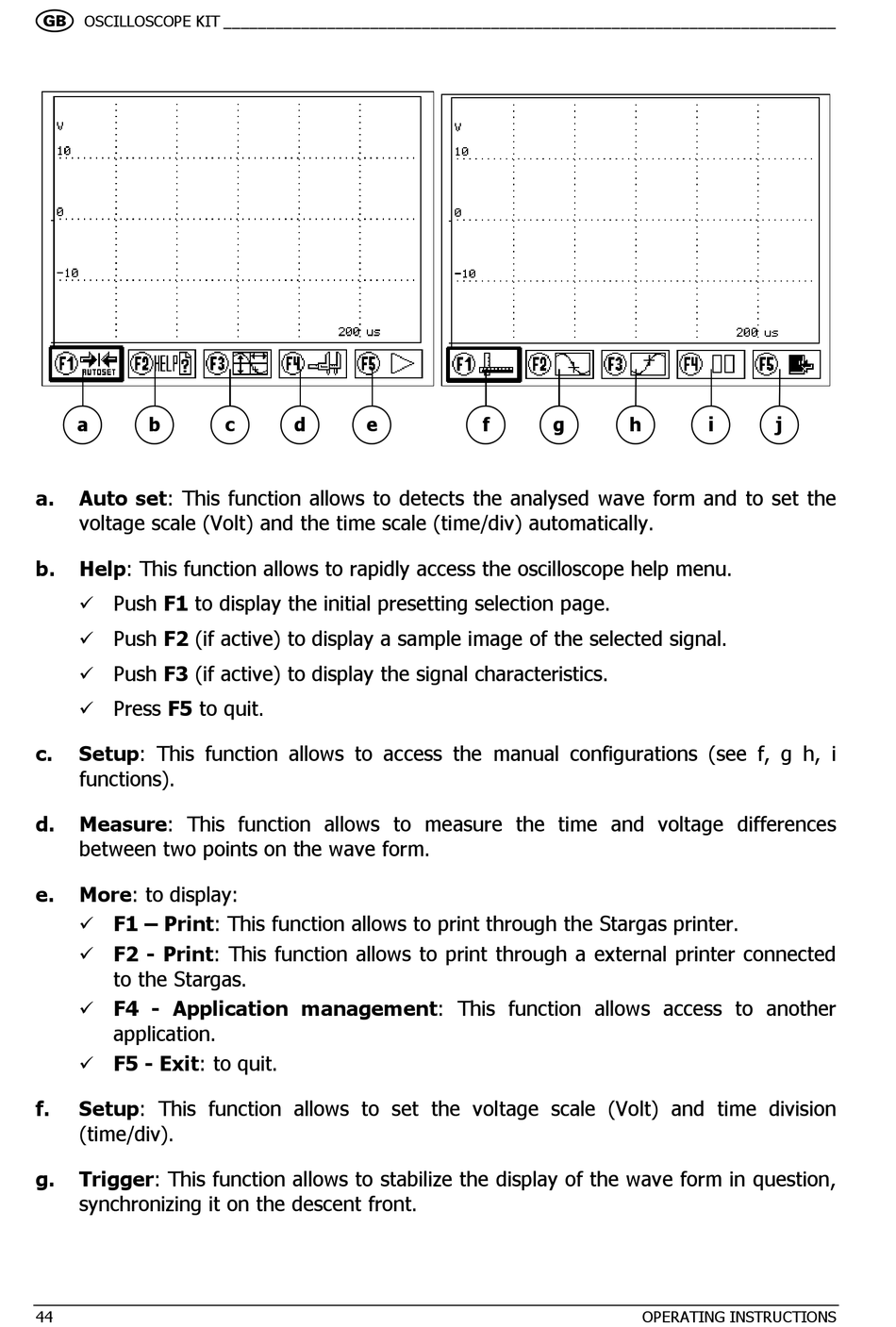

OSCILLOSCOPE KIT _______________________________________________________________________
a
b
a.
Auto set: This function allows to detects the analysed wave form and to set the
voltage scale (Volt) and the time scale (time/div) automatically.
b.
Help: This function allows to rapidly access the oscilloscope help menu.
Push F1 to display the initial presetting selection page.
Push F2 (if active) to display a sample image of the selected signal.
Push F3 (if active) to display the signal characteristics.
Press F5 to quit.
c.
Setup: This function allows to access the manual configurations (see f, g h, i
functions).
d.
Measure: This function allows to measure the time and voltage differences
between two points on the wave form.
e.
More: to display:
F1 – Print: This function allows to print through the Stargas printer.
F2 - Print: This function allows to print through a external printer connected
to the Stargas.
F4 - Application management: This function allows access to another
application.
F5 - Exit: to quit.
f.
Setup: This function allows to set the voltage scale (Volt) and time division
(time/div).
g.
Trigger: This function allows to stabilize the display of the wave form in question,
synchronizing it on the descent front.
44
c
d
e
f
g
h
OPERATING INSTRUCTIONS
