3.2.2 Access by name via drop-down menus

The menus are selected via their specific name. The user accesses menu selection via the main menu, by pressing
button + or –.
The menu selection pages contains all the names of menus accessible, one of which is highlighted with a bar (see
Figure 10). The buttons + and - can be used to move the highlighter bar to the menu required, which is then entered
by pressing SET.
The menus available are MAIN, USER, and MONITOR; after access to these, a fourth FULL MENU is displayed, to
enable full display of the menus selected. On selection of EXTENDED MENU a pop-up window is displayed,
requesting entry of a PASSWORD. The PASSWORD is the same as the key combination used for direct access and
enables the user to expand display of the menus from the password-protected menu to all those with lower priority.
The menu order is: User, Monitor, Setpoint, Manual, Installer, Technical Assistance.
On entry of a password, the unlocked menus remain available for 15 minutes or until disabled manually by means of
the menu command "Hide advanced menus" which appears on selection of menus after entry of the password.
Figure 11 shows the functional scheme for menu selection.
The centre of the page shows the menus; the user can access these from the right using the button combinations, or
from the left by means of the drop-down menu selection system.
ENGLISH
Table 15: Menu structure
Modification of multi inverter unit parameters
Series of sensitive parameters. These parameters must be aligned to enable start-up
of the multi-inverter system. Modification of one of these parameters on any inverter
will automatically align all other inverters without the need for any command.
Parameters that enable facilitated alignment from a single inverter, transferring data to
all others. It is admissible that these differ between inverters.
Series of parameters that can be aligned in broadcast mode by one inverter only.
Read-only parameters.

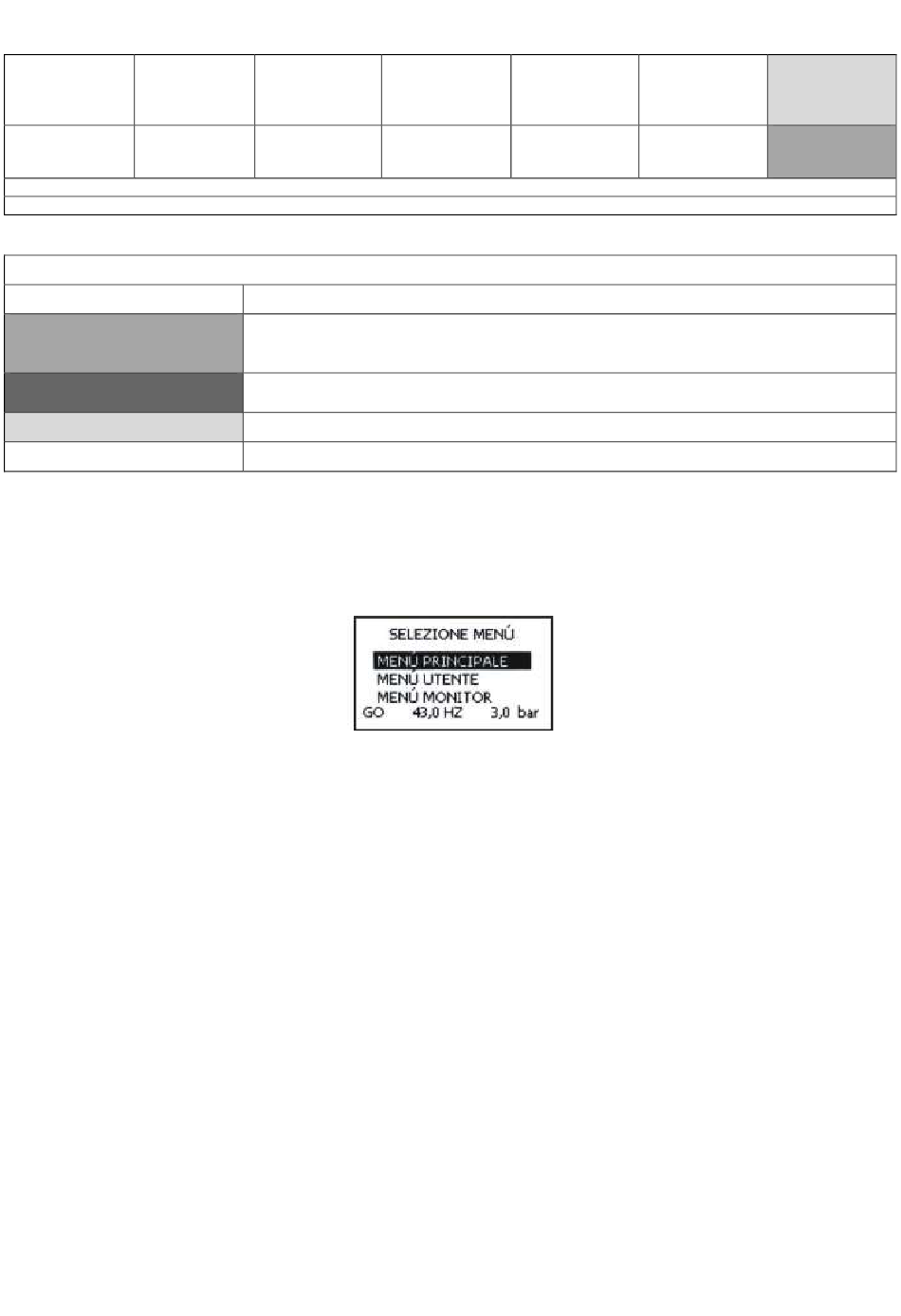

Figure 12: Drop-down menu selection
Key
70
RF
Reset
fault & warning
PW
Change
Password
