When pressed for a longer interval, buttons +/- enable automatic increase/decrease of the selected parameter. If
button +/- is pressed for more than 3 seconds, the automatic increase/decrease speed is increased.
When the button + or – is pressed, the selected value is modified and saved immediately on the
permanent memory (EEprom). Unit shutdown in this phase, even if inadvertent, does not cause loss of the
set parameter.
The SET button is only used to exit the current menu and is not used to save any changes. Only in some
special cases described in 6 some values are implemented by pressing "SET" or "MODE".
You can leave any menu page and return to the main page in 2 ways:

by pressing the [SET] key
 by timeout, once 5 min have passed since the last time a key was pressed.
3.1 Menus
The complete structure of all menus and relative items is shown in Table 14.
3.2 Access to menus
From all the menus you can access the other menus by a combination of keys.
From the main menu you can also access the other menus from the drop-down menu.

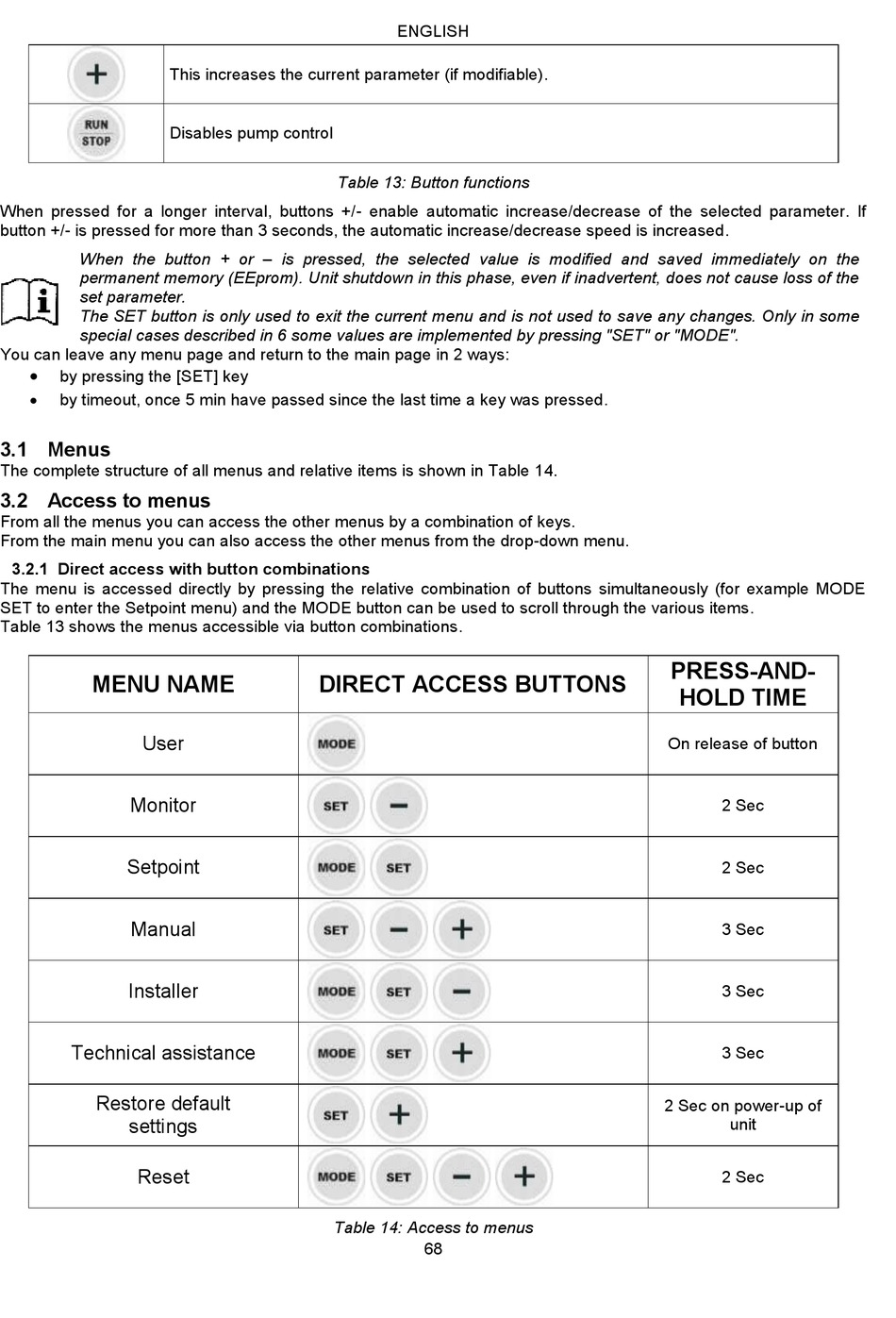

3.2.1 Direct access with button combinations

The menu is accessed directly by pressing the relative combination of buttons simultaneously (for example MODE
SET to enter the Setpoint menu) and the MODE button can be used to scroll through the various items.
Table 13 shows the menus accessible via button combinations.
MENU NAME
User
Monitor
Setpoint
Manual
Installer
Technical assistance
Restore default
settings
Reset
This increases the current parameter (if modifiable).
Disables pump control
DIRECT ACCESS BUTTONS
ENGLISH
Table 13: Button functions
Table 14: Access to menus
68
PRESS-AND-
HOLD TIME
On release of button
2 Sec
2 Sec
3 Sec
3 Sec
3 Sec
2 Sec on power-up of
unit
2 Sec
