Connecting, run-up

8.5.2.1

Connecting

Connection via
cable
Fault
Run
I
O
P
USS-Bus
Jog 7 8 9
4 5 6
1 2 3
0 +/- Reset
OP1S
5
9
4
8
3
7
2
6
1
OP1S side:
9-pole SUB-D socket
Plugging onto
Compact PLUS
rectifier unit
8-24
The OP1S can be connected to the units in the following ways:
♦ Connection via 3 m or 5 m cable (e.g. as a hand-held input device
for start-up)
♦ Connection via cable and adapter for installation in a cabinet door
♦ Plugging into MASTERDRIVES Compact units (for point-to-point
linking or bus configuration)
♦ Plugging into MASTERDRIVES Compact PLUS units (for bus
configuration)
The cable is plugged into the Sub D socket X103 on units of the
Compact PLUS type and into Sub D socket X300 on units of the
Compact and chassis type.
Connecting cable
5
4
3
2
1
Unit side:
9-pole SUB-D connector

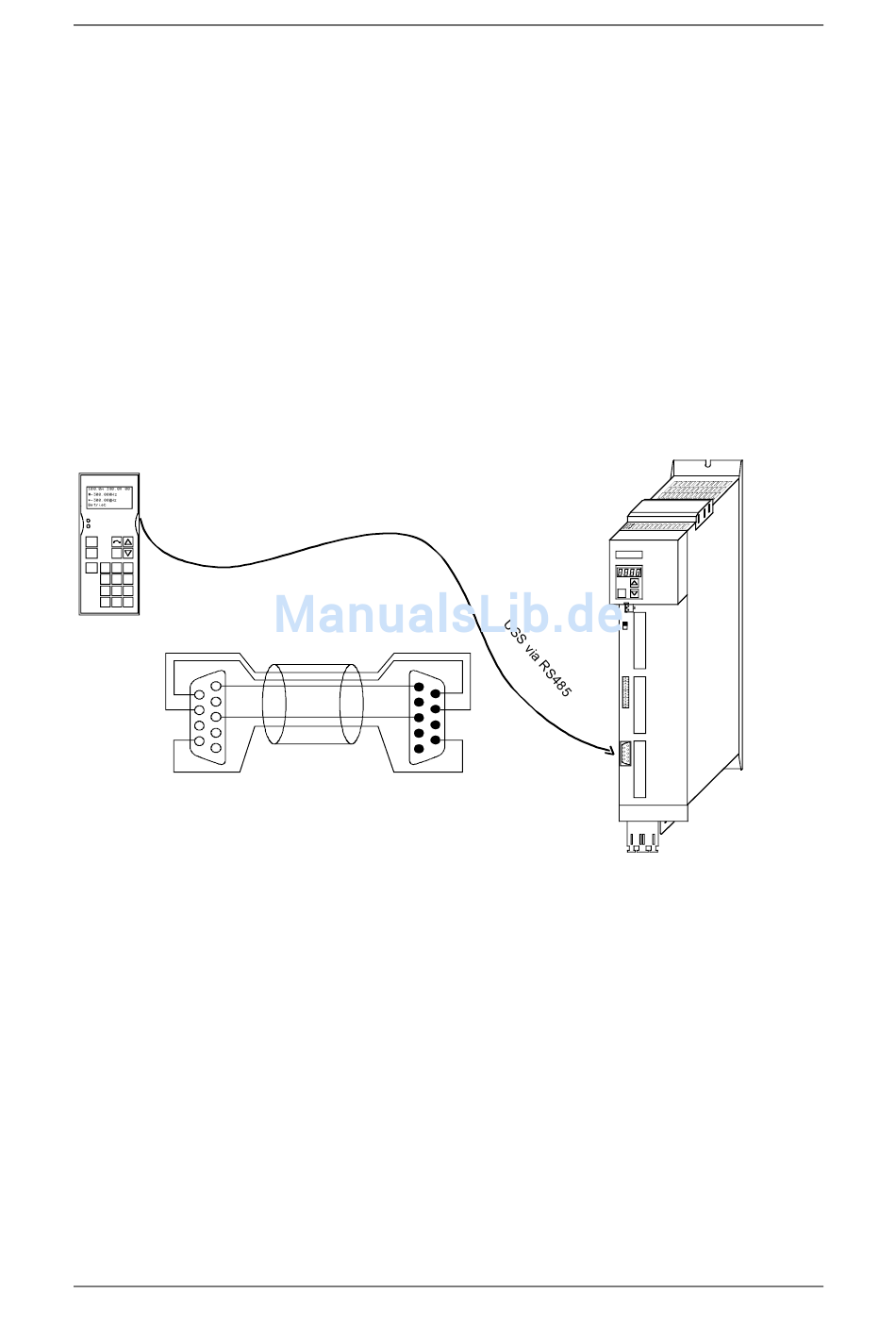

Fig. 8-16 Example: The OP1S in a point-to-point link with the Compact PLUS unit
On the Compact PLUS rectifier unit, you can plug the OP1S onto the
Sub D socket X320 and lock it in place on the front cover.
9
8
7
6
