06.2005

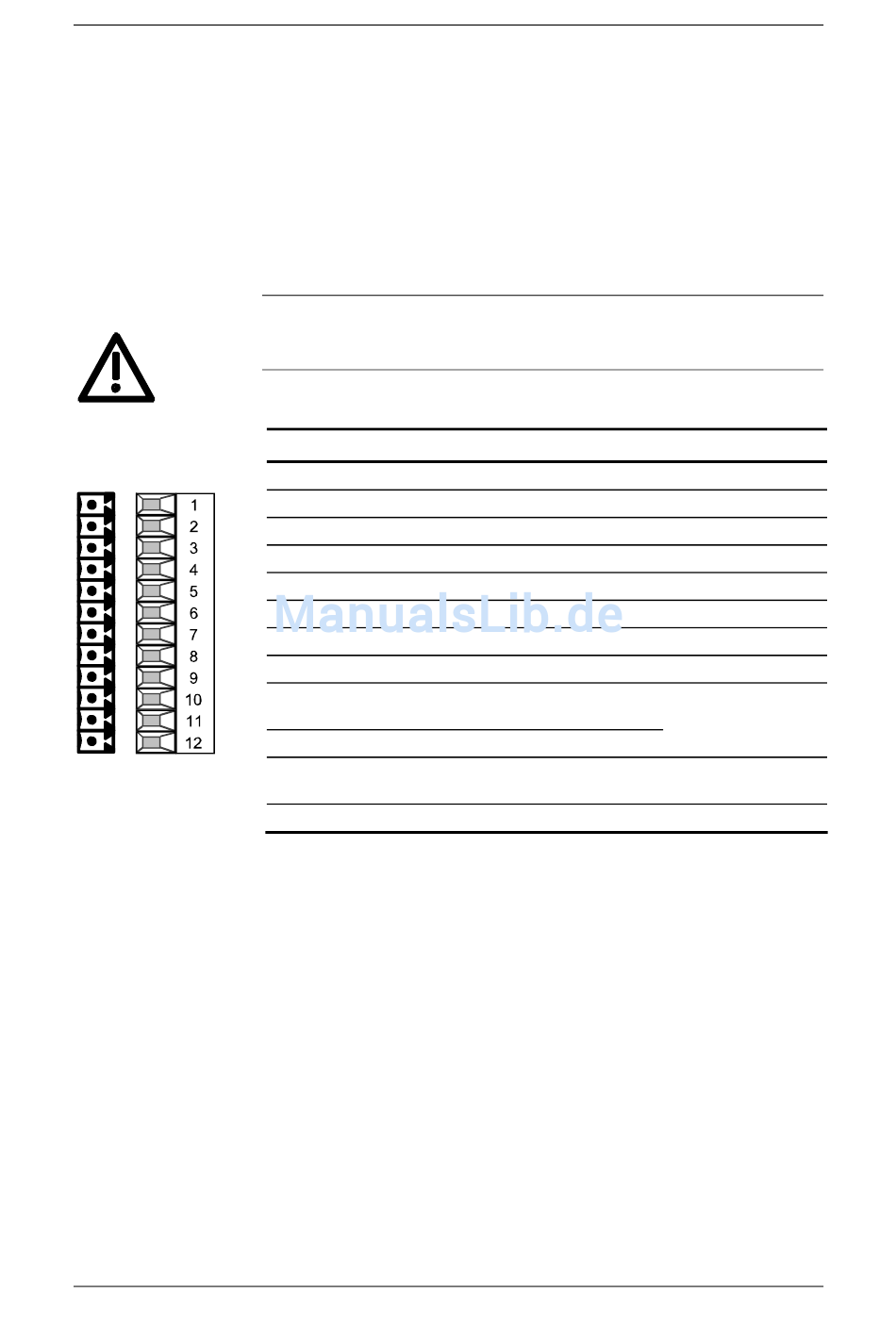

X101 - Control
terminal strip
WARNING
Siemens AG 6SE7087-6KP60
SIMOVERT MASTERDRIVES
The following connections are provided on the control terminal strip:
♦ 4 combined digital inputs and outputs
♦ 2 additional digital inputs
♦ 1 analog input
♦ 1 analog output
♦ 24 V auxiliary voltage supply (max. 60 mA, output only!) for the
inputs.
If the digital inputs are supplied by an external 24 V voltage supply, it
must be referred to ground terminal X101.2. Terminal X101.1 (P24
AUX) must not be connected to the external 24 V supply.
Terminal Designation
1 P24 AUX
2 M24 AUX
3 DIO1
4 DIO2
5 DIO3
6 DIO4
7 DI5
8 DI6
9 AI+
10 AI−
11 AO
12 M AO
Connectable cross-section: 0.14 mm² to 1.5 mm² (AWG 16)
Terminal 1 is at the top when installed.
Table 7-7 Control terminal strip X101
In the case of digital inputs, levels below 3 V are interpreted as low and
levels above 13 V as high.
Operating Instructions
Meaning
Aux. voltage supply
Reference potential
Digital input/output 1
Digital input/output 2
Digital input/output 3
Digital input/output 4
Digital input 5
Digital input 6
Analog input +
Analog input −
Analog output
Ground analog output
Connecting-up
Range
DC 24 V / 60 mA
0 V
24 V, 10 mA / 20 mA
24 V, 10 mA / 20 mA
24 V, 10 mA / 20 mA
24 V, 10 mA / 20 mA
24 V, 10 mA
24 V, 10 mA
11 bit + sign
differential input:
Ω
± 10 V / Ri = 40 k
10 bit + sign
± 10 V / 5 mA
7-13
