Installation
Installation
Mounting surface
250 mm
220 mm
Side view
5-2
Cooling air
Fig. 5-1

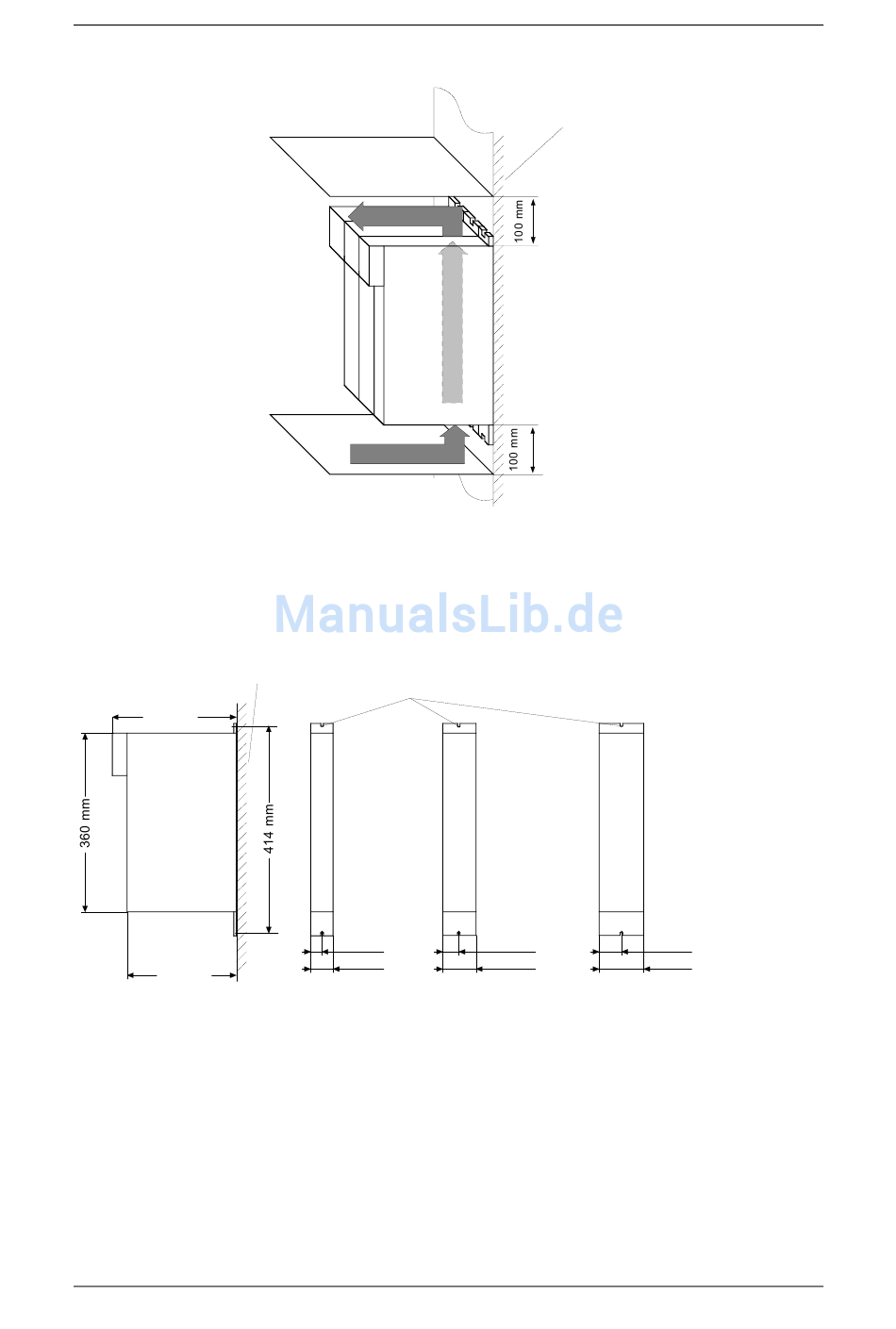

Minimum clearances for cooling
The unit is mounted directly to a mounting surface. Fixing is by means
of two or four M5 screws.
Slots
for screws M5
22.5 mm
45 mm
0.75 kW
Front view (without front cover)
Fig. 5-2
Dimension drawings for housings up to 90 mm wide
Mounting
surface
33.75 mm
67.5 mm
1.5 / 2.2 kW
4.0 kW
Operating Instructions
02.2005
45 mm
90 mm
6SE7087-6KP60
Siemens AG
SIMOVERT MASTERDRIVES
