Installation
Installing the
optional board
NOTICE
Slot A
Slot B
Slot C
5-6
Optional boards can only be inserted in slot A and slot B. Slot C of the
unit is permanently pre-assigned for the terminal module
Push the optional board from behind into the opening on the front cover
( ) until the position of the 64-pole system connector on the main
board corresponds with the position of the socket.
Insert the optional board from the right onto the 64-pole system
connector on the main board (
Screw the optional board tight at the fastening points in the front section
of the optional board (

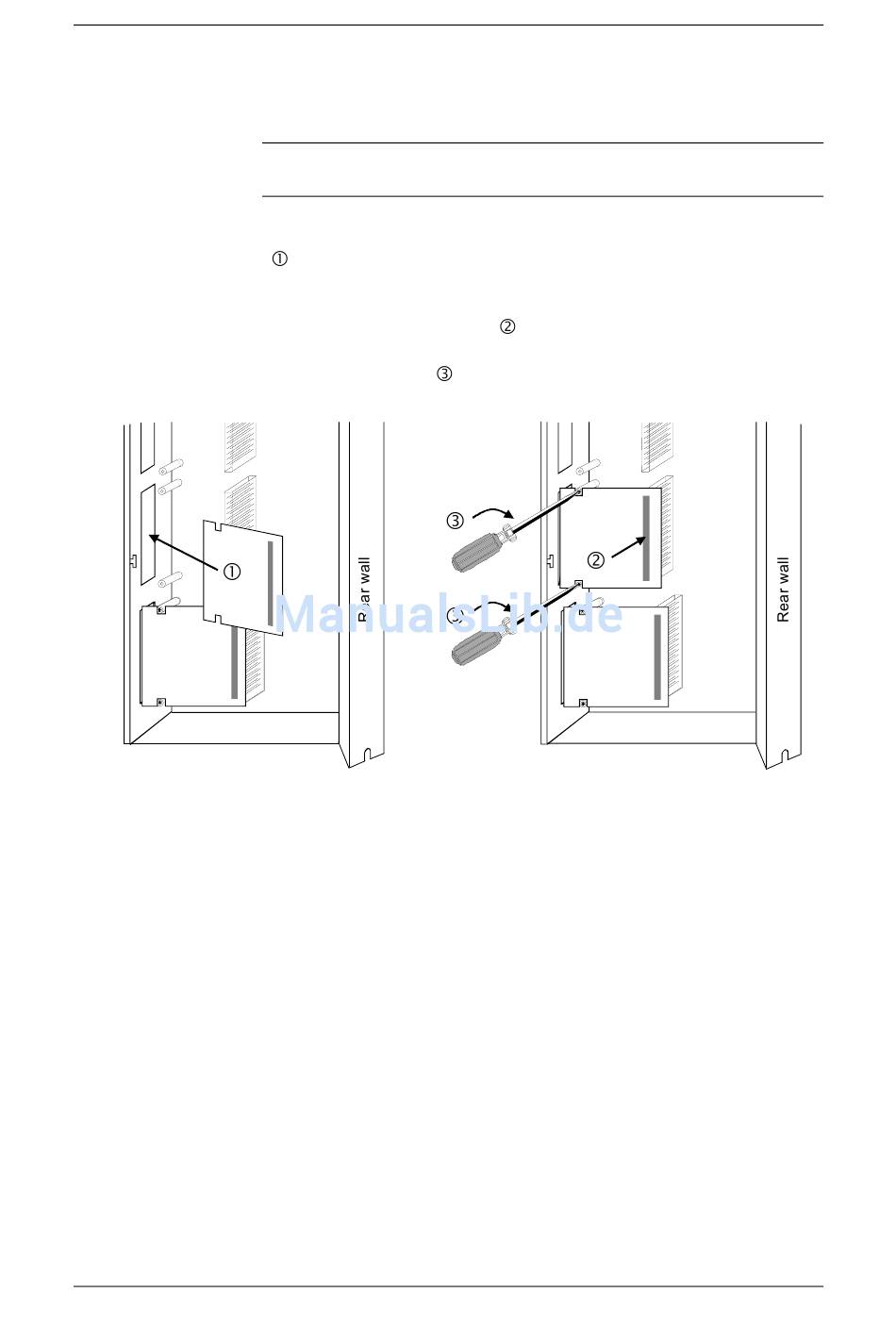

Fig. 5-6 Installing the optional board
). The view shows the installed state.
).
Slot A
Slot B
Slot C
