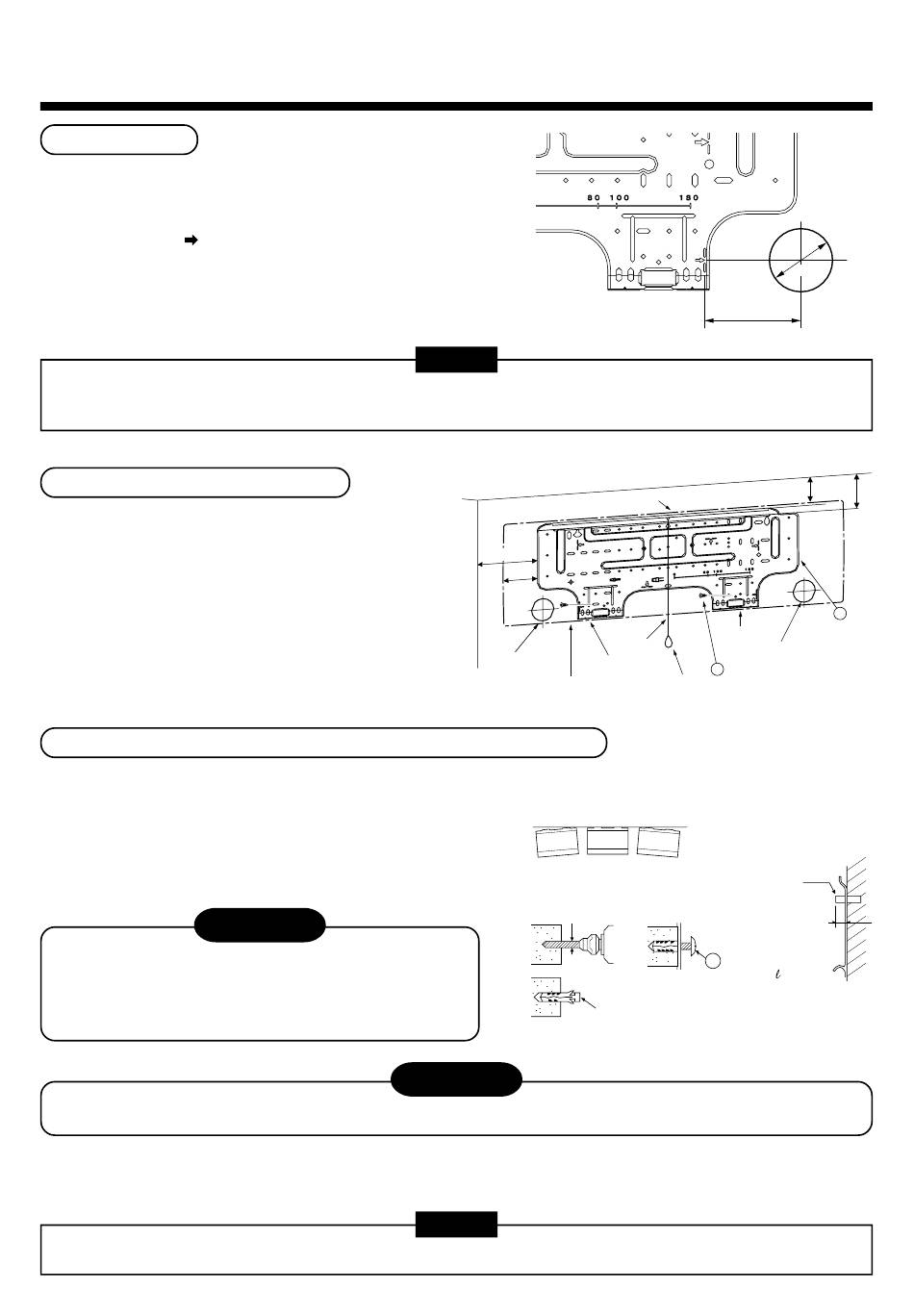

CUTTING A HOLE AND MOUNTING INSTALLATION PLATE

Cutting a hole
In case of installing the refrigerant pipes from the rear:
1. Decide the hole position for piping at 100mm from
the arrow mark ( ) on the installation plate and
drill a hole with Ø65mm at a slight downward slant
toward outdoor side.
• When drilling a wall that contains a metal lath, wire lath or metal plate, be sure to use a pipe hole brim ring sold
separately.
Mounting the installation plate
For installation of the indoor unit,
use the paper pattern in the accessory parts.
When the installation plate is directly mounted on the wall
1. Securely fit the installation plate onto the wall by screwing
it in the upper and lower parts to hook up the indoor unit.
2. To mount the installation plate on a concrete wall with
anchor bolts, utilize the anchor bolt holes as illustrated in
the above figure.
3. Install the installation plate horizontally in the wall.
CAUTION
When installing the installation plate with a mounting
screw, do not use the anchor bolt hole.
Otherwise the unit may fall down and result in personal
injury and property damage.
Failure to firmly install the unit may result in personal injury and property damage if the unit falls.
• In case of block, brick, concrete or similar type walls, make 5mm dia. holes in the wall.
• Insert clip anchors for appropriate
• Secure four corners and lower parts of the installation plate with 4 to 6 mounting screws to install it.
NOTE
CAUTION
…
mounting screws.
NOTE
6
The center of the pipe
hole is above the arrow.
Hook
170
85
Thread
Pipe hole
Hook
Weight
Indoor unit
NO OK NO
GOOD GOOD
5mm dia. hole
Clip anchor
(local parts)
Pipe
hole
65 mm
100 mm
107 127.5
1
Installation
Hook
plate
Pipe hole
Mounting screw
5
Anchor bolt
Projection
15mm or less
Mounting screw
7
Ø4 × 25
