Shutting down the unit

15.1.2. Inverter with more than one INGECON SUN String Control unit

The following example shows shutdown with two INGECON SUN String Control units. In the event that there are
more than two INGECON SUN String Control units, the shutdown process is the same, carrying out the operations
described below for each unit.

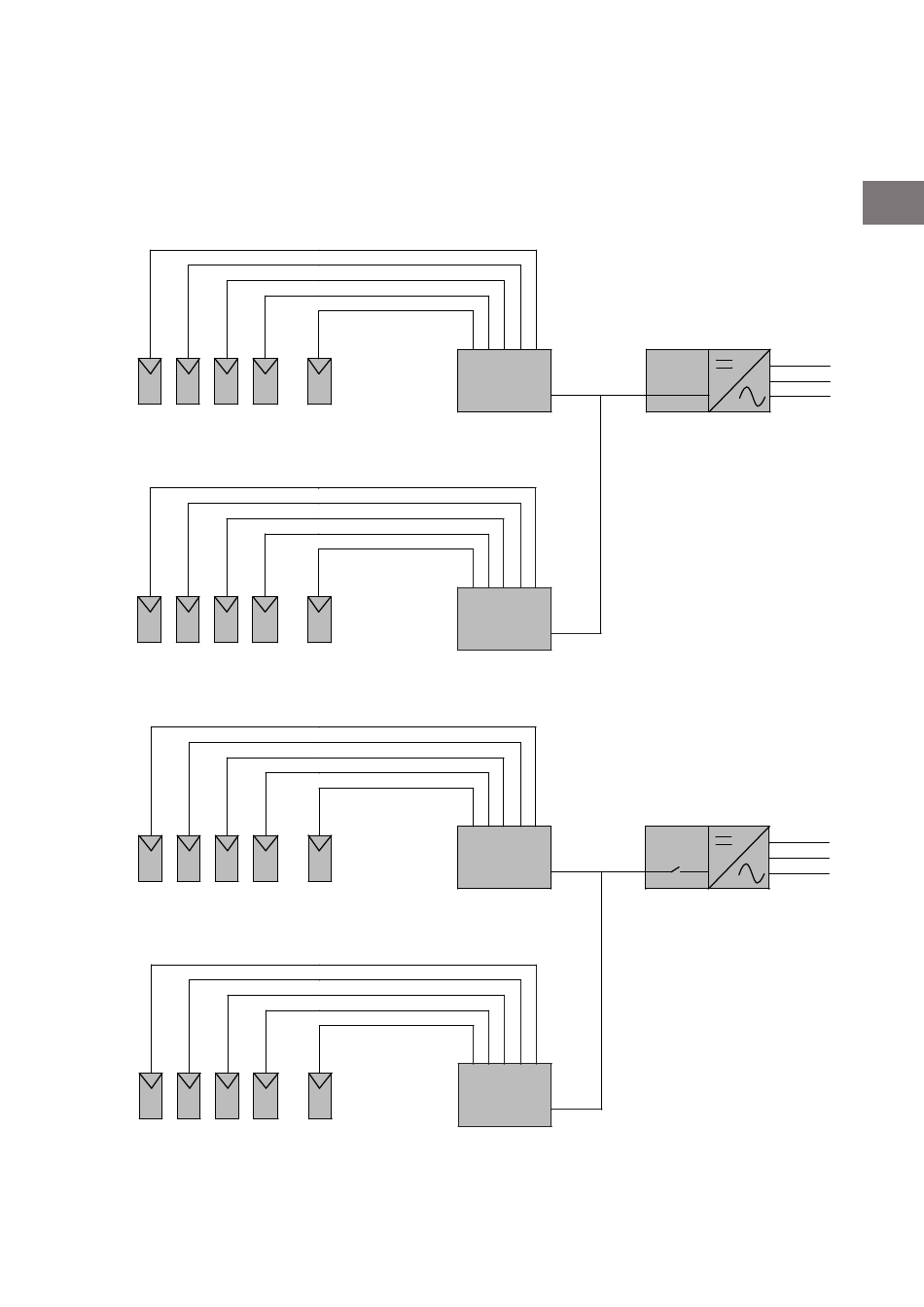

The normal operation diagram is as follows:
...
1 2 3 4
PV array
...
1 2 3 4
PV array
1. Stop the inverter (using emergency push-button or manual stop) and open its DC and AC isolating switch.
...
1 2 3 4
...
1 2 3 4
AAS2011IQM01_ - Installation and usage manual
