Connecting the PV array
6. Close the isolating switch (ON) if there is one. There will be voltage in the inverter connection
wiring. Check the polarity in the positive and negative plates connected to the inverter in the rest of the
INGECON SUN String Control to prevent reverse connections between boxes.
7. Open the isolating switch again (OFF) if there is one.
AAS2011IQM01_ - Installation and usage manual

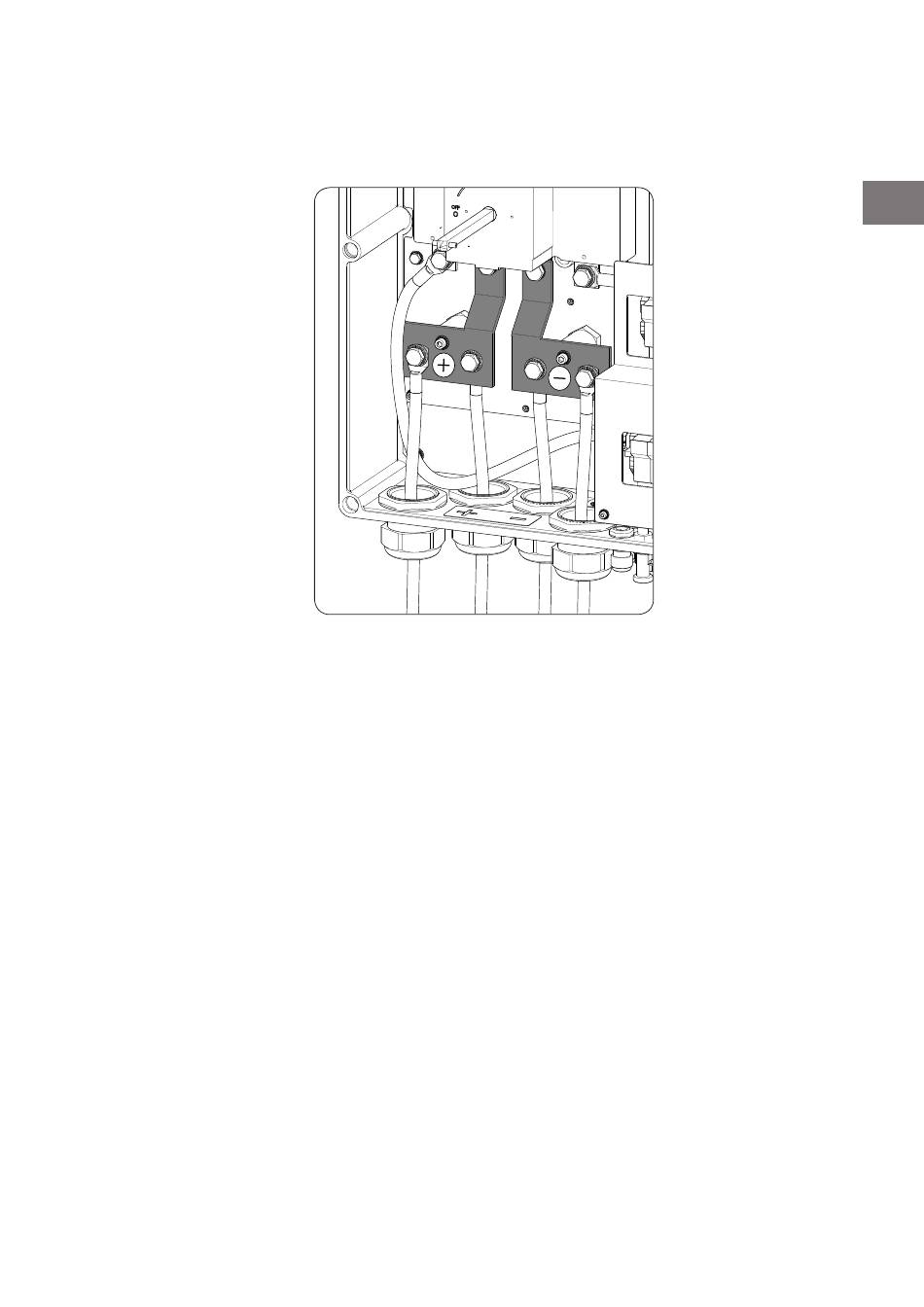

Inverter connection plates
