To select the connection terminal you must take into account the maximum diameter that can pass through the
packing gland.

11.3. Inverter connection process

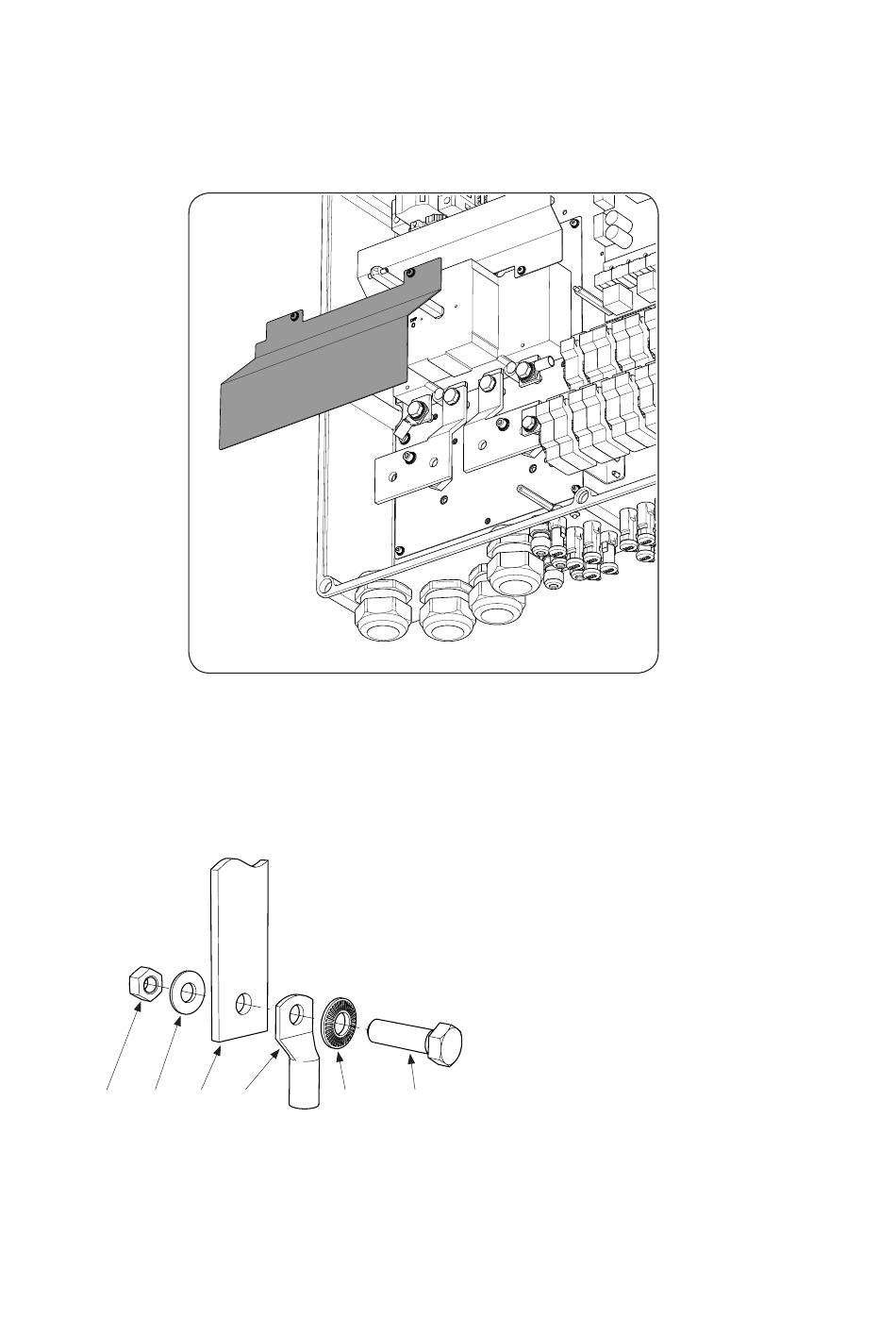

1. Remove the protective polycarbonate sheet.
2. Strip the cable according to the size of terminal to be used.
3. Crimping the terminal on the cable.
4. Clean the contact surfaces on both the terminal and the connection bar with a clean cloth and ethanol.
5. Insert the wiring through the packing glands for this connection.
6. Connect the terminal to the connecting plate using the bolts (pre-lubricated) and washers supplied by
Ingeteam on delivery of the unit, while respecting the indicated torque and polarities.
E B D
62
C B
A.
B.
C.
D.
E.
A
AAS2011IQM01_ - Installation and usage manual
Connecting the inverter
M10 hex cap screw.
M10 washer.
Terminal.
Connection plate.
M10 nut.
