Node number allocation

7. Node number allocation
Before starting the process of connecting the INGECON SUN String Control, the node number must be allocated.
This number can never match the node number of the inverter.
The connection is made using switch 1 (SW 1). It consists of a switch with 8 channels with which the numbering
of the node will be set up (see appendix at the end of the document).

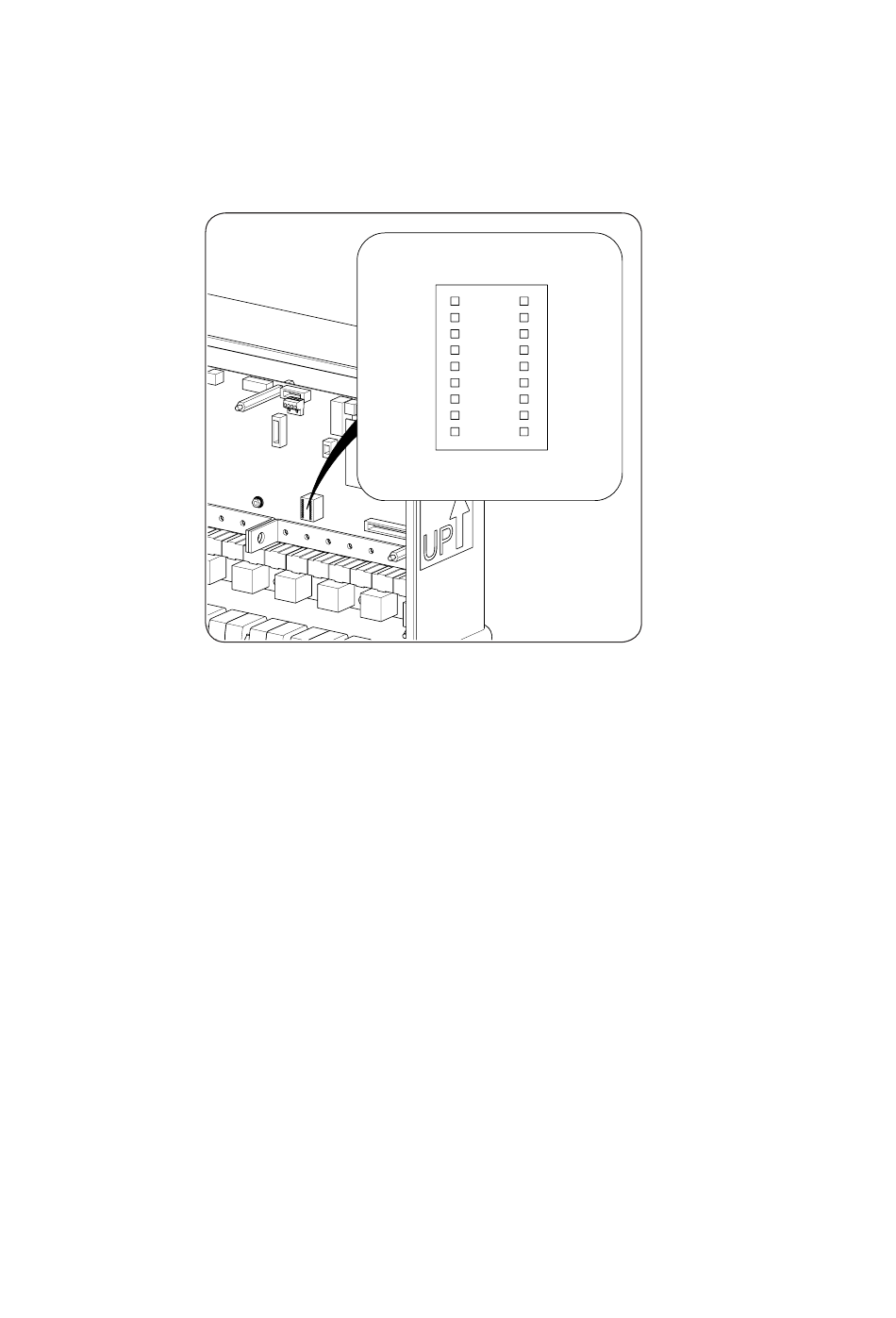

Node number configuration switch
There should never be nodes with the same number (either inverters or other INGECON SUN String Controls)
within the same communication bus.
