15. Shutting down the unit

This section describes the procedure to shut down the unit. If you wish to work inside the unit, these instructions
must be carried out in the order shown here to remove the power.

15.1. Process of shutting down the unit

15.1.1. Inverter with one INGECON SUN String Control unit

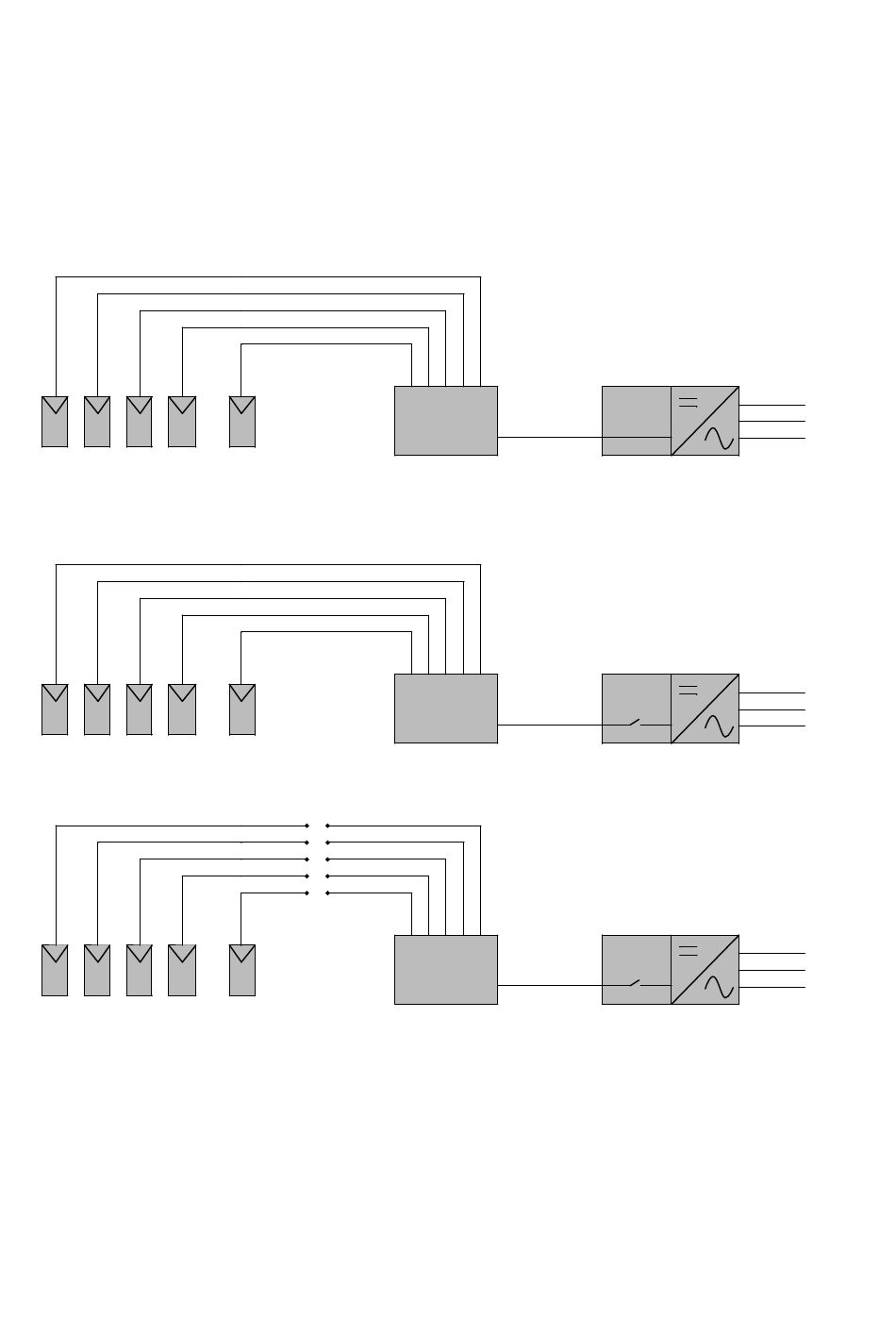

The normal operation diagram is as follows:
...
1 2 3 4
PV array
Follow these steps to shut down the unit:
1. Stop the inverter (using emergency push-button or manual stop) and open its DC and AC isolating switch.
...
1 2 3 4
PV array
2. Disconnect the PV array.
...
1 2 3 4
PV array
3. Check the absence of voltage in the INGECON SUN String Control.
