Statistics evaluation of data entered manually ..........25 Deleting data ....................25 Entering date and time ................... 25 Configuring RS232C interface ............... 26 Selecting attached instruments ..............26 Resetting parameters to default ............... 27 8.10 Switching temperature unit and entering user name........28 RA-510M METTLER TOLEDO...
Seite 4
Error messages and malfunctions ............... 35 Maintenance ....................36 11.1 Charging internal battery .................. 36 11.2 Changing blown fuses ..................36 11.2.1 RA-510M ......................36 11.2.2 ASU-510 ......................36 Standard and optional equipment ..............37 Technical data ....................39 13.1 RA-510M ......................39 13.2...

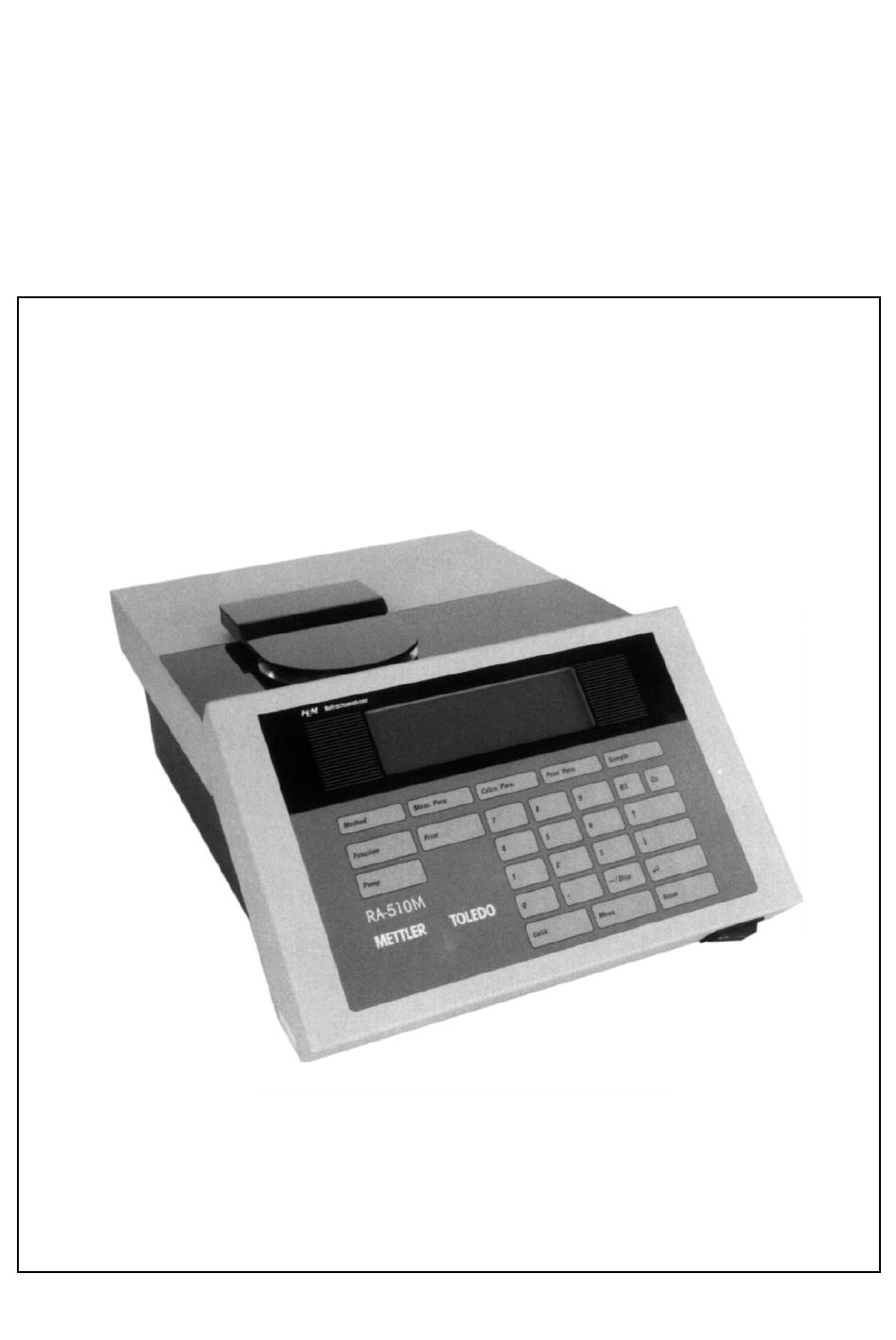

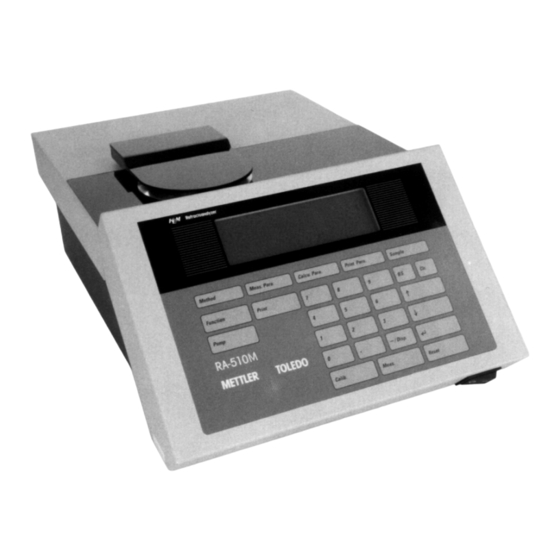

Introduction Introduction The RA-510M Refractometer is used for the simple determination of the refractive index of solutions. It • measures solutions with an index in the range 1.32000 to 1.56000. • needs a minimum amount of substance (0.2 milliliters) for measurement.
– Exclude the following environmental influences: • powerful vibrations, • direct sunlight, • high atmospheric humidity, • temperatures below 5 °C and above 35 °C, • powerful electric or magnetic fields which influence the power supply through large load fluctuations! RA-510M METTLER TOLEDO...
The refractive index depends not only on the wavelength used to measure it, but also on the temperature of the solution being measured. The standard temperature is 20 °C. If measure- ments are performed at a different temperature, e.g. 25 °C, this must be specified: n RA-510M METTLER TOLEDO...
Refractive index Measurement principle The light emitted by the RA-510M passes through the prism and en- counters the solution. It is partially refracted (angle of incidence < critical angle) and partially reflected (angle of incidence > critical angle). The reflected light is recorded using an optical sensor (CCD).
– Attach your optional units to the RA-510M. Note: If you attach the GA42 Printer, • its DIP switch 2 must be set to OFF (see GA42 Operating Instructions). • you have to select it with function No. 7 (see Section 8.8).
(Defined) result Brix 10.23 (Defined) unit in nD, Brix, CONC, (always displayed when °C Shown in reverse a sample is in the cell) Temp. 21.230 video until set With an HFCS EPROM temperature reached the result "Solid" RA-510M METTLER TOLEDO...
– Use the vapor-proof lid if you measure volatile samples! (See Section 12) Calibrations You can calibrate the optical sensor of the RA-510M in two different ways, with the zero point calibration (standard) or the 2-point calibration (for special applications).
The refractive index of water is now shown. Report of a zero point calibration (GA42 printer) [Zero Point Calib.] Name of the refractometer Model:RA-510M Instrument identification (see rating plate on the rear panel) :UDB26543 Date and time of the calibration Date :96/05/24 14:19...
Seite 13
**Calibration** 20.95 20.03 Then the following appears: -Zero Span Calibration- – Add approx. 0.2 mL of the second refer- ence substance to the prism. Sample OK ? – Close the cover and confirm with 21.03 ENTER: 21.32 RA-510M METTLER TOLEDO...
Seite 14
20.01 Report of a 2-point calibration (GA42 printer) [ Zero Span Calib. ] Name of the refractometer Model:RA-510M Instrument identification :UDB26543 Date and time of the calibration Date :96/05/25 12:43 Measurement temperature of the calibration Temp : 20.00 C...
(default value) and 1.34768 the result is printed out. Temp. 19.97 °C Report (GA42 printer) of the result for the first sample of a series (see Section 7.3.4) Model:RA-510M :UDB26543 Sample: You may write the substance name onto this line Name:Ch. Iserland...
Methods Methods Five methods with default parameters are stored in the RA-510M as standard. These parameters comprise 4 groups, the measurement, calculation, record and sample parame- ters, which you can call up using the Meas. Para. , Calcu. Para. , Print Para. and Sample keys and change to match the requirements of your individual determinations.
You can print out the parameters of each individual group with the Print key as soon as the group has been selected. Changing a method For every selected method, you can change the measurement, record and sample parame- ters, for methods 1, 2 and 3 you can also change the calculation parameters. RA-510M METTLER TOLEDO...
Sample addition 0, 1 or 2 0: no instrument attached or action not desired 1: action will be performed within a defined time (see Section 9.1.3) 2: duration of the action will be defined automatically (see Section 9.1.3) RA-510M METTLER TOLEDO...
(°Brix). The refractive index of solutions containing sugar is measured, converted into Brix degrees and displayed (see note b). The conversion into Brix degrees is based on tabulated values of sucrose solutions (T = 20 °C) stored in the RA-510M, see also Section 13.
Seite 20
• If only a few (<20) data pairs are stored for the range being measured, select the function of 3rd degree. • If numerous (>20) data pairs are stored for the range being measured, select "Interpolati- on". RA-510M METTLER TOLEDO...
Seite 22
A: [ 0.00000E+0] known equations. B: [ 0.00000E+o] You can store maximum 3 calculation functions in the RA-510M. If you need more, it is quicker to enter known coef- ficients than the complete data pairs un- der the menu option "Auto".
For the report of measured values, the GA42 Printer has space for 7 characters. With 5 places following the decimal point for a concentration value >10, it then prints "9.99999". However, the result memory contains the correct value. RA-510M METTLER TOLEDO...
– Enter the sample number (01-99) and confirm with ENTER. With every measurement, the sample number is automatically incremented by 1. – If necessary, enter the lot number (with minus and numeric keys). RA-510M METTLER TOLEDO...
Functions Functions The RA-510M has ten functions for additional possibilities, e.g. statistical calculations, recalculations, entry of date and time and switching the temperature display. You can select and activate these 10 functions using the Function key and enter or change the correspond- ing parameters;...
Automatic statistics evaluation (function 2: Auto Statis.) The RA-510M evaluates the results of a series automatically and stores the statistical data mean value, standard deviation and relative standard deviation. Each method has its own result memory whose statistical values are cleared only after you have entered a new series number for this method (see Section 7.3.4) or reset the...
This function allows you to enter or change the date and time. -FUNCTION- The current time is displayed. 5.Calendar 94/02/10 10:10 Year :[94] Hour: [10] – Enter year, month, day, hour and min- Month:[021 Minutes:[10] utes in succession and confirm each :[10] entry with ENTER. RA-510M METTLER TOLEDO...
Functions Configuring RS232 interface (function 6: RS-232C) If you attach a computer to the RA-510M, use this function to configure the RS232C interface (see also Section 9.2). Select – Select -FUNCTION- • baud rate, 6.RS-232C Baud Rate:150 600 1200 • parity,...
"–INITIALIZE–" then flashes for a All parameters can be brief time in the standard display. initialized by those steps Note: If you press any key before you switch off the instrument, the parameters will not be reset. RA-510M METTLER TOLEDO...
If you position the cursor next to Z or z JKLMNOPQR jklmnopqr 67890 and confirm with ENTER, a space is STUVWXYZ stuvwxyz created. You may quit this menu by confirming End with ENTER or by pressing a function key. RA-510M METTLER TOLEDO...
You can use the ASU-510 and the FCU-510 flow cell to perform continuous measurments. The viscosity limit for the conveyed samples is approx. 200 mPas. 9.1.1 Installation Attaching ASU-510 – Switch off the RA-510M. – Plug the "pump" cable into the "EXT PUMP" Power connec- socket. tion cable –...
– Set the ASU switch to "SAMP." and turn the control knob to the left to the lowest setting. – Press the Pump key of the RA-510M and set the flow with the control knob. – When the acetone reaches the waste bottle, press the Pump key. The pump is switched off and the refractive index of acetone displayed.
– The sample is siphoned off during the -MEASUREMENT- [METHOD 0] defined time. " * " always appears when the pump is * nD 1.30673 active. – When the pump stops, remove the suc- ° C Sampling Temp. 21.24 tion tube from the sample. RA-510M METTLER TOLEDO...
Seite 34
Meas . key: Rinse-2 Temp. 21.16 Press MEAS Key -MEASUREMENT- [METHOD 0] * nD 1.45678 – The prism is rinsed with the second solvent for the defined time. ° C Rinse-2 21.67 Temp. The following mask then appears: RA-510M METTLER TOLEDO...
Seite 35
If a refractive index is still shown or the message "Out of range" appears, we advise rinsing the cell again with acetone and then drying it or simply "flushing" it with dry air. When the prism is clean and dry, the message "No sample" appears. RA-510M METTLER TOLEDO...
Refractive index 5 . 0 2 4 % Concentration * f 0 0 0 0 4 7 Measurement time (hours/minutes/seconds) * The places following the point in the concentration value depend on the setting under the record parameters. RA-510M METTLER TOLEDO...
Temp Error The temperature sensor of the Switch the instrument off and thermostat control is faulty call service METTLER TOLEDO Lamp NG The display is faulty Switch the instrument off and call service METTLER TOLEDO...
11.2 Changing blown fuses 11.2.1 RA-510M – Switch the RA-510M off and disconnect power cable! Screwdriver Fuse holders Screwdriver – Open the cover of the fuse holders (above the power cable socket) with a flat screwdriver.
Standard and optional equipment Standard and optional equipment Standard equipment Order No. One Refractometer RA-510M One set of Operating Instructions 51709417 One power cable in accordance with your order 2 microfuses (T4L250V) 13874 Optional equipment Printer GA42 GA42 printer cable...
Seite 40
- one connection cable - three connection tubes - two bottles Sample changer CHG-241M Density meter DA-300M DA-310M Connection set RA-510M/Density meter 51328128 containing - IOR-DA - Connection cable - FCU-510 - 2 tubes Computer cable • PC-AT connection: 9pol 51328503 •...
Technical data Technical data 13.1 RA-510M Measurement principle Measurement of the refractive index at wavelength 589.3 nm (D line of sodium); optical recognition of the critical angle measurement • Range 1.32000 to 1.56000 ±0.00005 • Repeatability • Resolution 0.00001 Brix measurement...
Seite 42
Technical data Interfaces One serial interface for printer connection ( GA42 Printer) METTLER TOLEDO One serial RS232C interface for computer connection One socket for pump connection One socket for sample changer connection Materials Housing Enameled sheet steel Keypad Light source...
Seite 43
Automatische Statistik-Auswertung ..............64 Statistik-Auswertung von manuell eingegebenen Daten........ 65 Daten löschen ....................65 Datum und Zeit eingeben ................65 RS232C-Schnittstelle konfigurieren ............... 66 Angeschlossene Geräte wählen ..............66 Standard-Parameter initiieren ................ 67 8.10 Temperatur-Einheit wechseln ................ 68 RA-510M METTLER TOLEDO...
• speichert maximal 100 Messwerte pro Methode. • führt statistische Auswertungen durch (Mittelwert, Standardabweichung, relative Standard- abweichung) und ermöglicht die Nachberechnung von Resultaten. Wenn das RA-510M mit einem HFCS-EPROM bestückt ist, wird die gemessene Brechzahl von entsprechenden Lösungen automatisch in % Trockensubstanz von Invertzucker umge- rechnet.
– Schliessen Sie folgende Umwelteinflüsse aus: • starke Vibrationen, • direkte Sonneneinstrahlung, • hohe Luftfeuchtigkeit • Temperaturen unter 5 °C und über 35 °C. • starke elektrische oder magnetische Felder, bei denen das Netzteil durch starke Laständerungen beeinflusst wird! RA-510M METTLER TOLEDO...
Die Brechzahl hängt nicht nur von der Messwellenlänge sondern auch von der Temperatur der zu messenden Lösung ab. Die Standard-Temperatur ist 20 °C. Wenn bei einer anderen Temperatur, z.B. 25 °C gemessen wird, muss diese angegeben werden: n RA-510M METTLER TOLEDO...
Brechzahl Messprinzip Das Licht, das vom RA-510M ausge- strahlt wird, dringt durch das Prisma und trifft auf die Lösung. Es wird teil- weise gebrochen (Einfallswinkel < Grenzwinkel) und teilweise reflektiert (Einfallswinkel > Grenzwinkel). Das reflektierte Licht wird mittels ei- nes optischen Sensors (CCD) er- fasst.
Schnittstelle und Siche- Einstellung rungshalter – Schliessen Sie Ihre zusätzlichen Geräte an das RA-510M an. Hinweis: Wenn Sie den GA42-Drucker anschliessen, • muss dessen DIP-Schalter 2 auf Position OFF stehen (siehe GA42-Bedie- nungsanleitung). • müssen Sie ihn unter der Funktion 7 wählen (siehe Kap. 8.8).
(Definiertes) Resultat (Definierte) Einheit Brix 10.23 in nD, Brix, CONC, (wird immer angezeigt, °C Wird invers dargestellt, wenn sich eine Probe in Temp. 21.230 bis die Soll-Temperatur der Zelle befindet) erreicht ist. Mit HFCS-EPROM ist das Resultat "Solid" RA-510M METTLER TOLEDO...
– Rühren Sie die Probe auf dem Prisma immer um, damit eventuelle Luftblasen entweichen! – Setzen Sie bei leichtflüchtigen Proben den Verdunstungs-Deckel ein! (Siehe Kap. 12.) Kalibrierungen Sie können den optischen Sensor des RA-510M auf zwei verschiedene Arten kalibrieren, mit der Nullpunkt-Kalibrierung (Standard) oder der 2-Punkt-Kalibrierung (für spezielle Anwen- dungen.
Calib. NG! Temp. 20.04 °C Danach wird die Brechzahl von Wasser angezeigt. Protokoll einer Nullpunkt-Kalibrierung (GA42-Drucker) [Zero Point Calib.] Name des Refraktometers Model:RA-510M Geräte-Identifikation (siehe Typenschild auf der Geräte-Rückseite) :UDB26543 Zeitpunkt der Kalibrierung Date :96/05/24 14:19 Messtemperatur der Kalibrierung Temp : 20.00 C...
Seite 53
Die erste Substanz wird gemessen. **Calibration** 20.95 20.03 Danach erscheint: -Zero Span Calibration- – Ca. 0,2 mL der zweiten Referenzsub- stanz auf das Prisma geben. Sample OK ? – Den Deckel schliessen und mit ENTER 21.03 bestätigen: 21.32 RA-510M METTLER TOLEDO...
Seite 54
**Calibration** Danach wird die Brechzahl der gemes- 20.95 20.01 senen Referenzsubstanz angezeigt. Protokoll einer 2-Punkt-Kalibrierung (GA42-Drucker) [ Zero Span Calib. ] Name des Refraktometers Model:RA-510M Geräte-Identifikation :UDB26543 Zeitpunkt der Kalibrierung Date :96/05/25 12:43 Messtemperatur der Kalibrierung Temp : 20.00 C...
Brechzahl nach ca. einer Minute gemes- sen (Standardwert) und als Resultat 1.34768 ausgegeben. Temp. 19.97 °C Protokoll (GA42-Drucker) des Resultats für die erste Probe einer Serie (siehe Kap. 7.3.4) Model:RA-510M :UDB26543 Sample: Sie können auf diese Zeile den Substanznamen schreiben Name:Ch. Iserland 01 - 01 Temp 20.00 C...
Methoden Methoden Im RA-510M sind fünf Methoden mit Standard-Parametern gespeichert. Diese bestehen aus 4 Gruppen, den Mess-, Berechnungs-, Protokoll- und Proben-Parametern, die Sie mit den Tasten Meas. Para. , Calcu. Para. , Print Para. und Sample aufrufen und entsprechend den Anforderungen der einzelnen Bestimmungen ändern können.
Die Parameter jeder einzelnen Gruppe können Sie mit der Print -Taste ausdrucken, sobald die Gruppe gewählt ist. Methode ändern Für jede gewählte Methode können Sie die Mess-, Protokoll- und Proben-Parameter ändern, für Methoden 1, 2 und 3 auch die Berechnungs-Parameter. RA-510M METTLER TOLEDO...
0, 1 oder 2 Probenzufuhr 0, 1 oder 2 0: kein Gerät angeschlossen bzw. Aktion nicht gewünscht 1: Aktion wird innerhalb einer bestimmten Zeit durchgeführt (siehe Kap. 9.1.3) 2: Dauer der Aktion wird automatisch bestimmt (siehe Kap. 9.1.3) RA-510M METTLER TOLEDO...
Umrechnung in die Trockensubstanz von HFCS 42 bzw. HFCS 55 basiert auf Tabellen- werten von beiden Isosirupen (T = 20 °C), die im RA-510M gespeichert sind, siehe Kap. b: Die Brix- und Trockensubstanz-Werte von Messungen mit z.B. Milch oder Limonade sind relative Werte: Sie geben nicht die tatsächliche Konzentration von Saccharose bzw.
Seite 60
Maske die Zeile "Parameters Set" gelöscht. Faustregel: • Wenn wenig Datenpaare (<20) für den zu messenden Bereich gespeichert sind, wählen Sie die Funktion 3. Grades. • Wenn viele Datenpaare (>20) für den zu messenden Bereich gespeichert sind, wählen Sie "Interpolation". RA-510M METTLER TOLEDO...
Seite 62
Sie hier die A: [ 0.00000E+0] B: [ 0.00000E+o] Koeffizienten von bekannten Gleichun- gen eingeben. Sie können im RA-510M maximal 3 Be- rechnungs-Funktionen speichern. Wenn Sie mehr brauchen, ist die Eingabe von bekannten Koeffizienten zeitsparender als die sämtlicher Datenpaare unter dem Menüpunkt "Auto".
Dezimalstellen möglich. b. Für die Ausgabe von Messwerten hat der GA42-Drucker Platz für 7 Zeichen. Bei 5 Stellen nach dem Punkt für eine Konzentrationsangabe >10 druckt er dann "9.99999" aus. Im Resultatspeicher steht jedoch der korrekte Wert. RA-510M METTLER TOLEDO...
Probennummer, das Resultat und die Messtemperatur. – Die Probennummer eingeben (01-99) und mit ENTER bestätigen. Bei jeder Messung wird die Probennummer automatisch um 1 erhöht. – Wenn notwendig, die Chargennummer eingeben (mit Minus- und Zifferntasten). RA-510M METTLER TOLEDO...
Funktionen Funktionen Das RA-510M hat zehn Funktionen für weitere Möglichkeiten, z.B. statistische Berechnun- gen, Nachberechnungen, Eingabe von Uhrzeit und Datum, Wechsel der Temperaturanzei- ge. Mit der Function -Taste können Sie diese 10 Funktionen wählen und aktivieren bzw. die entsprechenden Parameter eingeben und ändern; ausdrucken können Sie diejenigen der Funktionen 0 bis 3 und 5 bis 7.
"[- - - - - - - -]". Automatische Statistik-Auswertung (Funktion 2: Auto Statis.) Das RA-510M wertet die Resultate einer Serie automatisch aus und speichert die statisti- schen Daten Mittelwert, Standardabweichung und relative Standardabweichung. Zu jeder Methode gehört ein eigener Resultatspeicher, dessen Statistikwerte erst gelöscht werden, wenn Sie eine neue Serie-Nummer für diese Methode eingeben (siehe Kap.
Funktionen Statistik-Auswertung von manuell eingegebenen Daten (Funktion 3: Manu. Statis.) Das RA-510M wertet Daten, die Sie manuell eingeben, statistisch aus, speichert sie aber nicht. Sie können maximal 100 Daten eingeben. – Das Auswahlmenü Einheiten mit der -FUNCTION- -/Disp. -Taste anzeigen und die ge- 3.Manu.
Taste wählen und jeweils mit ENTER Soft H.S.:Off On bestätigen. Angeschlossene Geräte wählen (Funktion 7: Option) Mit dieser Funktion müssen Sie die Geräte wählen, die Sie am RA-510M angeschlossen haben, und ob Sie Mehrfach-Messungen durchführen wollen. – Den Drucker (DP-500 von Kyoto Elec- -FUNCTION-...
ON again. "–INITIALIZE–" blinkt danach für All parameters can be kurze Zeit in der Standard-Anzeige. initialized by those steps Hinweis: Wenn Sie irgendeine Taste drücken, bevor Sie das Gerät ausschalten, erfolgt keine Initiierung der Parameter. RA-510M METTLER TOLEDO...
67890 Wenn Sie den Cursor neben Z oder z STUVWXYZ stuvwxyz setzen, wird durch Bestätigung mit EN- TER einen Leerschlag erzeugt. Sie können die Maske verlassen, wenn Sie End mit ENTER bestätigen oder eine Funktions- Taste drücken. RA-510M METTLER TOLEDO...
Die Viskositätsgrenze der zu fördernden Proben liegt bei ca. 200 mPas. 9.1.1 Installation ASU-510 anschliessen – Das RA-510M ausschalten. – Das "Pumpen"-Kabel in die "EXT PUMP"- Netzkabel Buchse des RA-510M stecken. – Die Einheit mit dem Netzkabel am Netz an- schliessen.
– Den ASU-Schalter auf "SAMP." stellen und den Regelungsknopf auf die unterste Stufe nach links drehen. – Die Pump -Taste des RA-510M drücken und die Zufuhr mit dem Regelungsknopf einstellen. – Wenn das Aceton die Abfallflasche erreicht, die Pump -Taste drücken. Die Pumpe ist ausgeschaltet und die Brechzahl des Acetons wird angezeigt.
[METHOD 0] benen Zeit angesaugt. " * " erscheint jeweils bei aktiver Pum- * nD 1.30673 ° C – Wenn die Pumpe stoppt, den Ansaug- Sampling Temp. 2 1 . 2 4 schlauch aus der Probe nehmen. RA-510M METTLER TOLEDO...
Seite 74
Press MEAS Key drücken: -MEASUREMENT- [METHOD 0] – Das Prisma wird für die eingegebene * nD 1.45678 Zeit mit dem zweiten Lösemittel ge- ° C spült. Rinse-2 2 1 . 6 7 Temp. Dann erscheint folgende Maske: RA-510M METTLER TOLEDO...
Seite 75
Taste drücken: Wird noch eine Brechzahl angezeigt oder erscheint die Meldung "Out of range", empfehlen wir, die Zelle noch einmal mit Aceton zu spülen und zu trocknen oder nur mit trockener Luft zu "spülen". Wenn das Prisma sauber und trocken ist, erscheint die Meldung "No sample". RA-510M METTLER TOLEDO...
Zusatzgeräte Computer Wenn Sie einen Computer angeschlossen haben, werden die Messdaten des RA-510M direkt nach jeder Messung übermittelt. Die Konfiguration im Refraktometer (siehe Kap. 8.7) muss mit der des Computers übereinstimmen. (Computerkabel, siehe Kap. 12) Die übernommenen Daten können Sie so archivieren und/oder in anderen Programmen, z.B.
Die interne Batterie ist leer Das Gerät ausschalten, METTLER sind verloren (z.B. TOLEDO Service anrufen Datum) Messungen der- Das Gerät ausschalten, METTLER Prisma defekt selben Probe nicht TOLEDO Service anrufen reproduzierbar Anzeige ist "leer" Kontrast-Einstellung ändern (siehe Kap. 4) RA-510M METTLER TOLEDO...
Sie geladen bleibt. Wir empfehlen deshalb, das Gerät ab und zu einzuschalten, damit sie für diese Zeit funktionsfähig bleibt. 11.2 Defekte Sicherungen wechseln 11.2.1 RA-510M – Das RA-510M ausschalten und das Netzkabel herausziehen! Schraubenzieher Sicherungshalter Schraubenzieher – Den Deckel der Sicherungshalter (über der Netzkabel-Buchse) mit einem flachen Schraubenzieher öffnen.
Technische Daten Technische Daten 13.1 RA-510M Messprinzip Messung der Brechzahl bei der Wellenlänge 589,3 nm (D-Linie des Natriums); optische Erkennung des Grenzwinkels -Messung • Bereich 1,32000 bis 1,56000 ±0,00005 • Wiederholpräzision • Auflösung 0,00001 Brix-Messung Die Tabellenwerte zur Brix-Berechnung wurden 1974 bei der 16.
Seite 82
Netzfrequenz 50 oder 60 Hz Leistungsaufnahme ca. 15 VA Sicherungswert T2L250V Weitere Daten Gehäuse Lackiertes Stahlblech Abmessungen Breite: 120 mm, Tiefe: 340 mm, Höhe: 130 mm Gewicht ca. 3 kg Pumpe Membranpumpe Materialien FCU-510/ASU-510 Durchflusszelle Teflon Verbindungsschläuche RA-510M METTLER TOLEDO...
Seite 84
METTLER T OLEDO Service assures the quality , measuring accuracy and preservation of value of all METTLER TOLEDO products for years to come. Please send for full details about our attractive terms of service. Thank you. Für eine gute Zukunft Ihres METTLER TOLEDO Produktes: METTLER TOLEDO Service sichert Ihnen auf Jahre Qualität, Mess-...
