Installation and connection

5.1

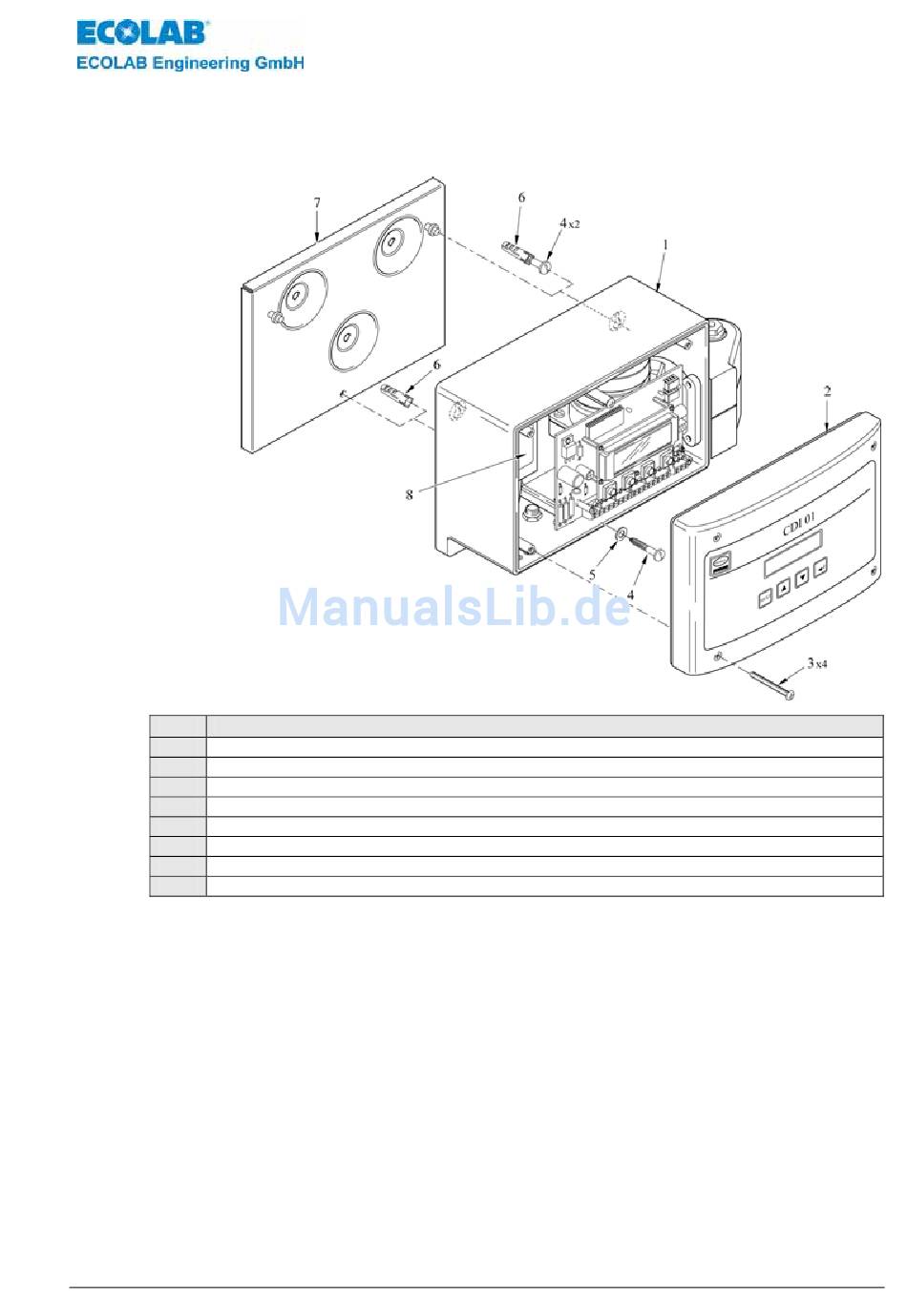

Exploded view: Wall mounting

fig. 5.1
Pos. Designation
1 Enclosure
2 Enclosure front cover
3 Cover screw (4
4 Fixing screw (3
5 Washer (3
6 Wall plug (3
7 Mounting plate (OPTIONAL)
8 Transformer
