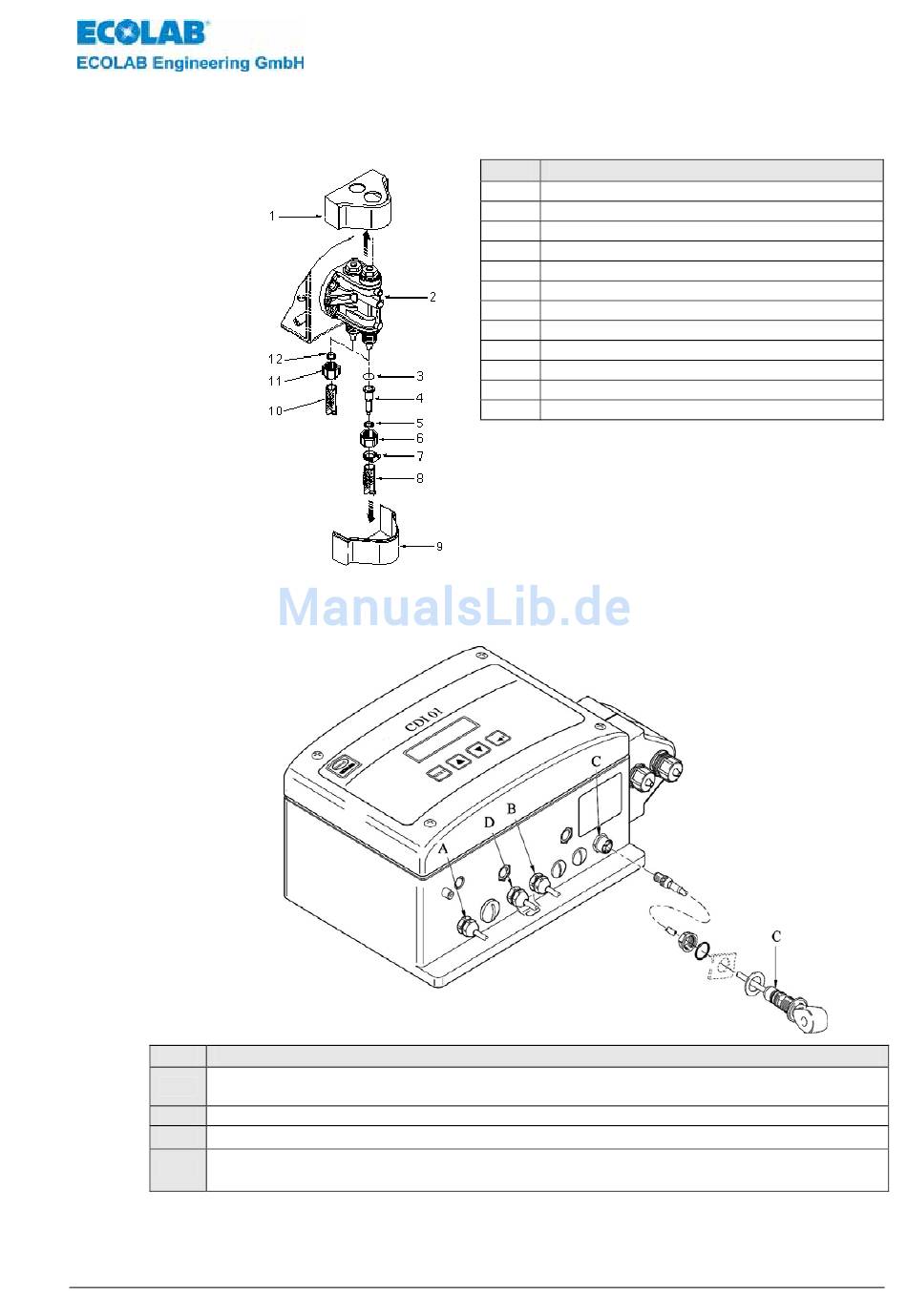

5.2 Exploded view Connection of suction and metering hoses to the detergent
metering pump
fig. 5.2
5.3

Exploded view "Electrical connection"

fig. 5.3
Pos. Designation
Cable entry - Power supply to unit version
A
(240 V AC, 15 VA / 120 V AC, 30 VA / 24 VA, 15 VA)
B Cable entry - Detergent-empty signal
C Socket connection - Conductivity sensor
Cable Entry – enable signals (zero potential) for remote metering and pre-metering
D
operations
Only use with add-on-board 223552 in article no.:
417101089_CDI01.doc
Pos. Designation
1 Upper cover
2 Pump head
3 O-Ring
4 Hose adaptor
5 Clamping ring
6 Union nut
7 Hose clamp
8 Metering hose
9 Lower cover
10 Suction hose
11 Union nut
12 O-Ring
123524
123526
123528
- 41 - Rev.: 4-01/10
