7

Operation level

The unit can be turned off even during operation.
From the operating level you can gain access to the service-, parameter- and
configuration level.
7.1

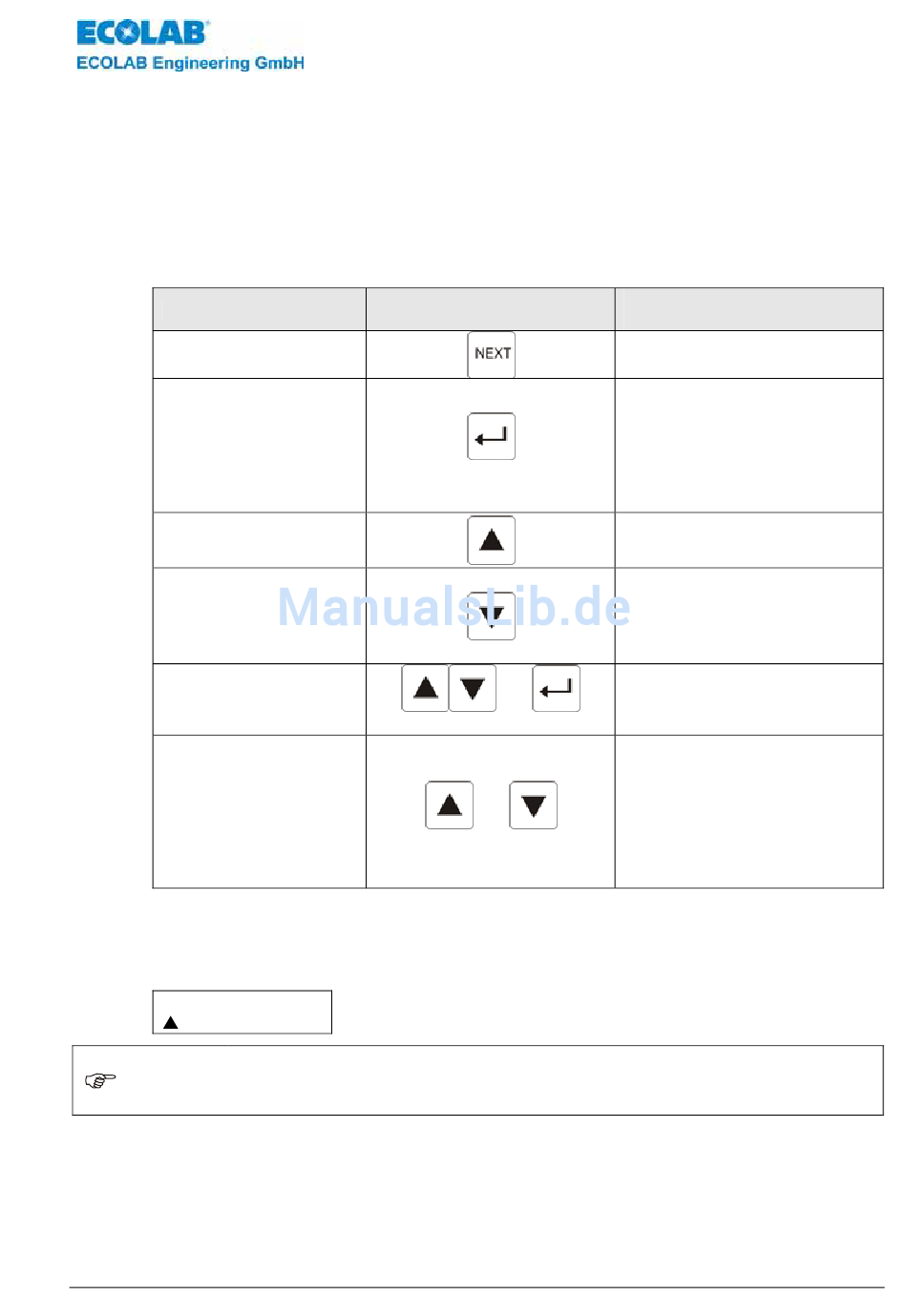

Button functions

Operation level
Call up the menu
"access code"
Display of the
unbalanced conductivity
value when button is
pushed (with a * in front
of the conductivity
value)
Select the access code
To increase the access
code value.
To decrease the access
code value.
Switch to the next
display in the
information level.
Switch off the unit. Start
again by pressing any
button
Switch to the
information level.
(Display showing
nominal values for
detergent concentration
and Tkα as well as pre-
metering and max.
metering time)
7.2

Display indications - explanation

7.2.1

Operation

CDI 01
150 mS/cm 85°C
The conductivity display flashes for conductivity values >200mS/cm (conductivity value is
outside of the nominal value adjustment limit)
NOTE
When the conductitivity and temperature measuring ranges are fallen short of,
flashing --- is displayed.
417101089_CDI01.doc
Button
(SEL)
und
(press together for min. 5 Sec.)
and
(press together briefly)
The normal operating display shows the following information: type
of unit, mode of operation, conductivity, washing tank temperature
- 46 -
Service-, parameter- and
configuration level
To call up a menu. To return to
the starting level.
To call up a menu. To scroll within
a menu. To shift the cursor to the
next digit.
To increase a value within a
menu.
To decrease a value within a
menu.
