16.1.2

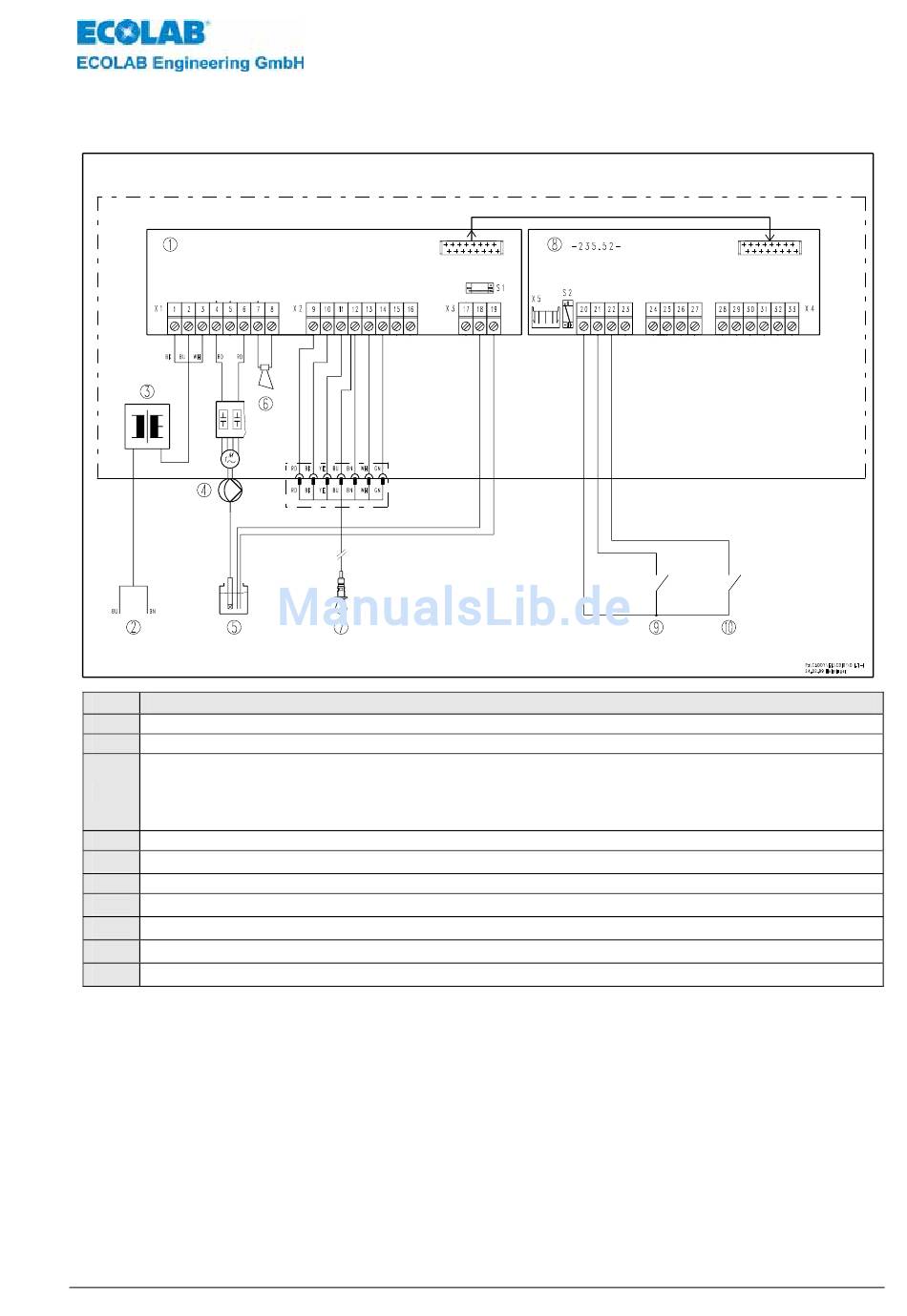

Connecting scheme CDI 01 with external enabling signals "zero-potential"

fig. 16.2
2.876.70
X1
Pos. Designation
1 Motherboard
2 Supply voltage for detergent metering unit
Line transformator for article-no.
123524: 240/ 2x12 VAC, 15VA
3
123526: 120/ 2x12 VAC, 30VA
123528: 24/ 2x12 VAC, 15VA
4 Detergent metering pump
5 Detergent
6 Piezo buzzer
7 Conductivity probe with temperature probe
8 Additional PCB
9 Metering enable external zero potential
10 Pre-metering external zero potential
417101089_CDI01.doc - 63 - Rev.: 4-01/10
