7.4.2 Electrical connection with cable

The electric cylinder wit potentiometer is supplied with an Amphenol device plug, number of
poles 6 + PE; series C16-1.
Thermoswitch
M
S1
S2
Linch pin

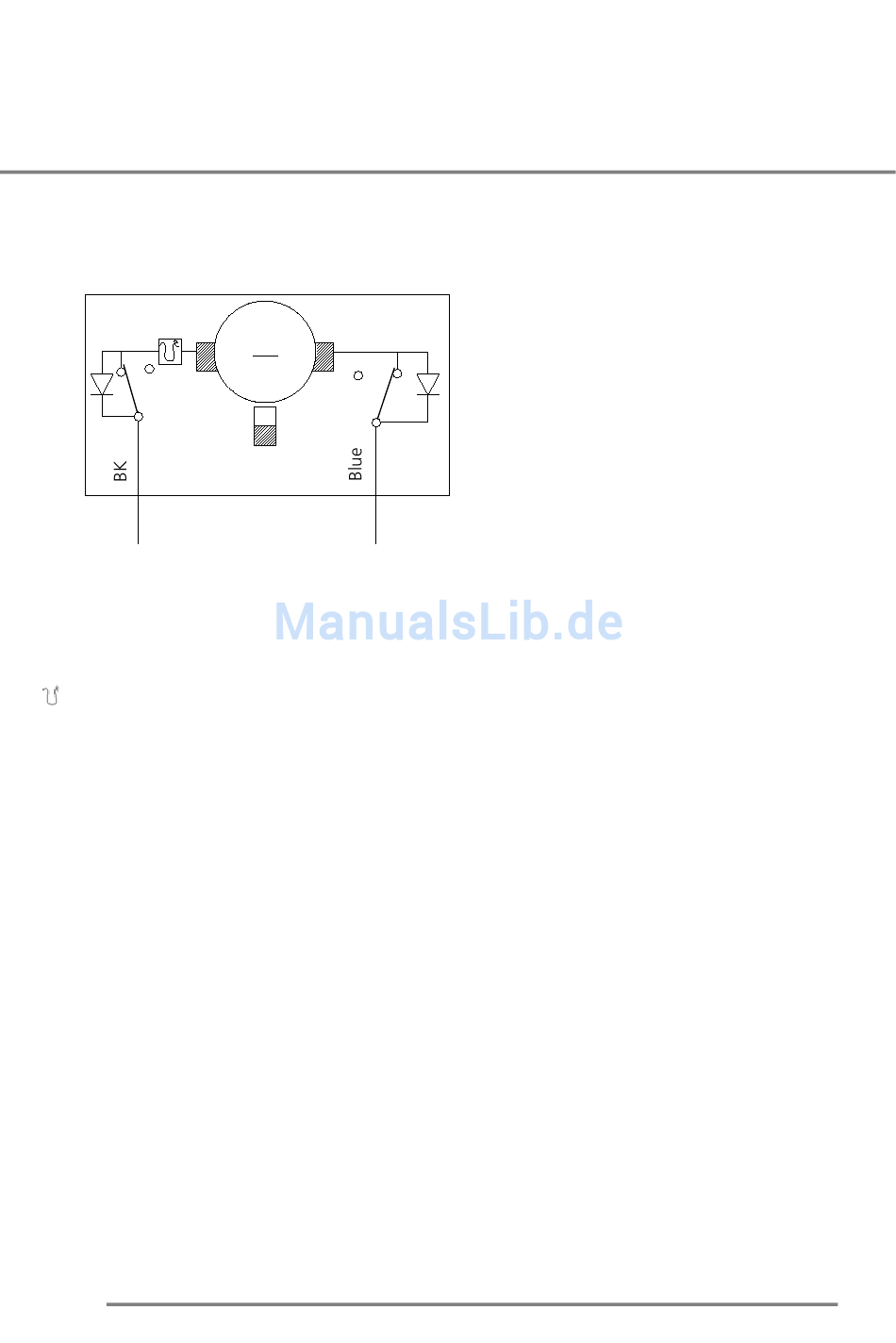

S1= Limit switch for traversing direction -extract-
S2= Limit switch for traversing direction -retract-
M= Permanent magnet motor
= Thermoswitch
With (+) at connection 1 and (-) at connection 2: the electric cylinder moves in the direction:
extract.
You can change the direction of movement by reversing the polarity of the connections - No. 1
and No. 2.
Other wiring is carried out by the customer.
