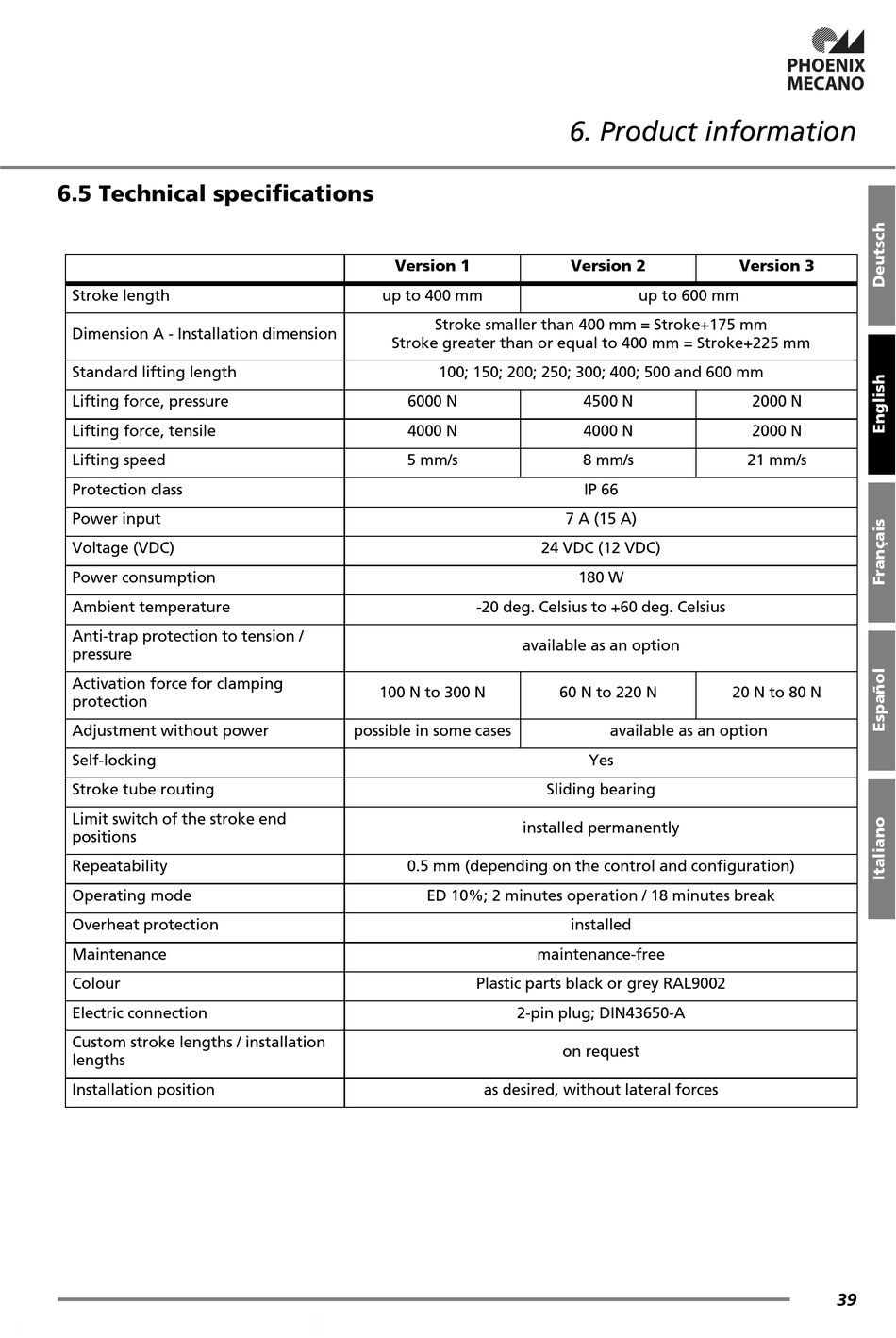

6.5 Technical specifications
Stroke length
Dimension A - Installation dimension
Standard lifting length
Lifting force, pressure
Lifting force, tensile
Lifting speed
Protection class
Power input
Voltage (VDC)
Power consumption
Ambient temperature
Anti-trap protection to tension /
pressure
Activation force for clamping
protection
Adjustment without power
Self-locking
Stroke tube routing
Limit switch of the stroke end
positions
Repeatability
Operating mode
Overheat protection
Maintenance
Colour
Electric connection
Custom stroke lengths / installation
lengths
Installation position
Version 1
up to 400 mm
Stroke smaller than 400 mm =Stroke+175 mm
Stroke greater than or equal to 400 mm = Stroke+225 mm
100; 150; 200; 250; 300; 400; 500 and 600 mm
6000 N
4000 N
5 mm/s
-20 deg. Celsius to +60 deg. Celsius
available as an option
100 N to 300 N
possible in some cases
installed permanently
0.5 mm (depending on the control and configuration)
ED 10%; 2 minutes operation / 18 minutes break
Plastic parts black or grey RAL9002
2-pin plug; DIN43650-A
as desired, without lateral forces
6. Product information
Version 2
up to 600 mm
4500 N
4000 N
8 mm/s
IP 66
7 A (15 A)
24 VDC (12 VDC)
180 W
60 N to 220 N
available as an option
Yes
Sliding bearing
installed
maintenance-free
on request
Version 3
2000 N
2000 N
21 mm/s
20 N to 80 N
39
