7.6 Electrical connection

When switching the lifting columns, take particular care that the generator
short-circuit brake has been selected for switching the motor. Otherwise the lifting
column may run to "Block" and will be destroyed.
Connection (2.5 m) on the RK synchronous controller.

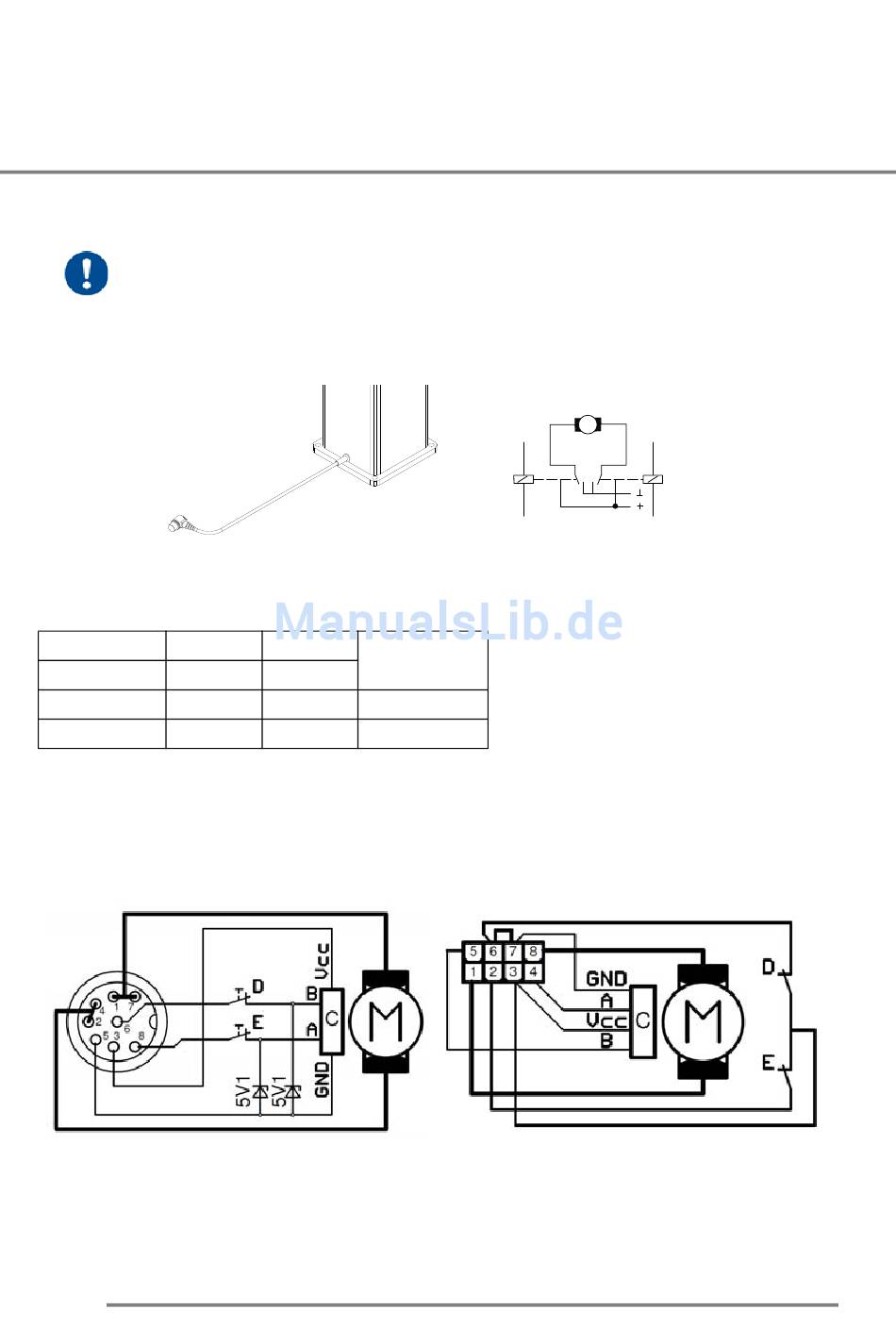

Wiring for the synchronous controller with 8-pin connector.
Motor direction of rotation
DIN plug Pin 1 + 7
Mini-Fit Jr. Pin 8 M-
1
2
Wiring diagrams
DIN plug
A = Hall sensor output A (open collector)
B = Hall sensor output B (open collector)
C = Hall sensor
D = Upper limit switch
E = Lower limit switch
Vcc = Power supply (+5V to +24V)
GND = Power supply ground
62
Pin 2 + 4
Pin 1 M+
+ -
- +
Wiring diagram
K1
Direction
Retract
Extend
Mini-Fit Jr.
A = Hall sensor output A (open collector)
B = Hall sensor output B (open collector)
C = Hall sensor
D = Upper limit switch
E = Lower limit switch
Vcc = Power supply (+5V to +24V)
GND = Power supply ground
M
K2
