7. Life phases

7.4 Electrical connecting possibilities

7.4.1 Electrical connection with plug

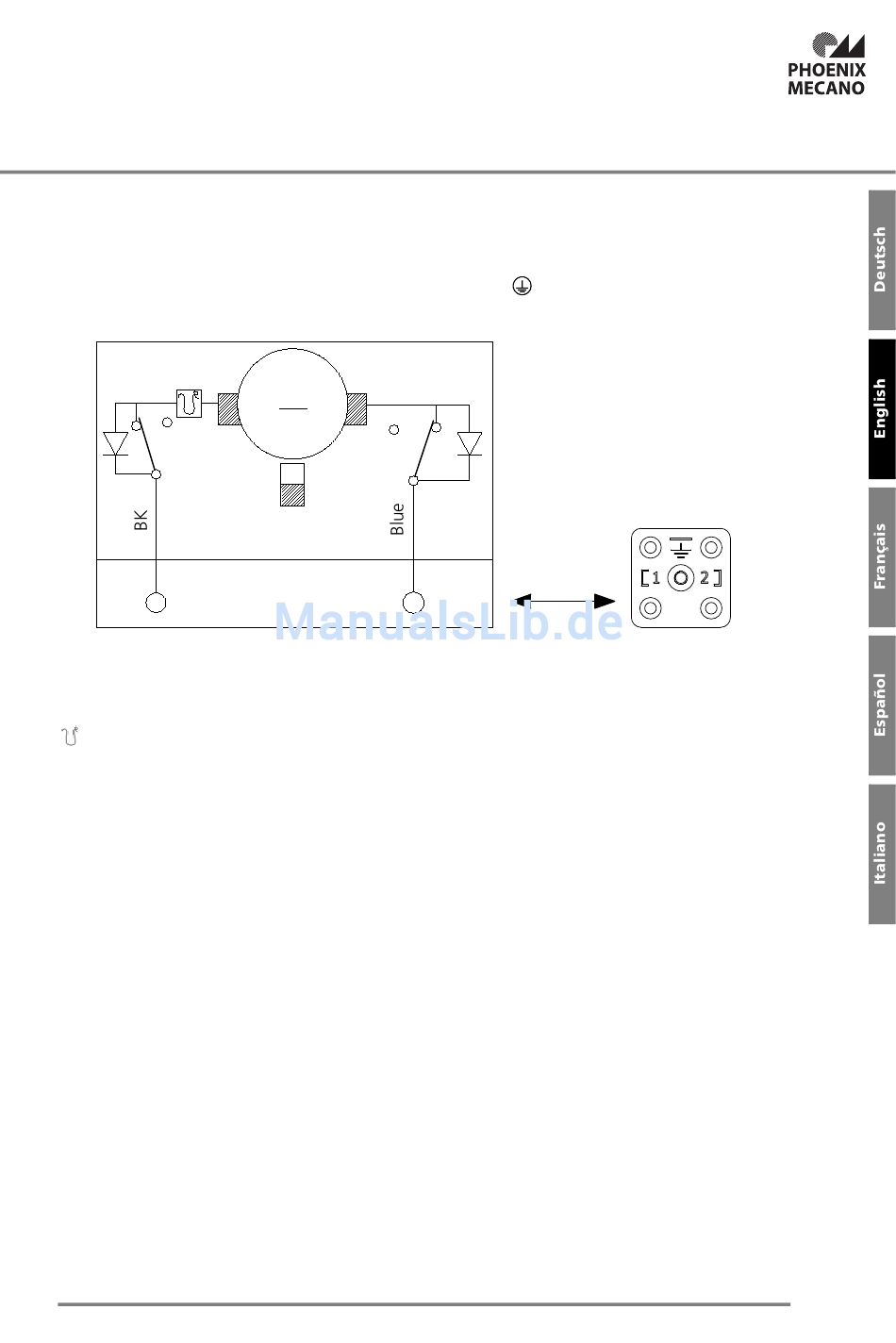

The electric cylinder is installed with a 2-pin device socket + as standard. The socket complies
with DIN43650-A / ISO4400.
Thermoswitch
M
S1
S2
Linch pin
1
2
S1= Limit switch for traversing direction -extract-
S2= Limit switch for traversing direction -retract-
M= Permanent magnet motor
= Thermoswitch
With (+) at connection 1 and (-) at connection 2: the electric cylinder moves in the direction:
extract.
You can change the direction of movement by reversing the polarity of the connections - No. 1
and No. 2.
Other wiring is carried out by the customer.
