Issue
STUFE 2 - TECHNIK-SERVICE BENUTZER
LEVEL 2 - USER'S TECHNICAL DEPARTMENT
NIVEAU 2 - SERVICE TECHNIQUE UTILISATEUR
LIVELLO 2 - SERVIZIO TECNICO UTENTE
NIVEL 2 - SERVICIO TÉCNICO USUARIO

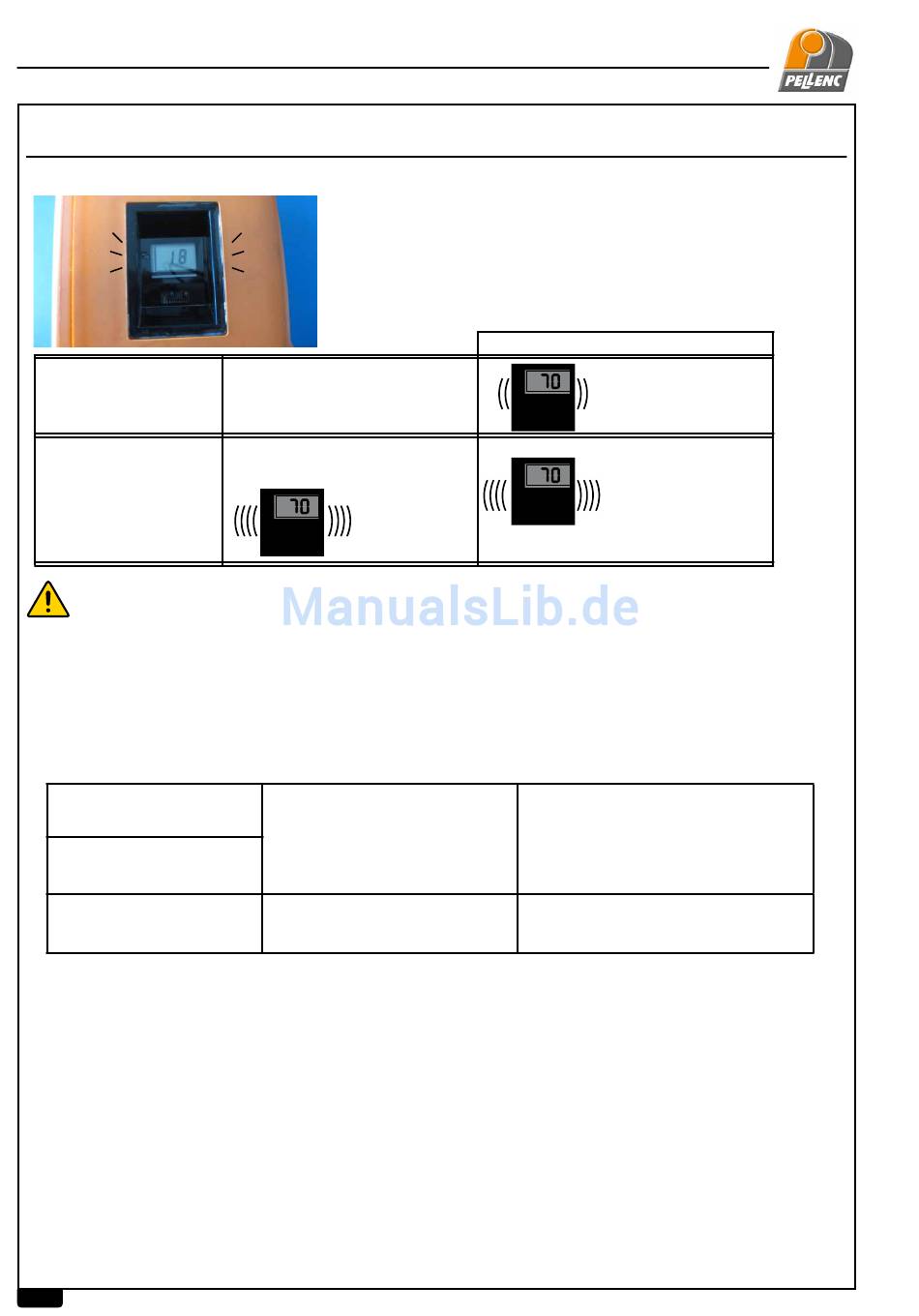

4/ La pantalla de la batería se pone a centellear, indica el consumo de la herramienta.
4/ L'afficheur de la batterie se met à clignoter, elle indique la consommation de l'outil.
4/ Die Akkuanzeige beginnt zu blinken und zeigt den Stromverbrauch des Geräts an.
4/ The battery display starts flashing; it indicates the tool's consumption.
4/ Il display della batteria si mette a lampeggiare, indicando il consumo dello strumento.
Da 50 Watt ---> 99 Watt
De 50Watts ---> 99 Watts
From 50Watts ---> 99
De 50 vatios ---> 99 vatios
Von 50 ---> 99 W
Watts
De 100Watts ---> 999
Da 100 Watts ---> 999
De 100 vatios ---> 999
From 100Watts ---> 999
Von 100 ---> 999 W
vatios
Watts
Watts
Watts
Valeur relevée outil à vide tête montée sans outil
Aufgezeichneter Wert bei Geräteleerlauf, Kopf ohne Gerät montiert
Value taken for empty tool, head mounted without tool
Valor leído herramienta de vacío cabeza montada sin herramienta
Valore rilevato con strumento a vuoto testa montata senza strumento
Instrucción: LECTURA CONSUMO INSTANTÁNEO
Istruzioni: LETTURA CONSUMO ISTANTANEA
Instructions: INSTANT CONSUMPTION READING
Anmerkung: ABLESEN DES AKTUELLEN STROMVERBRAUCHS
Notice : LECTURE CONSOMMATION INSTANTANÉE
Attenzione, quando lo strumento consuma meno di 50 Watt, il display non lampeggia.
Achtung: Wenn das Gerät weniger als 50 W verbraucht, blinkt die Anzeige nicht.
Note: when the tool uses less than 50 Watts, the display does not flash.
Atención, cuando la herramienta consume menos de 50 vatios, la pantalla no centellea.
Attention, lorsque l'outil consomme moins de 50 Watts, l'afficheur ne clignote pas.
5/ Leer el valor indicado al cabo de 1 minuto, debe ser inferior a 100 vatios (todos los cabezales)
5/ Rilevare il valore indicato dopo 1 minuto, quest'ultimo deve essere inferiore a 100 Watt (per tutte le
5/ Write down the value indicated after 1 minute; it must be lower than 100 Watts (All heads)
5/ Notieren Sie nach 1 Minute den angezeigten Wert. Er muss unter 100 W liegen (gilt für alle
5/ Relever la valeur indiquée au bout d'1 minute, elle doit être inférieure à 100 Watts (Toutes têtes)
teste)
Schneidköpfe).
From ''50'' ---> ''99''
Von ''50'' ---> ''99''
Da ''50'' ---> ''99''
De ''50'' ---> ''99''
De ''50'' ---> ''99''
(1 lampeggiamento / 2 secondi)
(1 clignotement / 2 secondes)
(1 centelleo / 2 segundos)
(1 Blinken / 2 Sekunden)
(1 flash / 2 seconds)
From ''''10'''' ---> ''''20''''
Von ''''10'''' ---> ''''20''''
De ''''10'''' ---> ''''20''''
De "10" ---> "20''''
Da ''10'' ---> ''20''
(1 lampeggiamento / secondo)
(1 clignotement / seconde)
(1 Blinken / 1 Sekunde)
(1 centelleo / segundo)
(1 flash / second)
From ''''21'''' ---> ''''99''''
Von ''''21'''' ---> ''''99''''
Da ''''21'''' ---> ''''99''''
De ''''21'''' ---> ''''99''''
De "21" ---> "99''''
(1 lampeggiamento / secondo)
(1 clignotement / seconde)
(1 Blinken / 1 Sekunde)
(1 centelleo / segundo)
(1 flash / second)
Se superiore a 100 Watt rimandare indietro lo strumento al costruttore.
Wenn die Leistung über 100 W liegt senden Sie das Gerät bitte dem Hersteller.
If more than 100 Watts, return the tool to the manufacturer.
Si es superior a 100 vatios, devolver la herramienta al constructor.
Si supérieure à 100 Watts retourner l'outil chez le contructeur.
(se necessario, rivedere i punti sulla manutenzione)
(revisar los puntos del mantenimiento, si procede)
(review maintenance points if necessary)
(Prüfen Sie ggf. die Wartungspunkte)
(revoir les points de l'entretien si besoin)
18
Documento del taller «EXCELION 1200» Edición
Werkstattdokument «EXCELION 1200» Ausgabe
Documento officina «EXCELION 1200» Edizione
Document atelier EXCELION 1200 Édition
"EXCELION 1200" Workshop document
ref. : DOCUMENT_ATELIER_EXCELION_1200_A_2016_GER
ref. : DOCUMENT_ATELIER_EXCELION1200_A_2016_SPA
réf. : DOCUMENT_ATELIER_EXCELION1200_A_2016_FRE
rif. : DOCUMENT_ATELIER_EXCELION1200_A_2016_ITA
ref: DOCUMENT_ATELIER_EXCELION1200_A_2016_ENG
01/2016
Notice : LECTURE CONSOMMATION INSTANTANÉE
Istruzioni: LETTURA CONSUMO ISTANTANEA
Instructions: INSTANT CONSUMPTION READING
Anmerkung: ABLESEN DES AKTUELLEN
Instrucción: LECTURA CONSUMO INSTANTÁNEO
Quando uno strumento funziona su una batteria ed il
When a tool is battery operated and uses more than
STROMVERBRAUCHS
Lorsqu'un outil fonctionne sur une batterie et que son
Cuando una herramienta funciona en una batería y su
utilisation est supérieure à 50W alors l'afficheur indique la
Wenn ein Gerät mit einem Akku betrieben wird und
50W, the display indicates the tool's instant consumption.
utilización es superior a 50W, entonces la pantalla indica
suo uso è superiore a 50W, il display indica il consumo
consommation instantanée de l'outil.
sein Verbrauch 50 W übersteigt, zeigt das Display
el consumo instantáneo de la herramienta.
istantaneo dello strumento.
den aktuellen Verbrauch des Geräts an.
Un centelleo cada
One flash every
Un clignotement toutes les
Un lampeggiamento ogni
Blinkfrequenz alle 2 Sekunden
2 secondes (consommation en watts)
2 seconds (consumption in watts)
2 segundos (consumo en vatios)
2 secondi (consumo in watt)
(Stromverbrauch in Watt)
Un clignotement par seconde
One flash per second (consumption
Un lampeggiamento al secondo
Un centelleo por segundo (consumo
Blinkfrequenz jede Sekunde
(consumo in decawatt)
en decavatios)
en deca-watts)
(consommation en déca-watts)
(Stromverbrauch in Deka-Watt)
%
X10
X10
X10
X10
X10
Herramienta OK
Strumento Ok
Gerät i.O.
Outil OK
Tool OK
Herramienta no OK
Strumento non Ok
Gerät nicht i.O.
Outil non OK
Tool not OK
01/2016
01/2016
01/2016
01/2016
EXEMPLE
EJEMPLO
EXAMPLE
ESEMPIO
BEISPIEL
%
= 70 WATTS
= 70 VATIOS
= 70 WATTS
= 70 WATTS
= 70 WATT
%
= 700 WATTS
= 700 VATIOS
= 700 WATTS
= 700 WATTS
= 700 WATT
Puissance inférieure à 100 watts
Potencia inferior a 100 vatios
Potenza inferiore a 100 watt
Power lower than 100 watts
Leistung unter 100 W
Puissance supérieure à 100 watts
Potencia superior a 100 vatios
Potenza superiore a 100 watt
Power exceeding 100 watts
Leistung über 100 W
