Adjustment / assembly instructions
INFORMATION
Ensure that the brake force of both rear wheels is adjusted equally.
INFORMATION
Make sure that the drum brake engages with sufficient force only when the manual brake lever is set
to the second ratchet position.

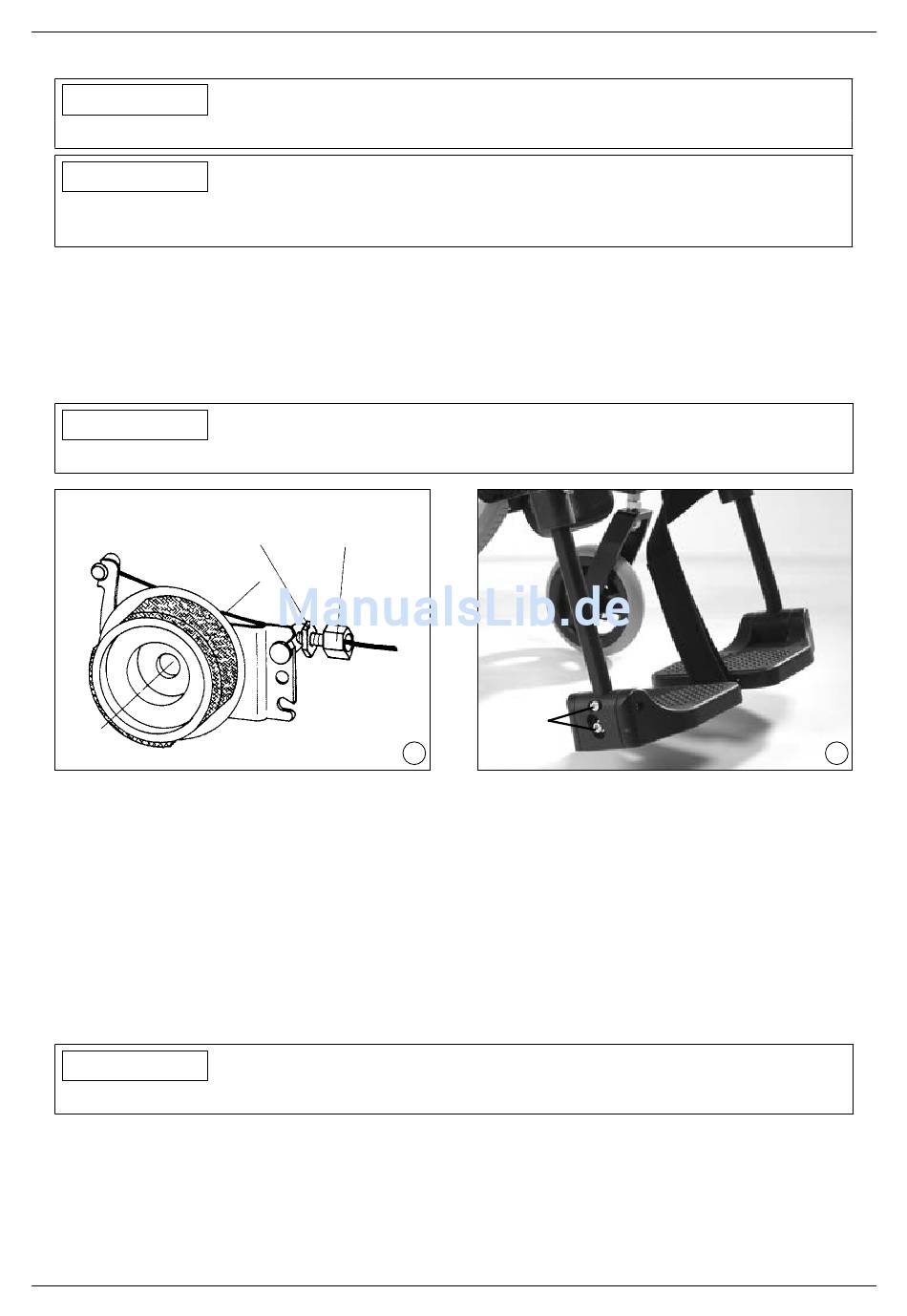

6.7 Adjusting the footplate angle (Fig� 57, item A)
Prior to adjusting the footplate angle, loosen the screw connections as indicated in the figure.
Then set the footplate to the desired angle.
INFORMATION
Make sure to re-tighten the loosened screw connections. The proper torque is 6 Nm.
6.8 Adjusting the lower leg length (Fig� 58/59)
Standard footrest, elevating footrest
By loosening the set screw, the footplate can be adapted to your lower leg length and to the
thickness of your seat cushion (standard footrest = Fig. 58; elevating footrest = Fig. 59).
Make sure during adjustment that the footrest bar is slid into the swivel segment at least 40 mm.
A mark on the footrest bar also indicates the minimum distance the bar must be inserted dur-
ing installation.
INFORMATION
After having made adjustments, retighten the set screw to a torque of 6 Nm.
76 | Ottobock
B A
56
M1 Intro · M2 Effect · M3 Hemi · M4 XXL · M5 Comfort · M6 Junior · Asia
A
57
