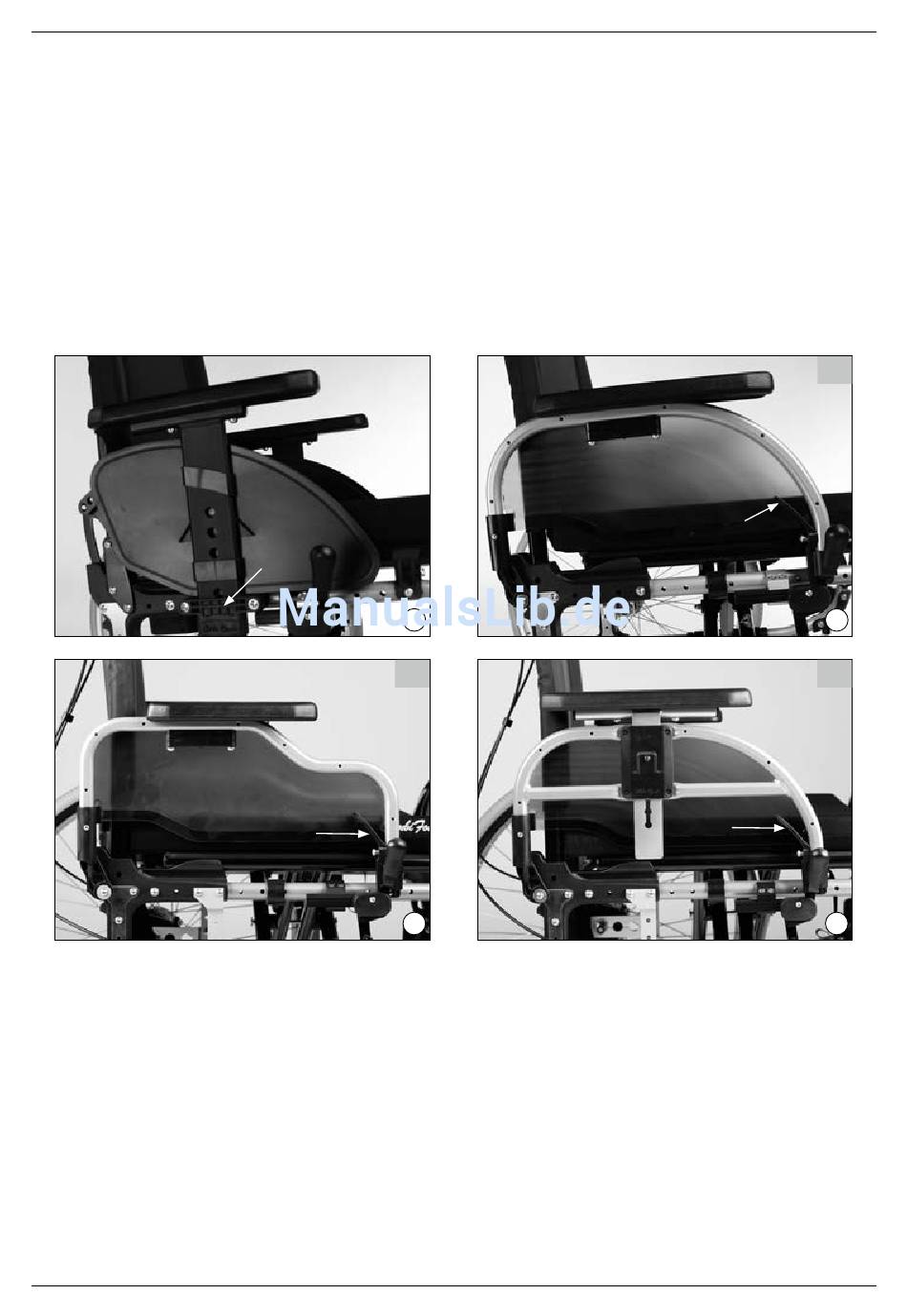

5.5 Plug-on side panels (Fig� 25)
These side panels can be removed for getting into or out of the wheelchair. To remove the side
panels, pull them out of the side panel attachment device (Fig. 25, item A). Moreover, the arm-
rest can be adjusted in height (see Section 6.10).
5.6 Desk side panels (standard/stepped/height-adjustable; Fig� 26)
These side panels can be swung away to the rear or removed for transfer. To flip up the side
panel, manipulate the release lever behind the side panel tube (Fig. 26 A/B/C, item A). Moreo-
ver, the armrest can be adjusted in height (see Section 6.10).
5.7 Plug-on wheel lock Lever extension (Fig� 27)
The extension makes operation of the wheel lock easier for users with limited hand function.
5.8 Rear wheels with drum brake (Fig� 28)
The drum brakes allow the attendant to comfortably and safely brake the wheelchair. The rear
wheels remain removable via the quick-release axle system.
M1 Intro · M2 Effect · M3 Hemi · M4 XXL · M5 Comfort · M6 Junior · Asia
A
25
B
A
26
Options
A
A
26
C
A
26
Ottobock | 65
