Product description

4 Product description
4

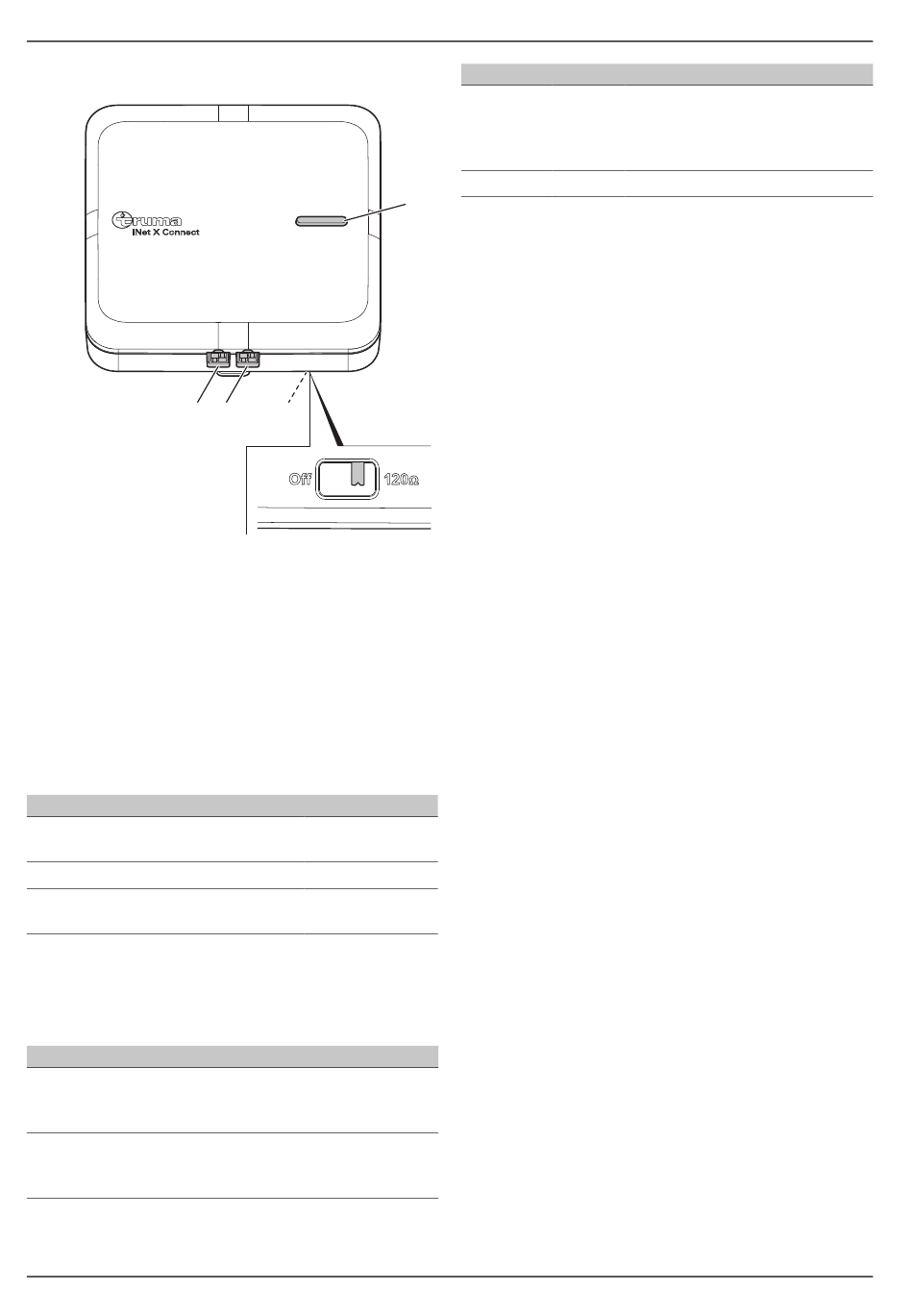

Fig. 1
1 LED button
2
Slide switch for activating (120 Ω) or deactivating
(Off) the termination resistor for the CAN bus
3 CAN2 connection
4
CAN1 connection
Setting the slide switch
The slide switch for the termination resistor on the

Connect is set to 120 Ω when delivered.
The following table shows when the slide switch must
be set to "Off".
CAN1 CAN2
cable is remains free
connected
remains free cable is connected 120 Ω
cable is cable is connected Off
connected
LED button
Depending on the operating mode (OM) of the Connect,
the LED button either does not light up or lights up in a
colour. The meaning of the colours is described in the
following table.
Colour OM Meaning
None Off The Connect has no power sup-
ply or is in standby mode (panel
is off).
White, Ready The Connect has established a
flashing connection to the panel and is
ready for operation.
16 EN
3 2
slide switch
120 Ω
Colour OM
White, GSM /
perma- LTE
nently illu- connec-
minated tion
Red Error
1
 To minimise disturbance to users, the flashing or
illuminated LED button dims after 5 minutes.
5

Scope of delivery

List of components in the order in which they are re-
quired for installation:
1 x Quick Installation Guide
1 x Cable, CAN, 1.2 m, m4f-m4f (cable with two iden-
tical plugs)
1 x Cable, CAN+120R, 0.5 m, e4f-x2 (cable with
one connector)
1 x Installation template with QR code
1 x Mounting plate iNet X
2 x Phillips DIN 7996-H, 4 x 15 mm, steel, galvanised
surface (button head cap screws with a Phillips
head)
1 x Truma iNet X Connect
6

Installation

The Connect is supplied with voltage via the panel. The
Connect does not require its own power supply. The
power supply for the Connect is provided via the cable
supplied.

DANGER
Electric shock from live parts
Live parts may have to be touched during instal-
lation.
Before installing the Connect:
Remove the 230 V connector cable from the

external socket.
Switch off the independent 230 V power

supply (e.g. solar panels, inverter, generator).
Switch off fuses and / or residual current

circuit-breakers (RCCB) in the vehicle.
6 .1

Choosing an installation location

The Connect is suitable for wall mounting on a level
•
surface.
The wall must be at least 7 mm thick.
•
Install the Connect in a location that is protected
•
from moisture and humidity.
Do not install the Connect between metal surfaces.
•
Keep a minimum distance of more than 30 cm be-
•
tween the built-in metal appliances (e.g. refrigerator,
microwave, stove) and the Connect.
For the best possible reception, install the Connect
•
in the upper area of the vehicle. If this is not pos-
sible, maintain a minimum distance of more than
50 cm from the floor.
Position the Connect as close as possible to the
•
panel (Fig. 2).
Truma iNet X Connect
Meaning
The Connect is connected to
the mobile phone network and
remote control is possible.
There is a malfunction.
