Faber KOLDING Installationsvorschrift Seite 62

EN

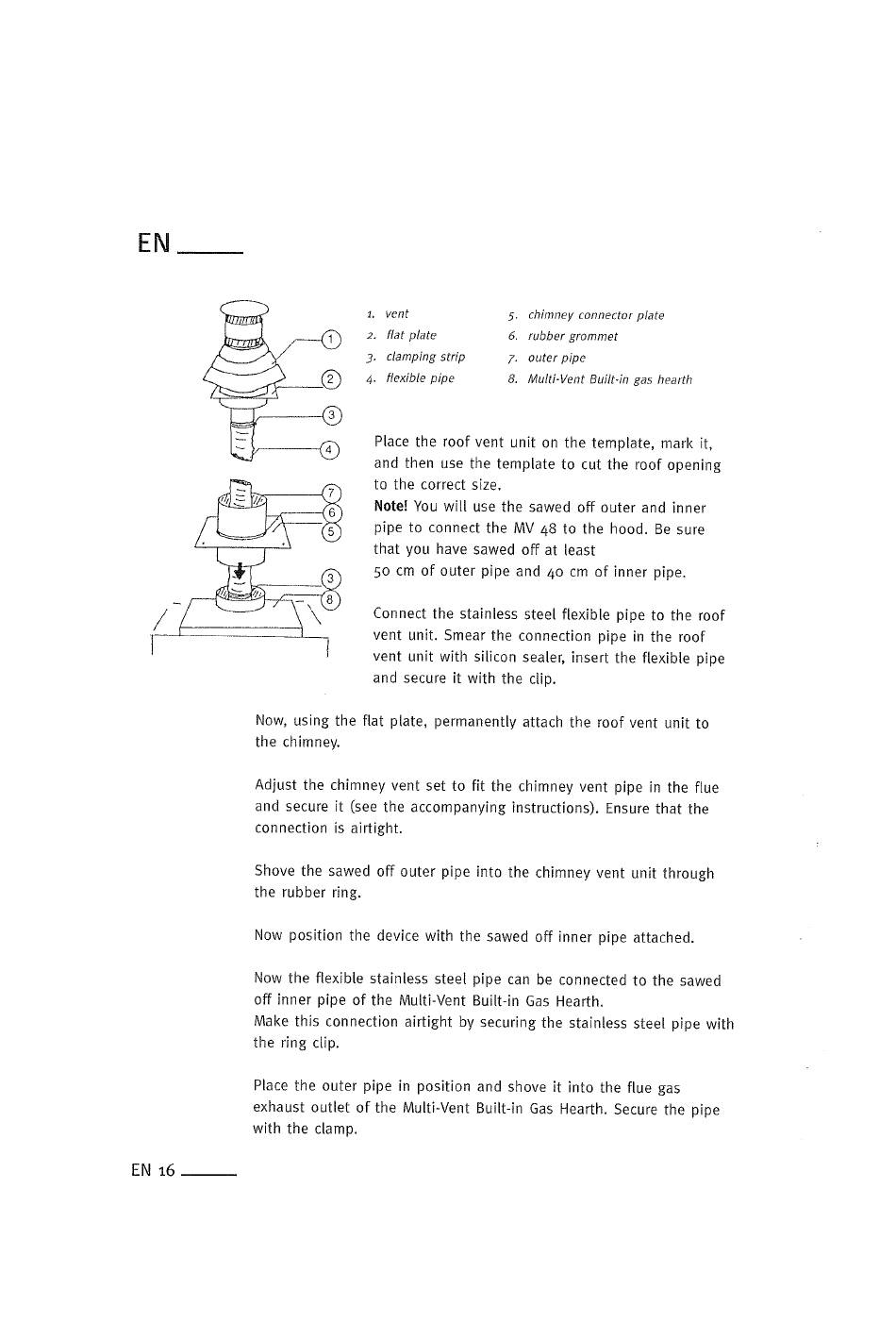

Now, using the flat plate, permanently attach the roof vent unit to
the chimney.
Adjust the chimney vent set to fit the chimney vent pipe in the flue
and secure it (see the accompanying instructions). Ensure that the
connection
Shovethe sawed off outer pipe into the chimney vent unit through
the rubber ring.
Now position the device with the sawed off inner pipe attached.
Now the flexible stainless steel pipe can be connected to the sawed
off inner pipe of the Multi-Vent
Make this connection airtight by securingthe stainless steel pipe with
the ring clip.
Placethe outer pipe in position and shove it into the flue gas
exhaust outlet of the Multi-Vent Built-in Gas Hearth. Securethe pipe
with the clamp.
EN 16
vent
flat plate
2.
clamping strip
3.
O
flexible pipe
4.
3
Place the roof vent unit on the template, mark it,
4
and then use the template to cut the roof opening
to the correct size.
7
Note! You will use the sawed
6
pipe to connect the MV 48 to the hood. Be sure
5
that you have sawed off at least
50 cm of outer pipe and 40 cm of inner pipe.
3
8
Connectthe stainless steel flexible pipe to the roof
vent unit. Smear the connection pipe in the roof
vent unit with silicon sealer,insert the flexible pipe
and secure it with the clip.
is airtight.
Built-in Gas Hearth.
chimney connector plate
5.
6. rubber grommet
outer pipe
7.
8. Multi-Vent Built-in gas hearth
off outer and inner
