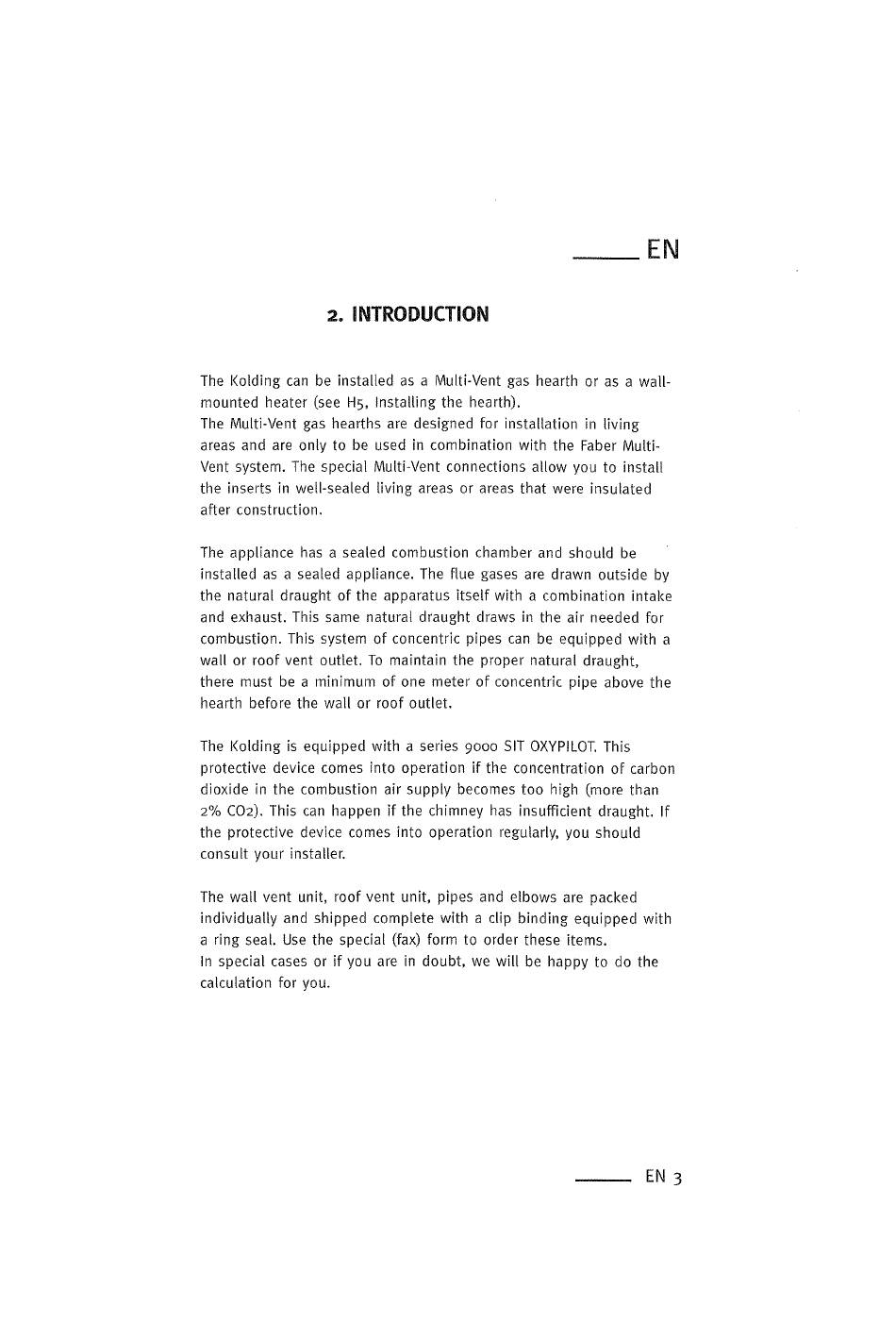

2. INTRODUCTION
The Kolding can be installed as a Multi-Vent gas hearth or as a wall-
mounted heater (see H5, Installing the hearth).
The Multi-Vent gas hearths are designed for installation in living
areas and are only to be used in combination
Vent system. The special Multi-Vent connections
the inserts in well-sealed
after construction.
The appliance has a sealed combustion
installed as a sealed appliance. The flue gases are drawn outside by
the natural draught of the apparatus itself with a combination
and exhaust. This same natural draught draws in the air needed for
combustion. This system of concentric pipes can be equipped with a
wall or roof vent outlet. To maintain the proper natural draught,
there must be a minimum of one meter of concentric pipe above the
hearth before the wall or roof outlet.
The Kolding is equipped with a series 9000 SIT OXYPILOT. T his
protective device comes into operation if the concentration of carbon
dioxide in the combustion air supply becomes too high (more than
2% C02). This can happen if the chimney has insufficient draught. If
the protective device comes into operation regularly, you should
consult your installer.
The wall vent unit, roof vent unit, pipes and elbows are packed
individually and shipped complete with a clip binding equipped with
a ring seal. Use the special (fax) form to order these items.
In special cases or if you are in doubt, we will be happy to do the
calculation for you.
with the Faber Multi-
allow you to install
living areas or areas that were insulated
chamber and should be
EN
intake
