6.1 GENERAL
The Kolding can be installed as a wall-mounted
exhaust is connected directly through the wall.

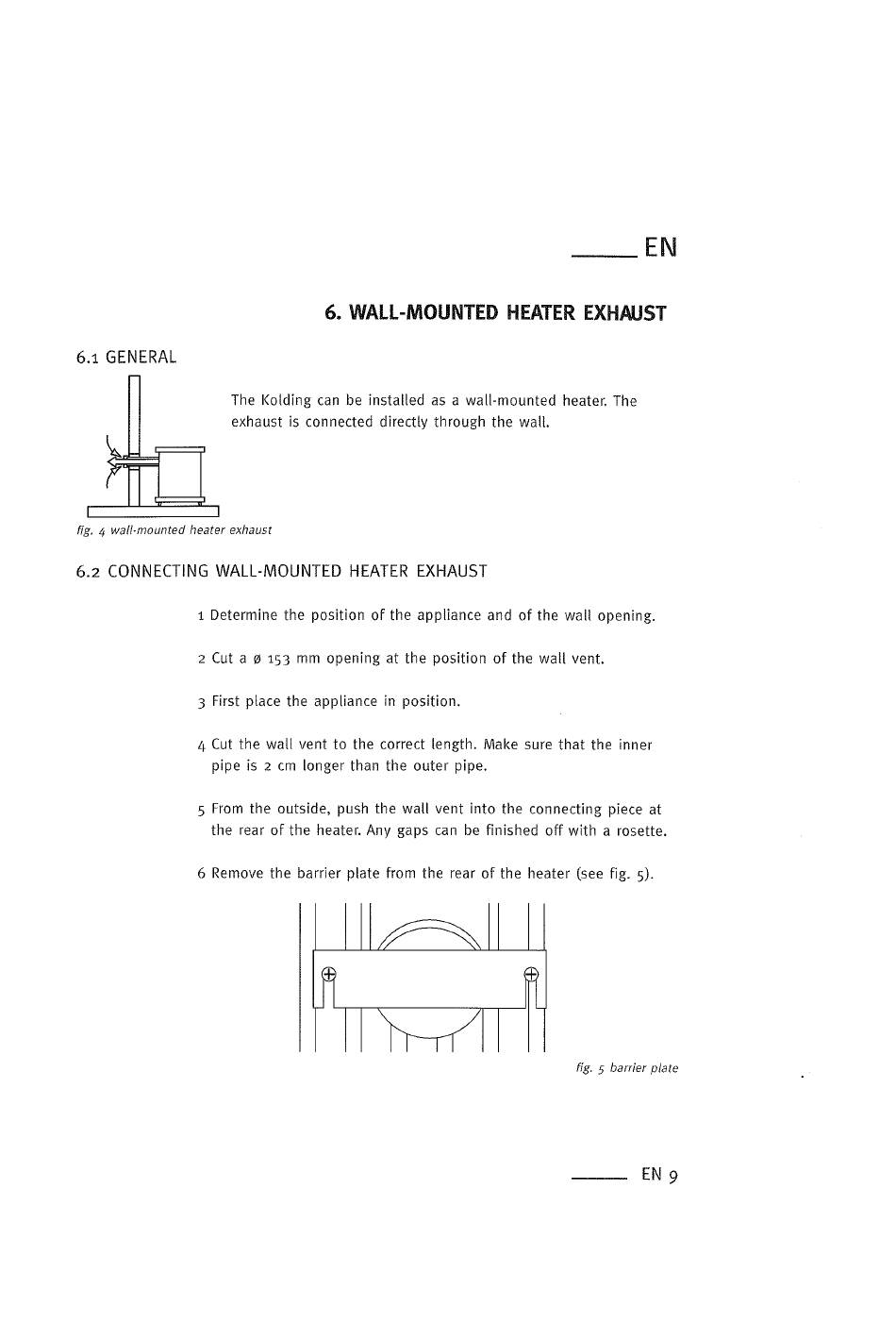

fig. 4 wall-mounted heater exhaust
6.2 CONNECTING WALL-MOUNTED
1 Determine the position of the appliance and of the wall opening.
2 Cut a ø 153 mm opening at the position of the wall vent.
3 First place the appliance in position.
4 Cut the wall vent to the correct length. Make sure that the inner
pipe is 2 cm longer than the outer pipe.
5 From the outside, push the wall vent into the connecting piece at
the rear of the heater. Any gaps can be finished off with a rosette.
6 Remove the barrier plate from the rear of the heater (see fig. 5).
6. WALL-MOUNTED
HEATER EXHAUST
EN
HEATER EXHAUST
heater. The
fig. 5 barrier plate
