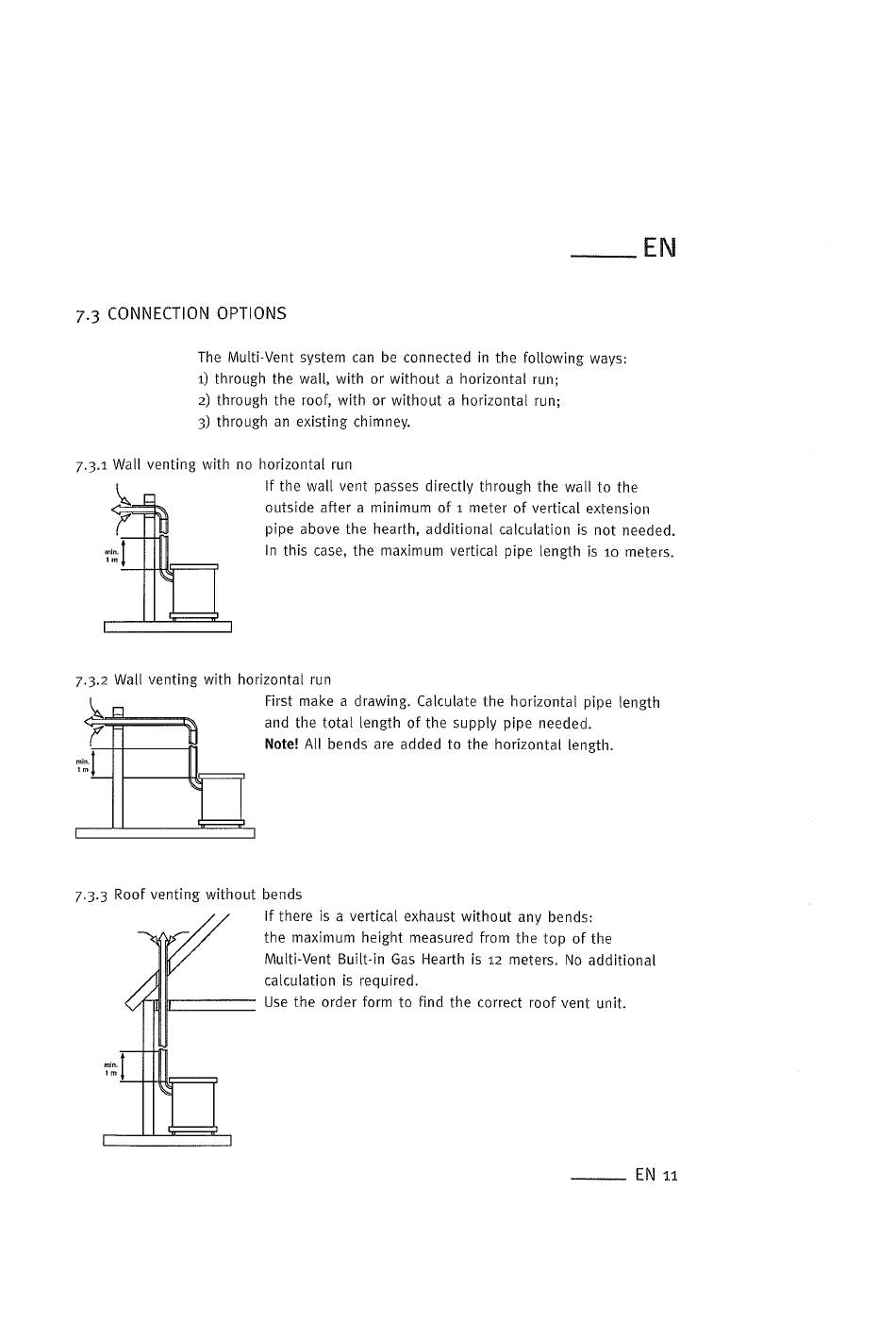

7-3 CONNECTION OPTIONS
The Multi-Vent system can be connected in the following ways:
1) through the wall, with or without
2) through the roof, with or without a horizontal
3) through an existing chimney.
7-3.1 Wall venting with no horizontal
7-3.2 Wall venting with horizontal run
7•3-3 Roof venting without bends
run
If the wall vent passes directly through the wall to the
outside after a minimum
pipe above the hearth, additional
In this case, the maximum vertical pipe length is 10 meters.
First make a drawing. Calculate the horizontal pipe length
and the total length of the supply pipe needed.
Note! All bends are added to the horizontal length.
If there is a vertical exhaust without any bends:
the maximum height measured from the top of the
Multi-Vent Built-in Gas Hearth
calculation is required.
Use the order form to find the correct
a horizontal run;
run;
of 1 meter of vertical extension
calculation is not needed.
is 12 meters. No additional
roof vent unit.
EN
EN 11
