EN

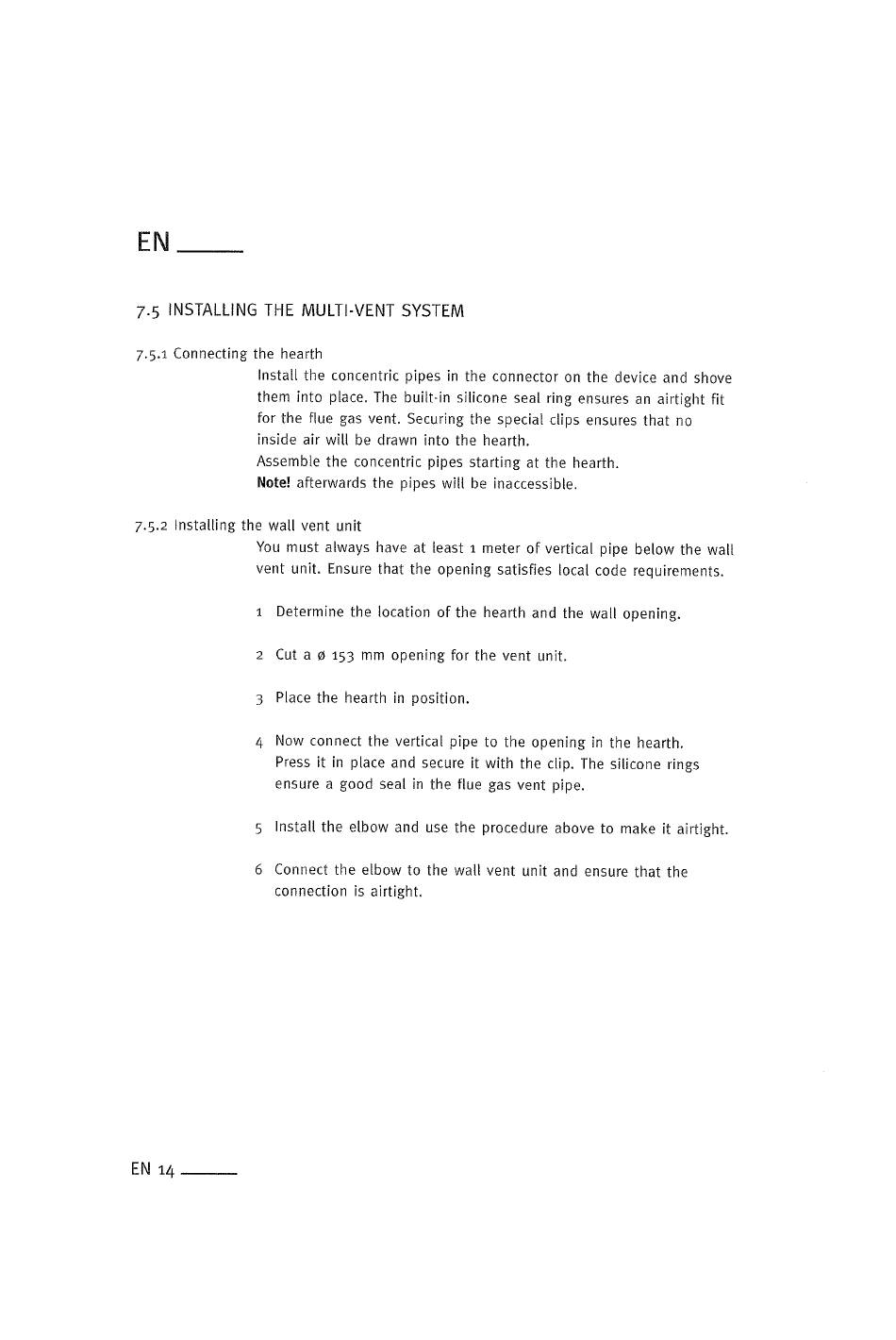

7-5 INSTALLING THE MULTI-VENT SYSTEM
7-5.1 Connecting the hearth
Install the concentric pipes in the connector
them into place. The built-in silicone seal ring ensures an airtight fit
for the flue gas vent. Securing the special clips ensures that no
inside
Assemble the concentric pipes starting at the hearth.
Note! afterwards
7-5.2 Installing the wall vent unit
You must always have at least 1 meter of vertical pipe below the wall
vent unit. Ensurethat the opening satisfies local code requirements.
1 Determinethe location of the hearth and the wall opening.
2 Cut a ø 153 mm opening for the vent unit.
3 Place the hearth in position.
4 Now connect the vertical pipe to the opening in the hearth.
Pressit in place and secure it with the clip. The silicone rings
ensure a good seal in the flue gas vent pipe.
5 Install the elbow and use the procedure above to make it airtight.
6 Connect the elbow to the wall vent unit and ensure that the
connection
EN 14
air will be drawn into the hearth.
the pipes will be inaccessible.
is airtight.
on the device and shove
