9.4.5 Lower lateral support bearings (27g)
(Fig. 15)
To adjust the lower lateral support bearings (27g), it may
be necessary to tilt the saw table (8) to 45°. (See 10.4)
1. Loosen the grub screws (27h) of the lower lateral sup-
port bearings (27g).
Use the 3 mm Allen key (B).
2. Turn the lower lateral support bearings (27g) until they
just no longer touch the band saw blade (6) (max. dis-
tance 0.5 mm).
Ensure that the lower lateral support bearings (27g)
are centred in relation to the band saw blade (6) and
parallel to each other.
3. Retighten the grub screws (27h) of the lateral lower
support bearings (27g).
Use the 3 mm Allen key (B).
9.5 Adjust the band saw blade guard
(5) (Fig. 16)
Note:
Check the setting before every cutting process and adjust
if necessary.
1. Loosen the clamping nut (4).
2. Lower the band saw blade guard (5) by hand as close
as possible (distance approx. 2-3 mm) to the work-
piece to be processed.
3. Retighten the clamping nut (4).
9.6 Setting the belt speed
(Fig. 11, 17, 18)
1. Open the lower housing door (11) by loosening the Al-
len screws (11b). Use a 5 mm Allen key (D).
2. Loosen the belt tensioning screw (29a) on the motor
(16) and press the motor (16) slightly upwards to
slacken the belt (29).
Use a 6 mm Allen key (E).
3. Place the belt (29) on the desired drive belt pulley (30)
and on the parallel running band wheel pulley (31) (S1
or S2).
Ensure that the notches interlock and that the belt (29)
is centred on the drive belt pulley (30) and the band
wheel pulley (31).
4. Press the motor (16) slightly backwards and tighten
the belt tensioning screw (29a) on the motor (16)
again to tension the belt (29).
Use a 6 mm Allen key (E).
5. Close the lower housing door (11) again and secure it
with the Allen screw (11b). Use a 5 mm Allen key (D).
36 | GB

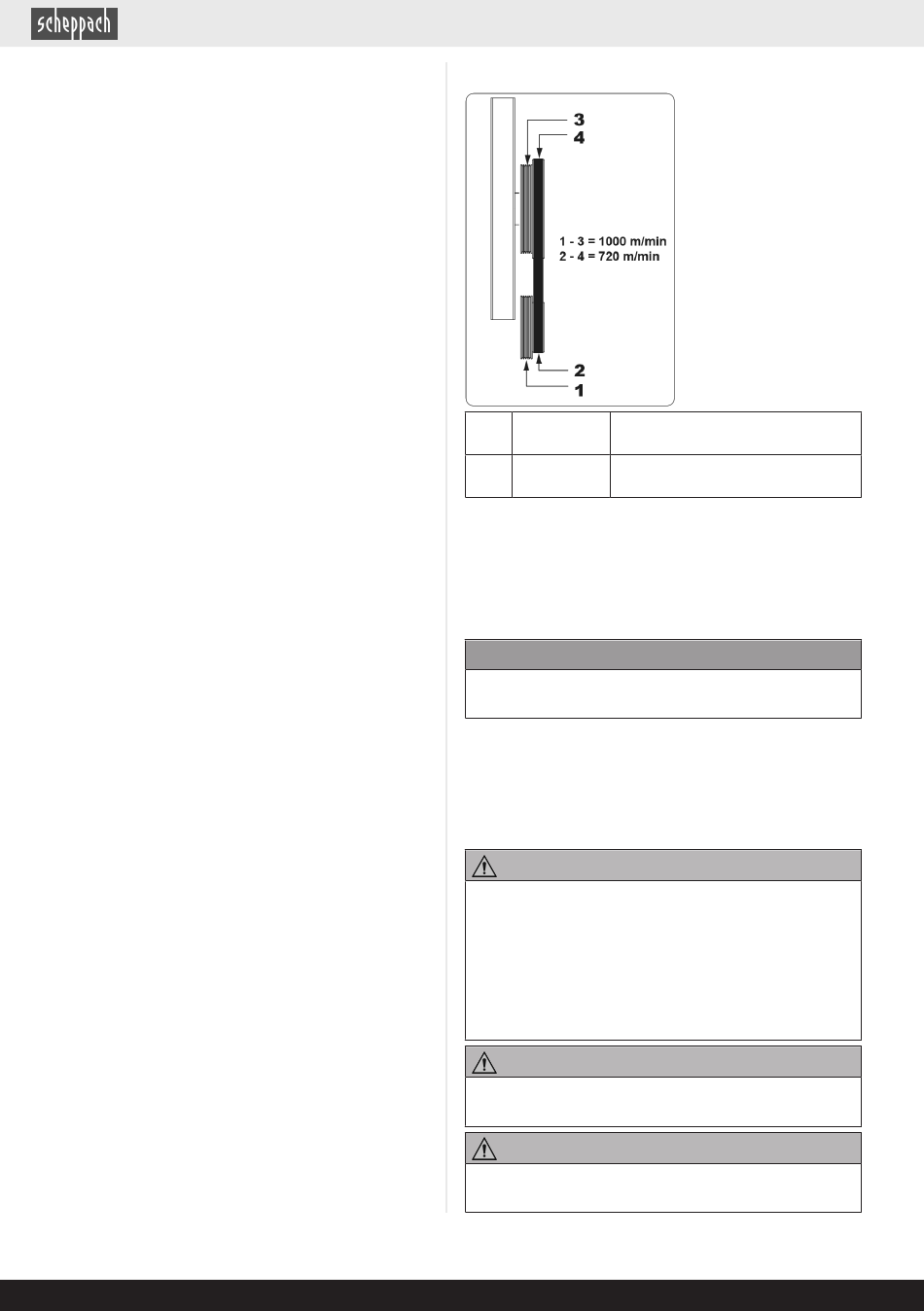

Speed ranges
2– 4
1 - 3
10 Operation
The band saw is a stationary saw with a driven band saw
blade that is closed to form a ring. The band saw enables
precise cuts to be made in wood and similar materials.
Please refer to the following descriptions for the function
of the controls.
ATTENTION
Always make sure the product is fully assembled
before commissioning!
Note:
The product is equipped with a safety switch. This means
that the product cannot be switched on if the doors are
open or have not been closed properly.
Make sure that both safety switches (11a) engage proper-
ly on the housing doors (11).
WARNING
Danger of injury!
The on/off switch and the safety switch must not be
locked!
– Do not work with the product if the switches are
damaged.
– Make sure the product is in working order before
each use.
WARNING
Always make sure that the tool attachment is fitted cor-
rectly!
WARNING
Make sure that the tool attachment is suitable for the
material to be processed.
www.scheppach.com
720 rpm Hardwood, hardwood-like
materials, fine cuts
1000 rpm Softwood, soft materials,
medium and coarse cuts
