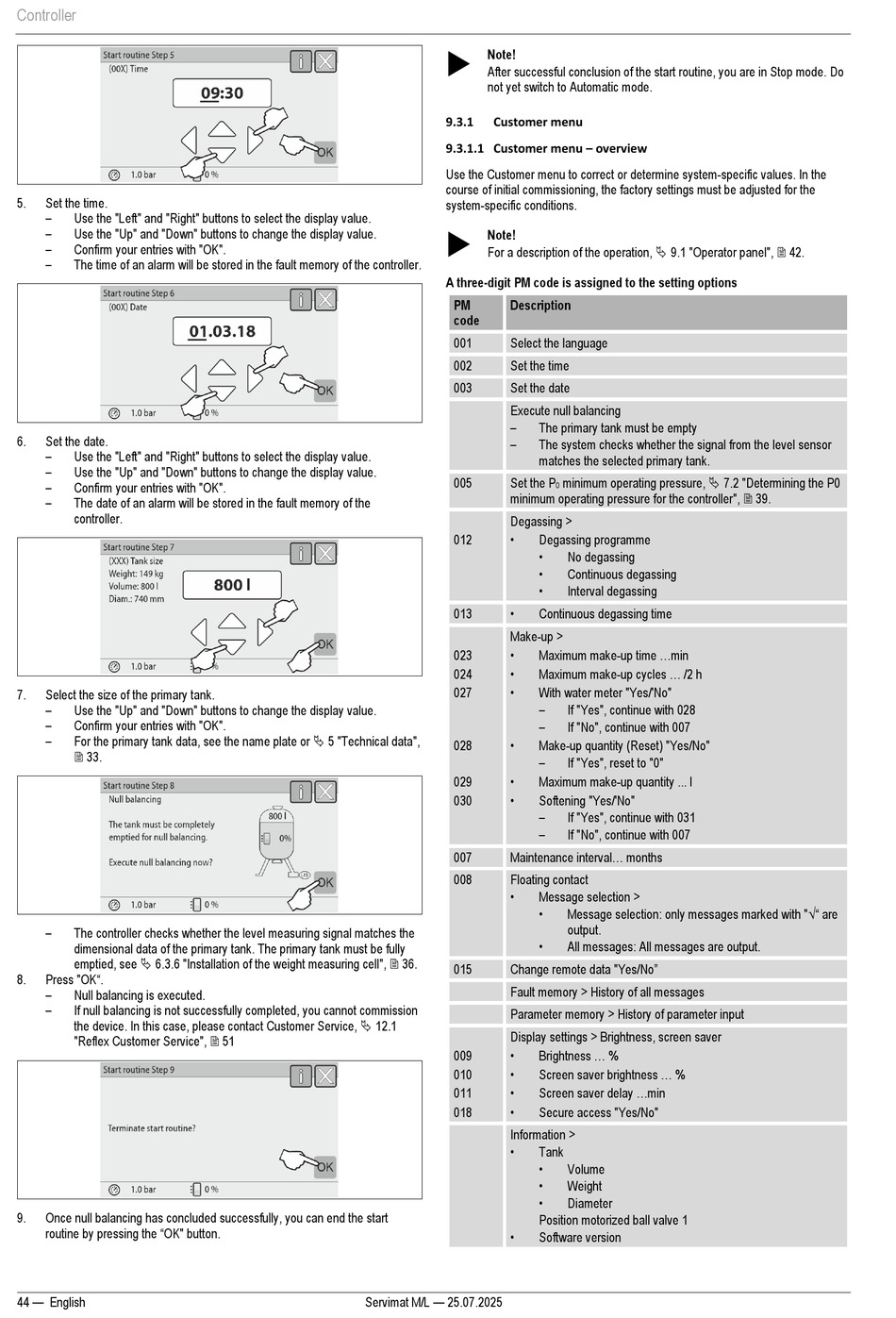

Reflex Servimat M Originalbetriebsanleitung Seite 44

Controller
5. Set the time.
– Use the "Left" and "Right" buttons to select the display value.
– Use the "Up" and "Down" buttons to change the display value.
– Confirm your entries with "OK".
– The time of an alarm will be stored in the fault memory of the controller.
6. Set the date.
– Use the "Left" and "Right" buttons to select the display value.
– Use the "Up" and "Down" buttons to change the display value.
– Confirm your entries with "OK".
– The date of an alarm will be stored in the fault memory of the
controller.
7. Select the size of the primary tank.
– Use the "Up" and "Down" buttons to change the display value.
– Confirm your entries with "OK".
– For the primary tank data, see the name plate or  5 "Technical data",
 33.
– The controller checks whether the level measuring signal matches the
dimensional data of the primary tank. The primary tank must be fully
emptied, see  6.3.6 "Installation of the weight measuring cell",  36.
8. Press "OK".
– Null balancing is executed.
– If null balancing is not successfully completed, you cannot commission
the device. In this case, please contact Customer Service,  12.1
"Reflex Customer Service",  51
9. Once null balancing has concluded successfully, you can end the start
routine by pressing the "OK" button.
44 — English
 Note!
After successful conclusion of the start routine, you are in Stop mode. Do
not yet switch to Automatic mode.
9.3.1 Customer menu
9.3.1.1 Customer menu – overview
Use the Customer menu to correct or determine system-specific values. In the
course of initial commissioning, the factory settings must be adjusted for the
system-specific conditions.
 Note!
For a description of the operation,  9.1 "Operator panel",  42.
A three-digit PM code is assigned to the setting options
PM Description
code
001 Select the language
002 Set the time
003 Set the date
Execute null balancing
–
–
005 Set the P
minimum operating pressure for the controller",  39.
Degassing >
012 •
013 •
Make-up >
023 •
024 •
027 •
028 •
029 •
030 •
007 Maintenance interval... months
008 Floating contact
•
015 Change remote data "Yes/No"
Fault memory > History of all messages
Parameter memory > History of parameter input
Display settings > Brightness, screen saver
009 •
010 •
011 •
018 •
Information >
•
•
Servimat M/L — 25.07.2025
The primary tank must be empty
The system checks whether the signal from the level sensor
matches the selected primary tank.
minimum operating pressure,  7.2 "Determining the P0
0
Degassing programme
• No degassing
• Continuous degassing
• Interval degassing
Continuous degassing time
Maximum make-up time ...min
Maximum make-up cycles ... /2 h
With water meter "Yes/'No"
– If "Yes", continue with 028
– If "No", continue with 007
Make-up quantity (Reset) "Yes/No"
– If "Yes", reset to "0"
Maximum make-up quantity ... l
Softening "Yes/'No"
– If "Yes", continue with 031
– If "No", continue with 007
Message selection >
• Message selection: only messages marked with "√" are
output.
• All messages: All messages are output.
Brightness ... %
Screen saver brightness ... %
Screen saver delay ...min
Secure access "Yes/No"
Tank
• Volume
• Weight
• Diameter
Position motorized ball valve 1
Software version
