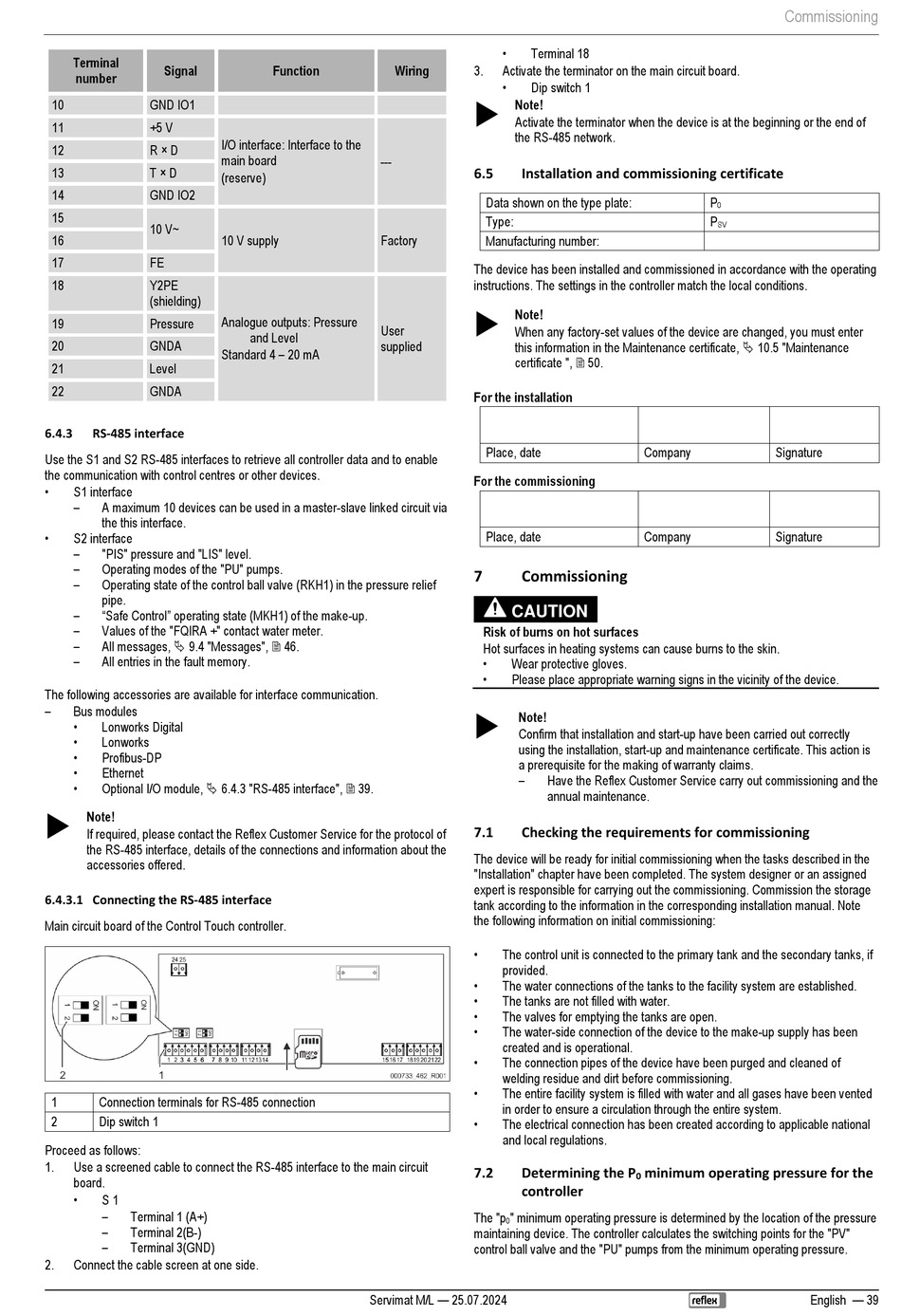

Terminal
Signal
number
10 GND IO1
11 +5 V
12 R × D
13 T × D
14 GND IO2
15
10 V~
16
17 FE
18 Y2PE
(shielding)
19 Pressure
20 GNDA
21 Level
22 GNDA
6.4.3 RS-485 interface
Use the S1 and S2 RS-485 interfaces to retrieve all controller data and to enable
the communication with control centres or other devices.
• S1 interface
– A maximum 10 devices can be used in a master-slave linked circuit via
the this interface.
• S2 interface
– "PIS" pressure and "LIS" level.
– Operating modes of the "PU" pumps.
– Operating state of the control ball valve (RKH1) in the pressure relief
pipe.
– "Safe Control" operating state (MKH1) of the make-up.
– Values of the "FQIRA +" contact water meter.
– All messages,  9.4 "Messages",  46.
– All entries in the fault memory.
The following accessories are available for interface communication.
– Bus modules
• Lonworks Digital
• Lonworks
• Profibus-DP
• Ethernet
• Optional I/O module,  6.4.3 "RS-485 interface",  39.
 Note!
If required, please contact the Reflex Customer Service for the protocol of
the RS-485 interface, details of the connections and information about the
accessories offered.
6.4.3.1 Connecting the RS-485 interface
Main circuit board of the Control Touch controller.
1 Connection terminals for RS-485 connection
2 Dip switch 1
Proceed as follows:
1. Use a screened cable to connect the RS-485 interface to the main circuit
board.
• S 1
– Terminal 1 (A+)
– Terminal 2(B-)
– Terminal 3(GND)
2. Connect the cable screen at one side.
Function
I/O interface: Interface to the
main board
---
(reserve)
10 V supply Factory
Analogue outputs: Pressure
User
and Level
supplied
Standard 4 – 20 mA
Servimat M/L — 25.07.2024
• Terminal 18
Wiring 3. Activate the terminator on the main circuit board.
• Dip switch 1
 Note!
Activate the terminator when the device is at the beginning or the end of
the RS-485 network.
6.5 Installation and commissioning certificate
Data shown on the type plate:
Type:
Manufacturing number:
The device has been installed and commissioned in accordance with the operating
instructions. The settings in the controller match the local conditions.
 Note!
When any factory-set values of the device are changed, you must enter
this information in the Maintenance certificate,  10.5 "Maintenance
certificate ",  50.
For the installation
Place, date
For the commissioning
Place, date
7 Commissioning
CAUTION
Risk of burns on hot surfaces
Hot surfaces in heating systems can cause burns to the skin.
• Wear protective gloves.
• Please place appropriate warning signs in the vicinity of the device.
 Note!
Confirm that installation and start-up have been carried out correctly
using the installation, start-up and maintenance certificate. This action is
a prerequisite for the making of warranty claims.
– Have the Reflex Customer Service carry out commissioning and the
annual maintenance.
7.1 Checking the requirements for commissioning
The device will be ready for initial commissioning when the tasks described in the
"Installation" chapter have been completed. The system designer or an assigned
expert is responsible for carrying out the commissioning. Commission the storage
tank according to the information in the corresponding installation manual. Note
the following information on initial commissioning:
• The control unit is connected to the primary tank and the secondary tanks, if
provided.
• The water connections of the tanks to the facility system are established.
• The tanks are not filled with water.
• The valves for emptying the tanks are open.
• The water-side connection of the device to the make-up supply has been
created and is operational.
• The connection pipes of the device have been purged and cleaned of
welding residue and dirt before commissioning.
• The entire facility system is filled with water and all gases have been vented
in order to ensure a circulation through the entire system.
• The electrical connection has been created according to applicable national
and local regulations.
7.2 Determining the P
controller
The "p " minimum operating pressure is determined by the location of the pressure
0
maintaining device. The controller calculates the switching points for the "PV"
control ball valve and the "PU" pumps from the minimum operating pressure.
Commissioning
P
0
P
SV
Company Signature
Company Signature
minimum operating pressure for the
0
