5 Description of the machine

5.1

Machine structure

1
2
3
4
5
6
7

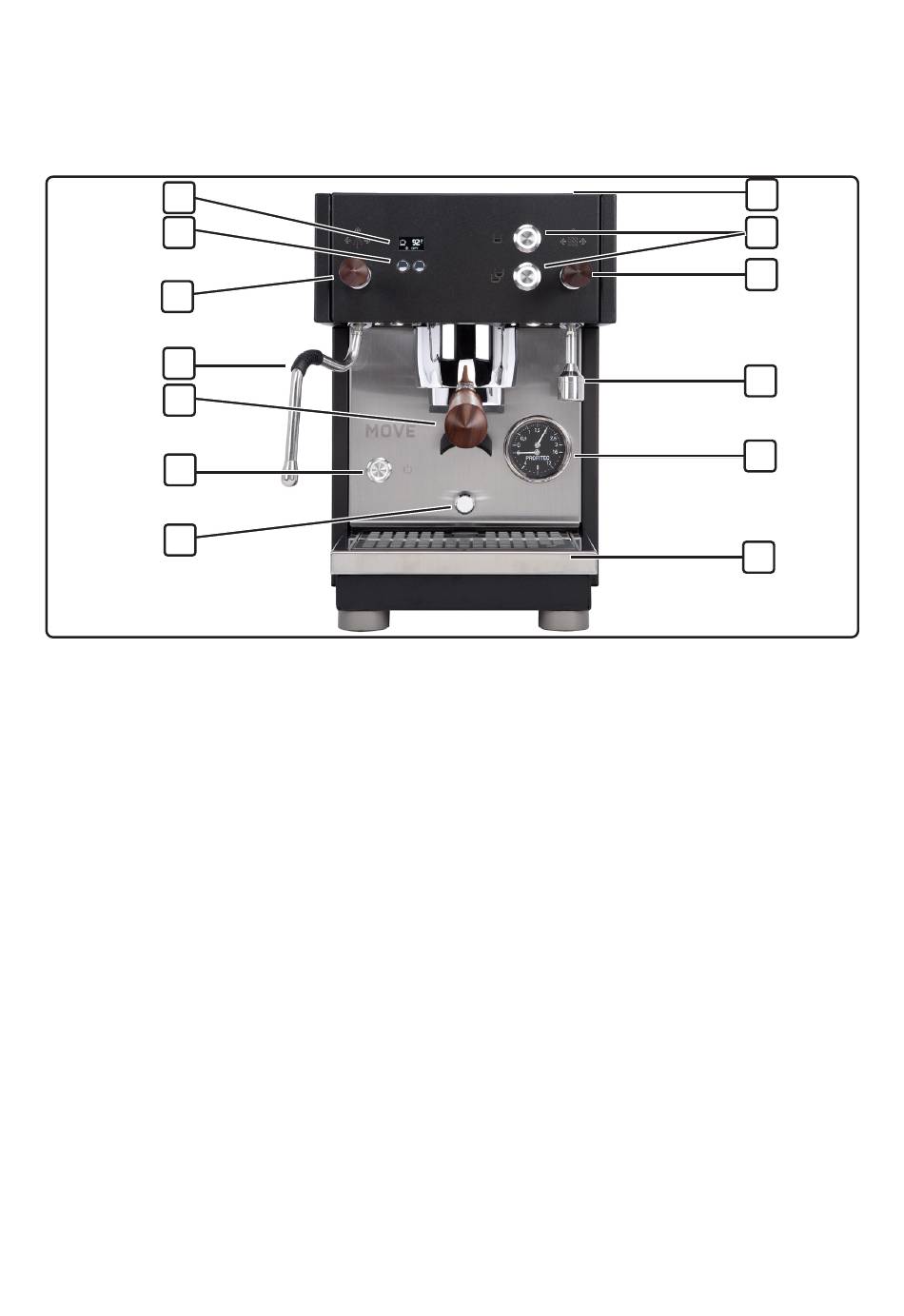

Fig. 1 Structure and components
1 Display for showing and configuring
settings
2 Display buttons
3 Steam tilt valve for drawing hot steam
4 Steam wand with rubber handle
5 Portafilter with silicone attachment
6 On/off button with power indicator (LED
ring)
7 Residual water outlet of brew group
MOVE_BA_V1.0
8 Drip tray with grid
9 Boiler and brew pressure gauge
10 Water wand
11 Water tilt valve for drawing hot water
12 Brew buttons
13 Top with water tank lid; water tank below
with water filter adapter for receiving a
water filter cartridge
13
12
11
10
9
8
EN - 83
