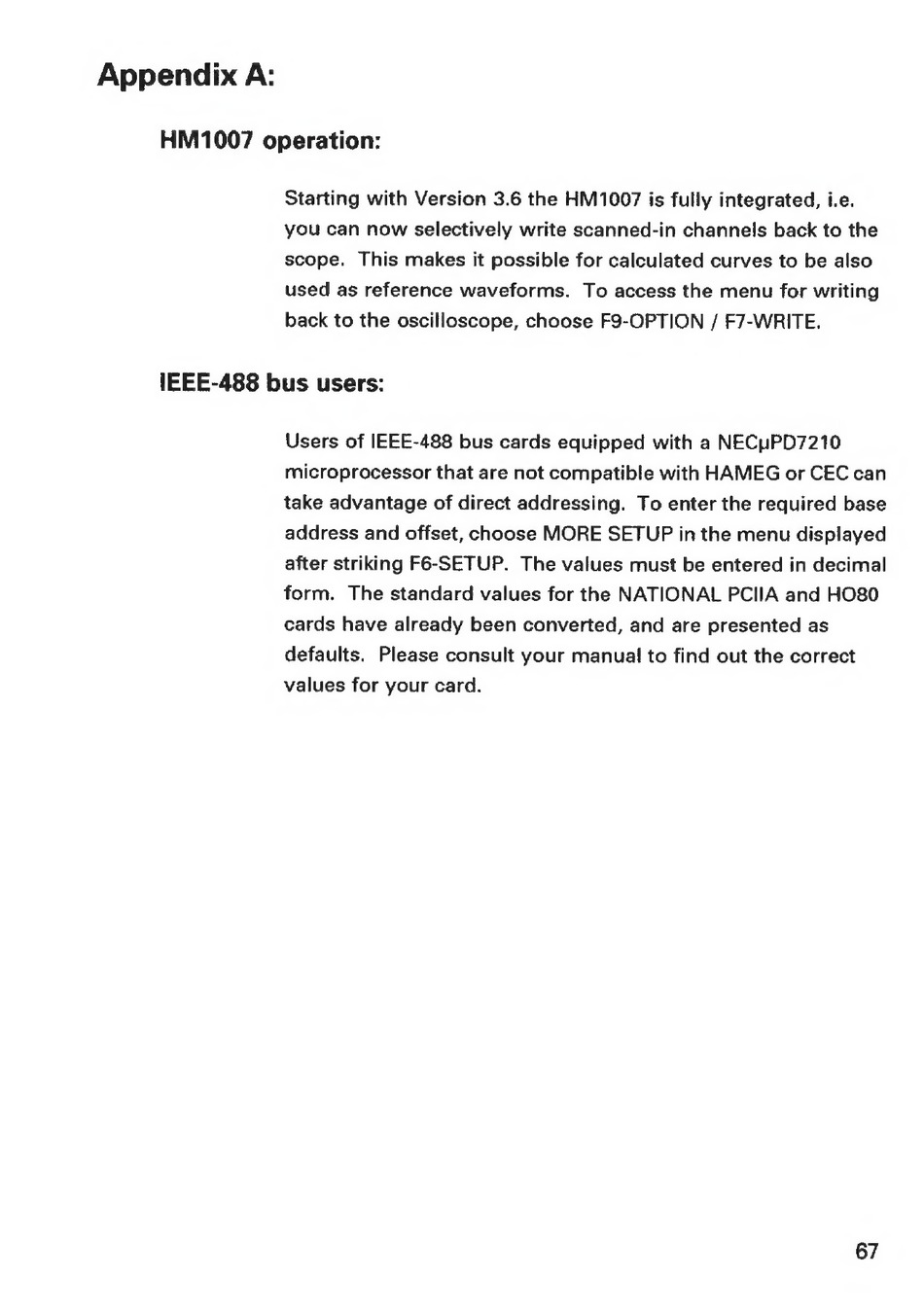

Appendix A:
HM1007 operation:
Starting with Version 3.6 the HM1007 is fully integrated, i.e.
you can now selectively write scanned-in channels back to the
scope.
This makes it possible for calculated curves to be also
used as reference waveforms.
To access the menu for writing
back to the oscilloscope, choose F9-OPTION / F7-WRITE.
1EEE-488 bus users:
Users of IEEE-488 bus cards equipped with
a NECuPD7210
microprocessor that are not compatible with HAMEG or CEC can
take advantage of direct addressing.
To enter the required base
address and offset, choose MORE SETUP in the menu displayed
after striking F6-SETUP.
The values must be entered in decimal
form. The standard values for the NATIONAL PCIIA and HO80
cards have already been converted, and are presented as
defaults.
Please consult your manual to find out the correct
values for your card.
67
