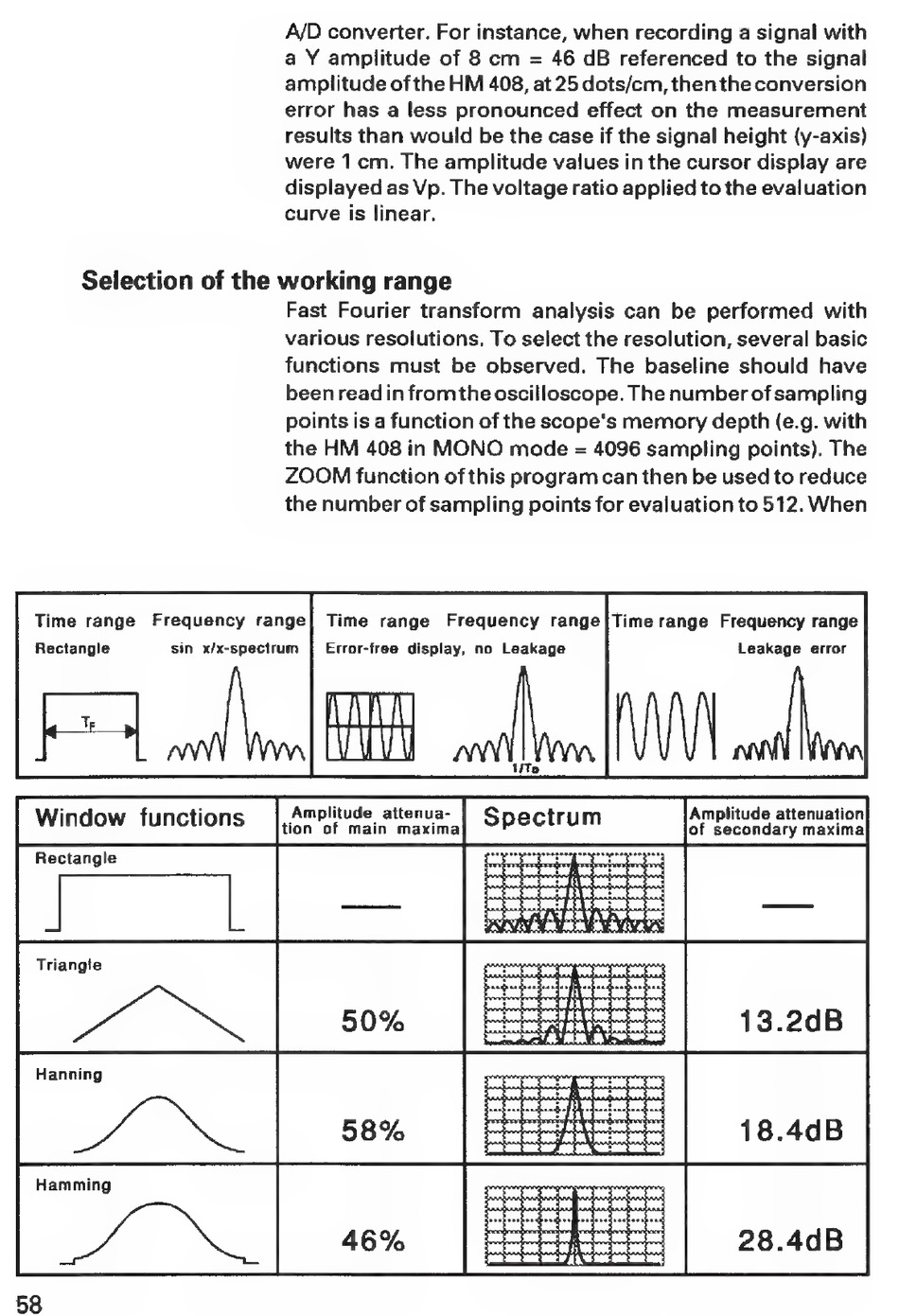

A/D converter. For instance, when recording a signal with
a Y amplitude of 8 cm = 46 dB referenced to the signal
amplitude of the HM 408, at 25 dots/cm, thenthe conversion
error has a less pronounced effect on the measurement
results than would be the case if the signal height (y-axis)
were 1cm. The amplitude values in the cursor display are
displayed as Vp. The voltage ratio applied to the evaluation
curve is linear.
Selection of the working range
Fast Fourier transform analysis can be performed with
various resolutions. To select the resolution, several basic
functions must
be observed.
The baseline should
have
been read in fromthe oscilloscope. The number of sampling
points is a function of the scope's memory depth (e.g. with
the HM 408 in MONO
mode = 4096 sampling points). The
ZOOM function of this program can then be used to reduce
the number of sampling points for evaluation to 512. When
Time range
Frequency
range|
Time
range
Frequency
range|Time range
Frequency range
Rectangle
sin x/x-spectrum
Error-frea
display,
no
Leakage
Leakage
error
Amplitude attenua-
Amplitude attenuation
Minow Tunalere Ena
Rae
2 Sona mang
=
