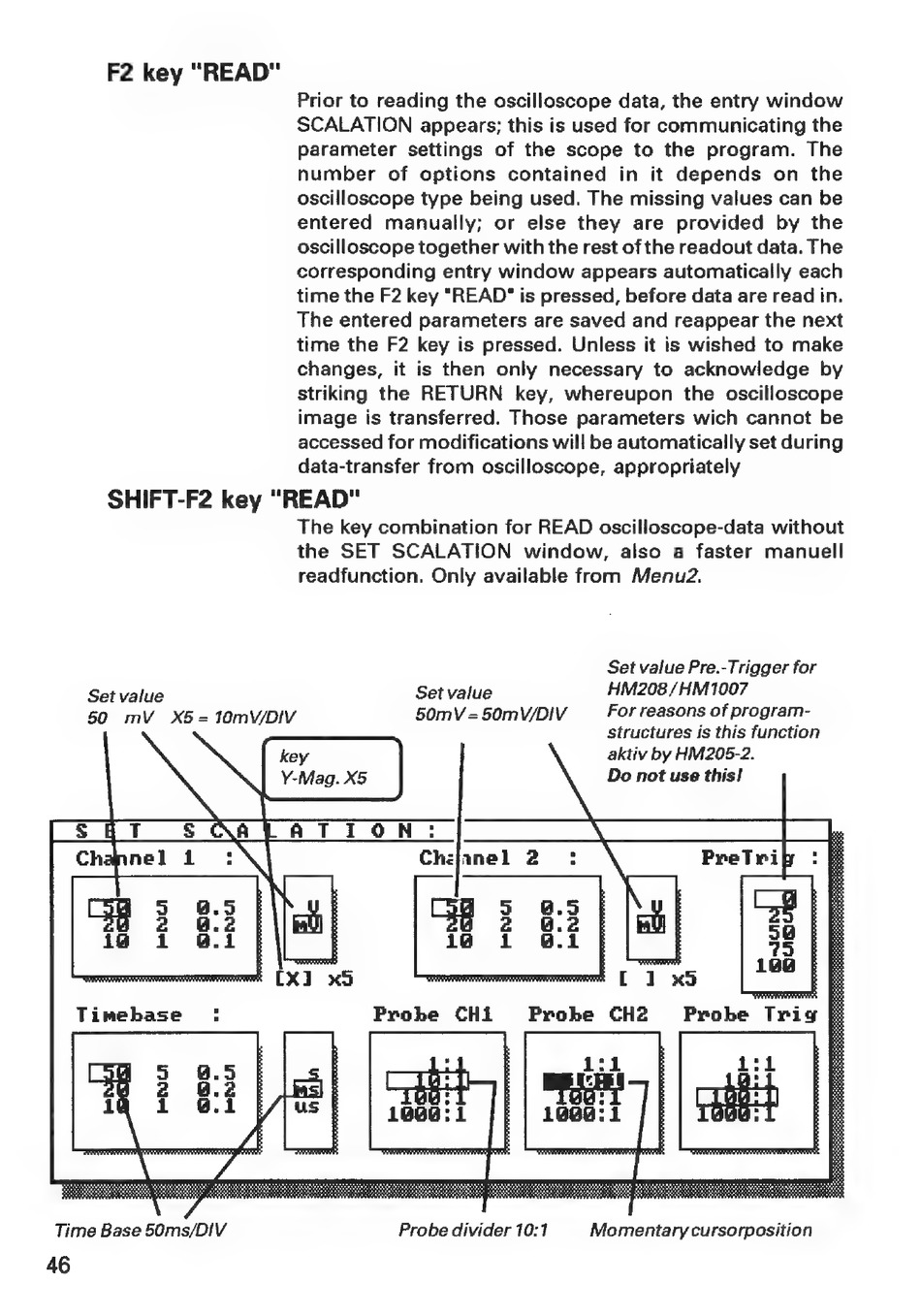

F2 key "READ"
Prior to reading the oscilloscope data, the entry window
SCALATION appears; this is used for communicating the
parameter settings of the scope to the program. The
number of options contained in it depends on the
oscilloscope type being used. The missing values can be
entered manually; or else they are provided by the
oscilloscope together with the rest of the readout data. The
corresponding entry window appears automatically each
time the F2 key "READ* is pressed, before data are read in.
The entered parameters are saved and reappear the next
time the F2 key is pressed. Unless it is wished to make
changes, it is then only necessary to acknowledge by
striking the RETURN key, whereupon the oscilloscope
image is transferred. Those parameters wich cannot be
accessed for modifications will be automatically set during
data-transfer from oscilloscope, appropriately
SHIFT-F2 key "READ"
The key combination for READ oscilloscope-data without
the SET SCALATION window, also a faster manuell
readfunction. Only available from Menu2.
Set value Pre.-Trigger for
TS RTF § AALATION:
Channel 1 :\I Chejanel 2
Probe CHL Probe CH2 £Probe Trig
Time Base 50ms/DIV Probe divider 10:1 Momentary cursorposition
46
