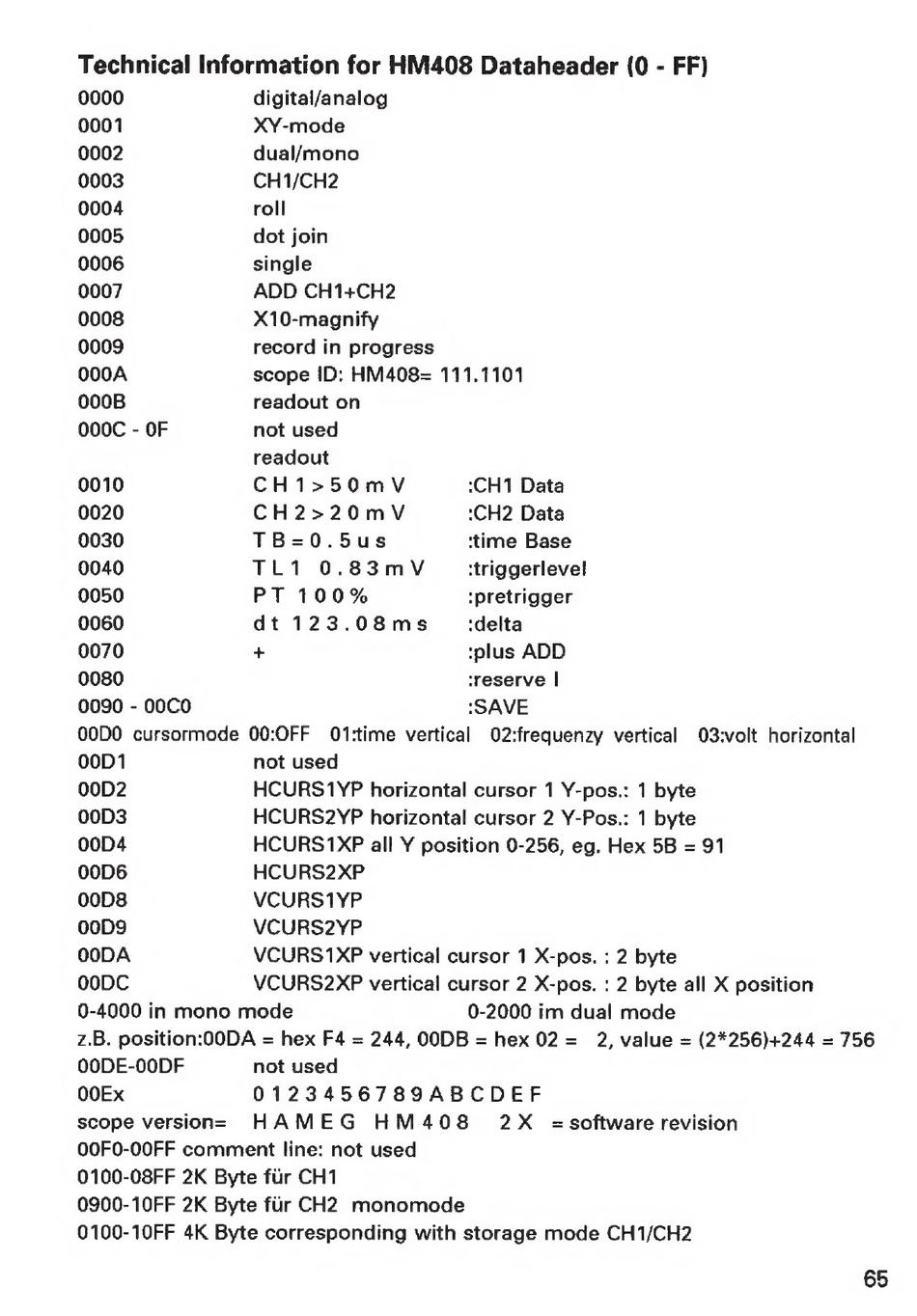

Technical Information for HM408 Dataheader (0 - FF)
0000
digital/analog
0001
XY-mode
0002
dual/mono
0003
CH1/CH2
0004
roll
0005
dot join
0006
single
0007
ADD CH1+CH2
0008
X10-magnify
0009
record in progress
000A
scope ID: HM408= 111.1101
000B
readout on
O0O00C - OF
not used
readout
0010
CH1>50mV
:CH1 Data
0020
CH2>20mV
:CH2 Data
0030
TB=0.5us
'time Base
0040
TL10.83mV
:triggerlevel
0050
PT
100%
:pretrigger
0060
dt 123.08ms
:delta
0070
+
:plus ADD
0080
'reserve |
0090 - 00CO
'SAVE
00D0 cursormode 00:0FF
01:time vertical
02:frequenzy vertical
03:volt horizontal
00D1
not used
00D2
HCURS1YP horizontal cursor 1 Y-pos.: 1 byte
00D3
HCURS2YP horizontal cursor 2 Y-Pos.: 1 byte
00D4
HCURS1XP all Y position 0-256, eg. Hex 5B = 91
o0oD6
HCURS2XP
ooDs
VCURS1YP
00D9
VCURS2YP
0ODA
VCURS1XP vertical cursor 1 X-pos. : 2 byte
0oDC
VCURS2XP vertical cursor 2 X-pos. : 2 byte all X position
0-4000 in mono mode
0-2000 im dual mode
z.B. position:OODA = hex F4 = 244, OODB = hex 02 =
2, value = (2*256)4+244 = 756
OODE-00DF
not used
OOEx
0123456789ABCDEF
scope version=
HAMEG
HM408
2X
=software revision
0OFO-00FF comment
line: not used
0100-08FF 2K Byte fur CH1
0900-10FF 2K Byte fur CH2
monomode
0100-10FF 4K Byte corresponding with storage mode CH1/CH2
65
